Overview

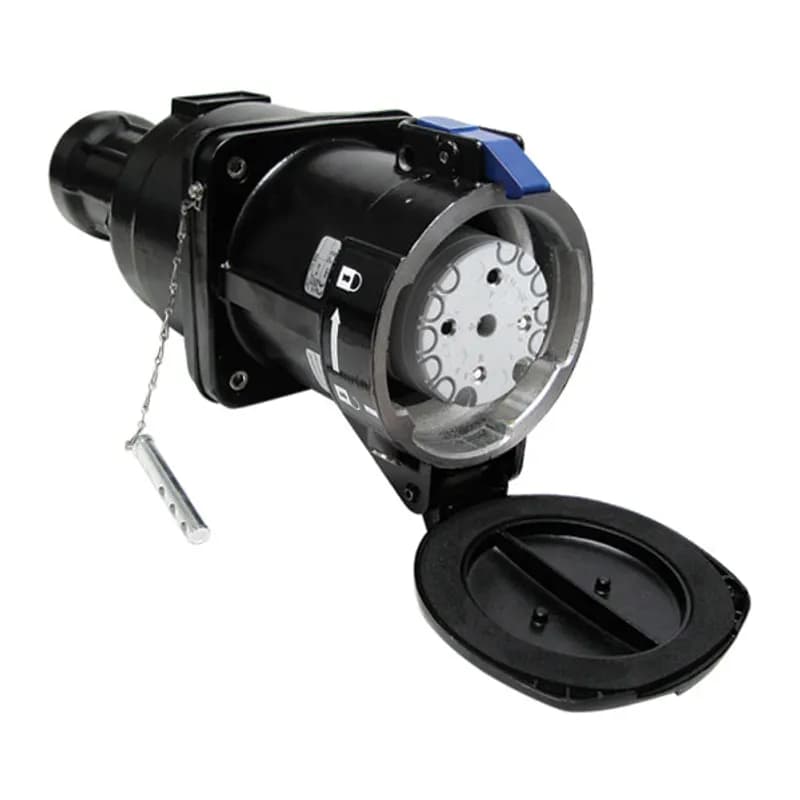

- Size 9 connector with black metal housing
- IP65 rated for dust and water resistance
- Rated 60A at 277VAC, 60Hz
- Supports cable diameters 0.470–0.830 inches
- M32 thread for secure mounting, 1P+N+G configuration
Specifications
Color | Black |
Connection Type | Screw Terminal |
Connection Type | 1 Pole + Neutral + Ground |
Current Rating | 60A |
Frequency | 60 Hz |
IP Rating | IP65 |
Material | Metal |
Mounting Type | M32 Thread |
Poles | 1P+N+G |
Series | DX6 |
Size | Size 9 |
Voltage Rating | 277VAC |
ACS380-040S-07A2-4
ACS380 AC Drive, 3-380-480V In, 3HP, 6A, Type OPEN, 1.5 overload, Integrated, HxWxD 6.69x2.76x7.52 in, Module
1SNK705010R0000
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
XT2NU3090BFF000XXX
C.BREAKER TMAX XT2N 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 90 I3=450...900 A
NNC75X75WH2
The NNC75X75WH2 Halogen-Free Wide Slot Wiring Duct is used to route, protect, and manage wires near sensitive electronic equipment and in environments where heat resistance or public safety is a concern. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 95 C (203 F). Halogen-Free, Polyphenylene Oxide (PPO). Mounting holes provided. 2.85" x 2.97" (72.4 mm x 75.4 mm) and 6.6' (2 m) long. Cover included. Color White. 5 pieces per package.
Frequently Asked Questions
Are hazardous location devices returnable?
Devices rated for hazardous locations are not returnable.
Are devices rated for hazardous locations returnable?
Devices rated for hazardous locations are not returnable.
What are the voltage and polarity for product 2666042?
Product 2666042 is rated for 480 V with a 2P+G polarity configuration.
Where can I find information on international configurations?
For international configurations (IEC/CE), visit meltric.com/international-catalog or contact Customer Service at 800-433-7642.
What type of device is product 2663045?
Product 2663045 is a 63 A DX6 series receptacle (female) rated for hazardous locations.
What NPT sizes are available for the metal wall box?
Metal wall boxes are available with NPT thread sizes of 1 inch, 1 1/4 inches, 1 1/2 inches, and 2 inches.
Which standards does this product comply with?
This product complies with ATEX and IECEx standards.
What is the wiring capacity for this device?
The wiring capacity is based on THHN wire sizes, ranging from a minimum of 6 AWG to a maximum of 1/0 AWG.
What is the operating temperature range?
The operating temperature range is a minimum of -15°F and a maximum of 140°F.
What are the environmental ratings for this product?
The product has environmental ratings of IP65/IP66.
How to Install the MELTRIC DX Series Plugs and Receptacles
This guide provides step-by-step instructions for safely installing and wiring MELTRIC DX Series plugs and receptacles in industrial applications.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Waterproof seals
- Disconnect power
Ensure all sources of power to the circuit are disconnected to eliminate the risk of electrical shock.
- Mount the receptacle
Secure the receptacle to the wall box or panel using the provided mounting screws. Ensure the pawl latch is oriented at the top for optimal operation.
- Prepare the wiring
Strip the individual wires according to the lengths specified in Table 2. Twist the strands of each conductor together to ensure a secure connection.
- Connect the conductors
Back out the terminal screws on the receptacle far enough to allow the conductors to pass. Insert the conductors fully into their respective terminals and tighten the terminal screws to the torque specified in Table 3.
- Assemble the plug
Insert the cable through the plug body and secure it using the strain relief. Ensure the cable sheath extends into the handle for proper gripping.
- Verify connections
Use a multimeter to verify the electrical continuity of the ground circuit and ensure all connections are secure.
- Test the installation
Reconnect power to the circuit and test the plug and receptacle connection to ensure proper operation.
- Secure protective covers
When not in use, ensure that the protective cap or lid is properly secured to prevent environmental contamination.
Frequently Asked Questions about Meltric
What certifications and standards do Meltric products comply with?
Meltric products are rigorously certified and comply with multiple critical industrial standards, including UL 2682, UL 508, UL 98, UL 1682, and CSA 22.2 No. 182.1. Their devices are UL and CSA listed with comprehensive ratings covering electrical endurance, short circuit withstand capabilities, motor circuit disconnect switching, and environmental protection standards like Type 4X/IP69/IP69K. Specific certifications include switch-rated plug and receptacle listings that exceed standard industry requirements.
What are the key features of Meltric products?
Meltric products feature advanced safety and reliability technologies, including spring-assisted terminals, push-button circuit disconnection, enclosed arc chambers, and integrated lockout-tagout capabilities. Key innovations include silver-nickel butt-style contacts, a quick-break mechanism that disconnects circuits in 15 milliseconds, and a self-cleaning contact system. Most devices offer modular construction, optional auxiliary contacts, and automatic watertightness, with robust casings made of fiberglass-reinforced thermoplastic polyamide that resist impact and harsh environments.
What environmental ratings do Meltric products have?
Meltric products feature robust environmental ratings, including Type 4X/IP69/IP69K certification, which also meets IP66/IP67 requirements. Their devices are rated to operate in temperatures from -40°F to 140°F, with specific IK ratings for impact resistance ranging from 08 to 10 Joules depending on the product material and model. Metal-cased products typically have higher impact resistance (IK10 with 20 Joules) compared to polymer-based products (IK09 with 10 Joules).
What industries and applications are Meltric products used for?
Meltric products are used across multiple heavy industrial and hazardous environments, including chemical plants, pharmaceutical facilities, oil and gas operations, grain silos, wood processing plants, plastics manufacturing, and wastewater treatment facilities. Their specialized plugs and receptacles are engineered for high-amperage equipment, wet/washdown environments, and locations with explosive gas or dust risks, with specific product lines like DSN and DS Series designed for different industrial applications ranging from 75-100 horsepower equipment.
What technical support does Meltric offer?
Meltric offers comprehensive technical support through multiple channels. Their Customer Service group provides immediate phone support at 800-433-7642, with trained representatives located at their manufacturing facility. Additionally, Meltric's engineering team offers specialized application support, custom design solutions, and can help integrate Meltric and third-party components into power distribution products.
What are the main product lines offered by Meltric?
Meltric offers a comprehensive range of industrial electrical plugs and receptacles across several key product lines: Switch-Rated Plugs & Receptacles (DSN and DS series from 20-200A), Multipin Connectors (6-37 pin, 2-50A), Standard Duty Plugs & Receptacles (DR, PN, DSDC series), High Ampacity Plugs & Receptacles (PF/PFQ, DR400, CS1000, SP series from 300-600A), and specialized options like RETTBOX electromagnetic self-ejection devices and PNHT high-temperature connectors.
What accessories are available for Meltric products?
Meltric offers a comprehensive range of accessories for their industrial plugs and receptacles, including handles, angle adapters, junction boxes, poly conduit entry boxes, finger drawplates, and protective/padlockable inlet/plug caps. These modular accessories allow customers to customize their electrical connection solutions, with options like 30° and 70° angles, metal and poly configurations, and additional features such as auxiliary contacts and locking mechanisms.
How are Meltric products typically installed?
Meltric products are typically installed by inserting the plug into the receptacle with a simple 30-degree clockwise rotation, which latches the connection and energizes the circuit. The installation process is designed for safety, featuring automatic watertight sealing, dead-front safety shutters, and spring-loaded butt-style contacts that ensure optimal electrical performance. For motor change-outs, qualified workers follow a specific procedure including verifying de-energization, applying lockout/tagout, and carefully inserting the plug into the receptacle.
What is Meltric's warranty policy?
Meltric offers a comprehensive 5-year warranty on electrical contacts for all its plug and receptacle products. This warranty reflects the company's confidence in the durability and high-quality design of their electrical components, which are engineered to provide superior performance and reliability in industrial applications.
