Contact for Pricing
Overview
- Universal voltage input: 12-240V AC/DC for flexible power compatibility
- Compact 17.5mm DIN-rail mount for space-efficient installations
- ON Delay with inhibit feature for pausing/resuming timing control
- 10A SPDT contact rating at 250V AC for reliable switching
- Adjustable time ranges from 0.1 seconds to 100 hours via rotary switch and potentiometer
1-1393143-3
Relay Accessories, Sockets & Clips, Printed Circuit Board, Phenolic, Printed Circuit Board, 6, Socket, Potter & Brumfield R101-1393143-6
Relay Accessories, Sockets & Clips, Solder, Polyester, Printed Circuit Board, 2, Socket, Potter & Brumfield R10
SCP102D24X-C02
IP67 SCP-X Extreme Environment Series Power Supply. Double Stacked, Output Power 2 x 100W, Output Voltage 24 Vdc, Output Current 7.6 A total, 3.8 A per pairFrequently Asked Questions
What is the contact rating of the TE-6026U?
The relay features a 10A SPDT contact rating at 250V AC, suitable for pilot duty and fractional HP loads.
What approvals does the TE-6026U have?
The TE-6026U is cURus and CE approved, meeting safety and compliance standards for industrial use.
What voltage range does the TE-6026U support?
The TE-6026U operates on a universal voltage input range of 12-240V AC/DC with a tolerance of -15% to +10%.
What are the operating temperature limits for the TE-6026U?
The relay operates reliably within a temperature range of -20° to 55° C (-4° to 131° F).
How is the timing controlled on the TE-6026U?
The timing is controlled via a rotary switch and potentiometer, offering ten adjustable ranges from 0.1 seconds to 100 hours.
What wire sizes can be used with the TE-6026U?
The relay supports solid or stranded wires ranging from 12 to 22 AWG for secure terminations.
Can the TE-6026U pause timing during operation?
Yes, the TE-6026U includes an inhibit feature where closing the control contact pauses the timing, resuming only after the contact reopens.
What is the reset time for the TE-6026U?
The maximum reset time for the TE-6026U is 150 milliseconds.
How to Install the TE-6026U Time Delay Relay
This guide provides step-by-step instructions for installing and configuring the TE-6026U Time Delay Relay, ensuring proper wiring and setup for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, 8 or 11 pin octal socket
- Mount the octal socket
Install the appropriate 8 or 11 pin octal socket in a suitable enclosure. Ensure it is securely fastened and positioned for easy access.
- Wire the socket

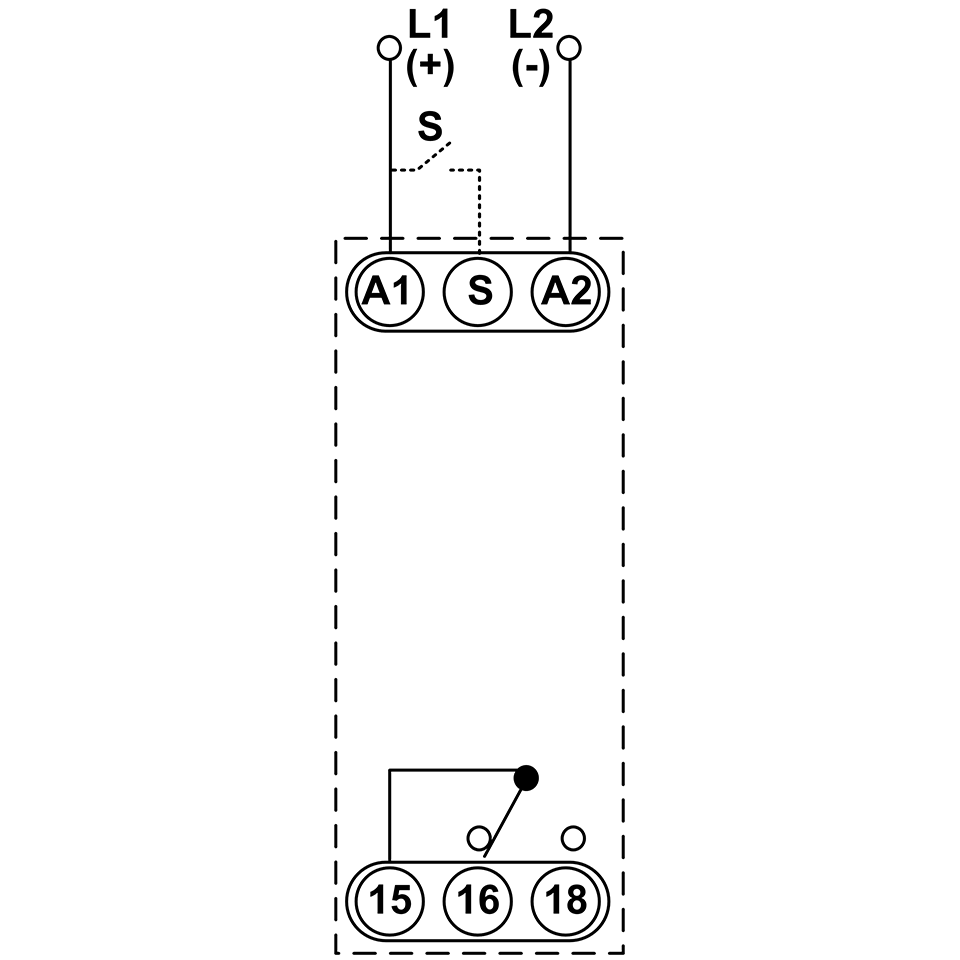

Connect the socket according to the wiring diagram on the side of the time delay relay. Match the terminal numbers on the socket with those shown on the diagram, using #12-20 solid or stranded copper wires.
- Insert the time delay relay
Plug the time delay relay into the socket, ensuring the key on the center post is oriented correctly. Avoid rocking the relay excessively to prevent damage.
- Set the function
Select the desired function using the rotary switch on the relay. Refer to the Select Function Chart to choose the appropriate setting.
- Configure time range and delay
Choose one of the 16 time ranges from the Timing Range Chart and set the rotary switch accordingly. Adjust the time delay by turning the potentiometer knob on the top of the unit.
- Verify connections
Before powering on, double-check all wiring connections against the wiring diagram to ensure accuracy and safety.
- Power on the unit
Restore power to the system and monitor the relay for proper operation. If issues arise, recheck connections and settings.
