Macromatic

TE-6041U

Name: Macromatic TE-6041U THR-1 Time Delay Relay, 12-240V AC/DC, DIN-rail mount, 10A SPDT.
Brand: Macromatic
SKU: TE-6041U
Availability: InStock

Documents & Media

Installation Instructions

Contact for Pricing

Overview

The Macromatic TE-6041U (SKU: TE-6041U) is a THR-1 series time delay relay designed for precise timing control in industrial automation. This single-function relay supports ON DELAY and ON DELAY WITH INHIBIT modes, allowing flexible operational control. It features a universal input voltage range of 12-240V AC/DC and ten selectable timing ranges from 0.1 seconds to 100 hours. The relay includes a 10A SPDT output with silver alloy contacts, rated for 250V AC. Its compact 17.5 mm enclosure is DIN-rail mountable, making it ideal for space-constrained control panels. The device offers high repeat accuracy (±0.2%), low burden (2 VA / 1.5 W), and operates reliably in temperatures from -20°C to 55°C. Approved for cURus and CE, it meets industrial standards for durability and performance.

Universal voltage input: 12-240V AC/DC
Ten selectable timing ranges: 0.1s to 100 hours
10A SPDT relay output with silver alloy contacts
ON DELAY and ON DELAY WITH INHIBIT functions

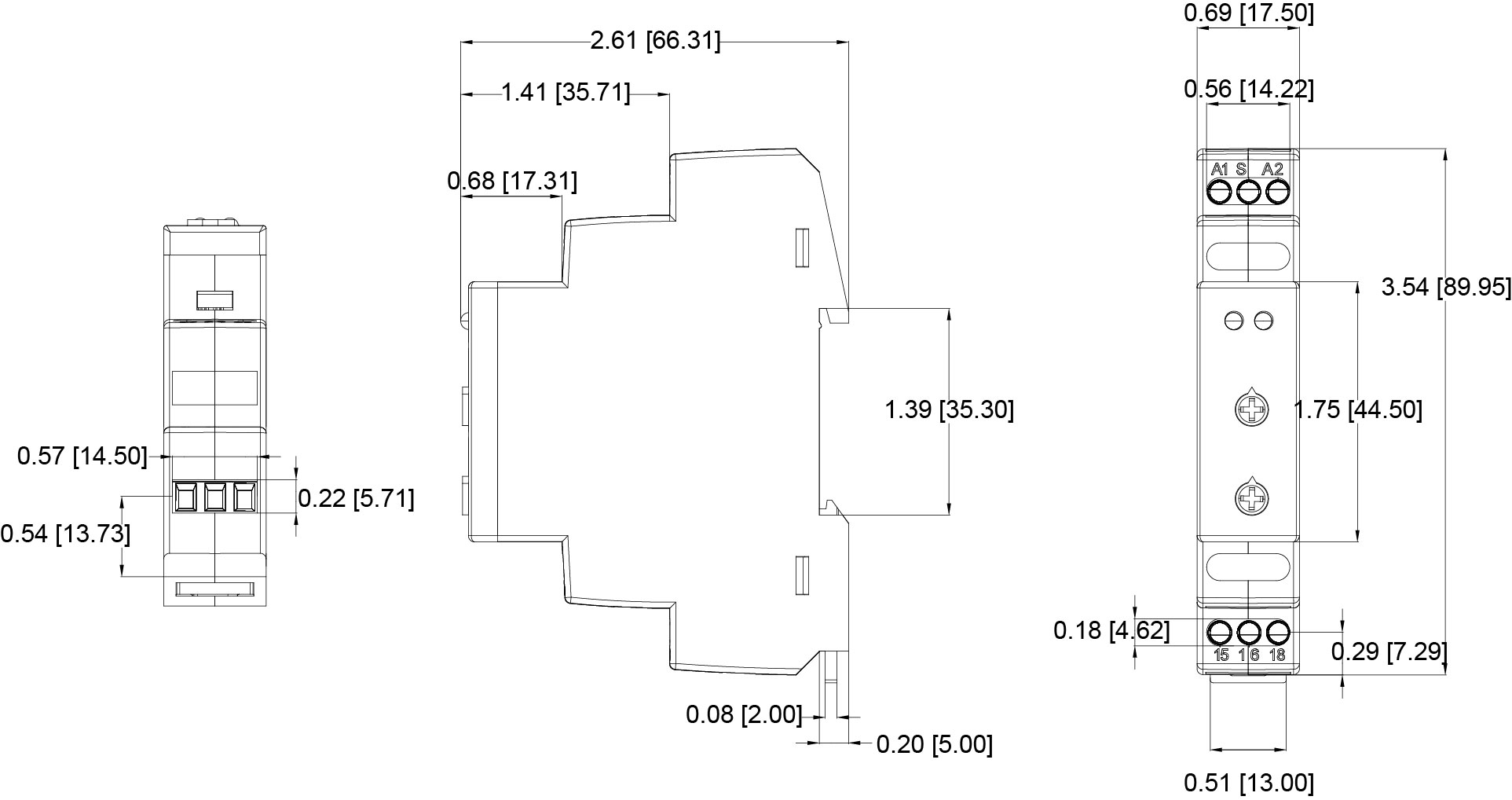

Compact 17.5mm DIN-rail mountable enclosure

Specifications

Mounting Type	DIN-Rail
Mounting Type	35 mm DIN-rail
Series	TE-6 Series
Series	TE-6
Size	17.5 mm
Voltage Rating	12-240 V AC/DC

1-1393143-3

Relay Accessories, Sockets & Clips, Printed Circuit Board, Phenolic, Printed Circuit Board, 6, Socket, Potter & Brumfield R10

1-1393143-6

Relay Accessories, Sockets & Clips, Solder, Polyester, Printed Circuit Board, 2, Socket, Potter & Brumfield R10

RK926011-BC

RTXP 18

6896057-1

RTXD Extractor Tool

PS-60

Power supply for DIN-rail

SCP102D24X-C02

IP67 SCP-X Extreme Environment Series Power Supply. Double Stacked, Output Power 2 x 100W, Output Voltage 24 Vdc, Output Current 7.6 A total, 3.8 A per pair

TE-8812U

THR-1 Time Delay Relays TE-8812U

RTW17-BA02U003SE05

TIMING RELAY RTW17-BA02U003SE05

TSB434

The TSB Series is a totally solid-state, delay-on-break timing module. The TSB series is available with a fixed, external, or onboard adjustable time delay. Time delays from 0.05 to 600 seconds, in 4 standard ranges, cover over 90 % of all OEM and commercial appliance timing applications. The repeat accuracy is ±2 %. Operating voltages of 24, 120, or 230 V ac are available. The TSB’s 1 A steady state, 10 A rated, solid-state output is perfect for direct control of solenoids, contactors, relays, lamps, buzzers, and small heaters. The TSB series can be surface mounted with a single screw, or snapped on a 35 mm DIN rail using the P1023-20 adapter. Operation (Delay-on-Break): Input voltage must be applied before and during timing. Upon closure of the initiate switch, the output energizes. The time delay begins when the initiate switch opens. The output remains energized during timing. At the end of the time delay, the output de-energizes. The output will energize if the initiate switch is closed when input voltage is applied. Reset: Reclosing the initiate switch during timing resets the time delay. Loss of input voltage resets the output and the time delay.

1SVR500100R0100

The CT-ERD.22 is a single-function electronic time relay from the CT-D timer range. It provides an ON-delay (delay on make) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A.

Frequently Asked Questions

What voltage range does the TE-6041U support?

The TE-6041U operates on a universal voltage input of 12-240V AC/DC with a tolerance of -15% to +10%.

How many timing ranges are selectable?

The TE-6041U offers ten selectable timing ranges from 0.1 seconds to 100 hours.

What is the relay output rating?

The relay output is rated 10A at 250V AC with silver alloy contacts.

What is the operating temperature range?

The TE-6041U operates reliably in temperatures from -20°C to 55°C (-4°F to 131°F).

Does the TE-6041U support DIN-rail mounting?

Yes, the TE-6041U is designed for mounting on a standard 35mm DIN-rail.

What is the burden of the TE-6041U?

The maximum burden is 2 VA / 1.5 W.

What approvals does the TE-6041U have?

The TE-6041U is approved for cURus and CE.

What is the repeat accuracy of the TE-6041U?

The repeat accuracy is ±0.2%.

What wire sizes can be used with the TE-6041U?

The TE-6041U supports solid or stranded wire from 12 to 22 AWG.

Can the timing be paused during operation?

Yes, the TE-6041U supports an inhibit function where closing the control contact pauses timing.

How to Install the TE-6041U Time Delay Relay

This guide provides step-by-step instructions for installing and configuring the TE-6041U Time Delay Relay, ensuring proper wiring and setup for optimal performance.

Estimated time: 45m

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Terminal connectors, Copper or copper-clad aluminum wires (#12-20)

Mount the octal socket
Install the appropriate 8 or 11 pin octal socket in a suitable enclosure, ensuring it is securely fastened.
Wire the socket
Connect the wires to the socket according to the wiring diagram located on the side of the time delay relay. Match the terminal numbers on the socket to the wiring diagram.
Insert the time delay relay
Plug the time delay relay into the socket, ensuring the key on the center post is oriented correctly. Avoid rocking the relay excessively to prevent damage.
Set the function
Select the desired function using the eight-position rotary switch on the relay. Ensure power is off before making this adjustment.
Set the time range and delay
Choose one of the 16 time ranges using the rotary switch and adjust the time delay by rotating the potentiometer knob on the top of the unit.
Verify connections
Use a multimeter to check all connections against the wiring diagram to ensure proper installation before powering on the unit.
