Macromatic COKP01A62 Overcurrent AC only
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Monitors AC over-current in the 0.1A to 1A range.
- Adjustable pick-up and drop-out current settings.
- Adjustable time delay (0.1-10 seconds) to prevent nuisance tripping.
- Plug-in enclosure requires an 8-pin octal socket.
- 10A @ 240V AC / 30V DC output contacts.

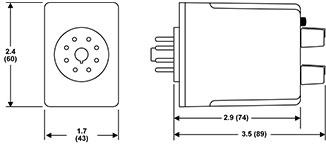

Specifications
Connection Type | Plug-in |
Connection Type | Plug-in (8-pin octal socket) |
Current Rating | 0.1-1A |
Frequency | AC |
Mounting Type | Plug-in (8-pin octal socket) |
Mounting Type | 8-pin octal socket |
Series | COKP |
How to Install the COKP01A62 Current Sensing Relay
This guide provides step-by-step instructions for installing and wiring the COKP01A62 Current Sensing Relay in a suitable enclosure.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, 8 pin octal socket (Macromatic 70169-D or Custom Connector OT08-PC), Terminal connectors
- Mount the octal socket
Install the 8 pin octal socket in a suitable enclosure. Ensure it is securely fastened and positioned for easy access.
- Connect the wiring
Using #12-22 solid or stranded copper conductors, connect the wiring to the octal socket. Match the terminal numbers on the socket to the wiring diagram provided on the relay.
- Verify connections
Before powering on, double-check all connections to ensure they match the wiring diagram. Use a multimeter to verify continuity and proper connections.
- Power on and configure
Once all connections are verified, restore power to the relay. Adjust the pick-up current setting as needed within the specified range.
- Calibrate the relay
Set the drop-out setting between 50-95% of the selected pick-up setting. Test the relay operation to ensure it energizes and de-energizes correctly based on the monitored AC current.
