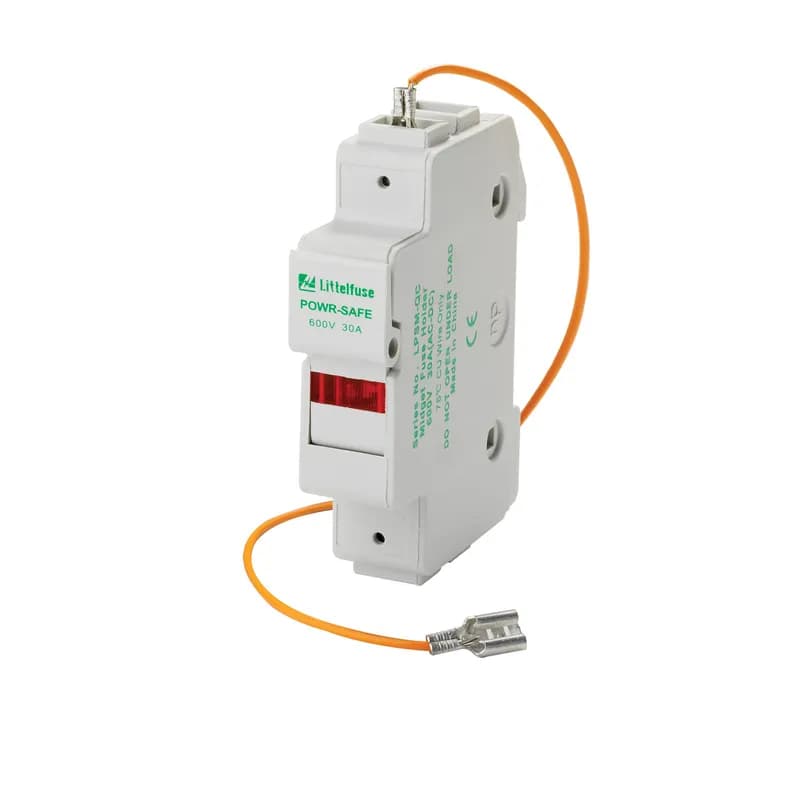

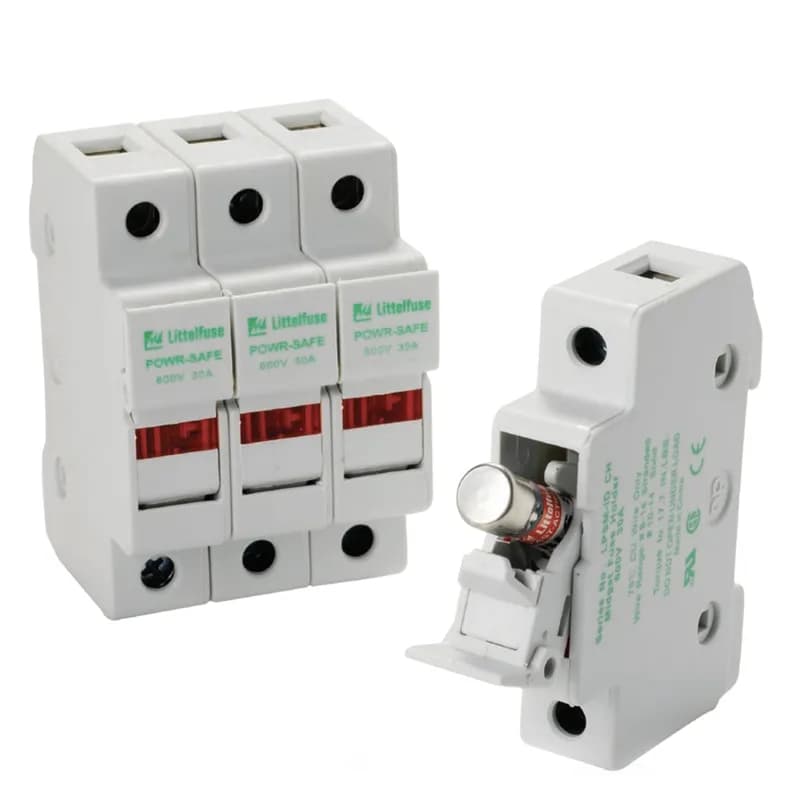

Littelfuse LPSM0002ZQCID - LPSM002QCID is a quick-connect, indicating midget fuse dead front fuse holder with a maximum ampere rating of 30.
Littelfuse

LPSM0002ZQCID

Alternate Item Number: LPSM0002ZQCID

UPC: 079458182996

Documents & Media
BrochureTechnical BulletinSpecification Sheet

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The Littelfuse LPSM0002ZQCID is a robust and reliable quick-connect, indicating midget fuse holder engineered for critical circuit protection in demanding industrial environments. Designed with a dead front configuration, this fuse holder prioritizes operational safety by minimizing the risk of accidental contact with live fuse terminals, a crucial consideration in high-traffic industrial settings. Its maximum ampere rating of 30A makes it suitable for a wide array of applications where dependable overcurrent protection is paramount. As a key component within the Littelfuse LPSM series, the LPSM0002ZQCID exemplifies the manufacturer's commitment to quality and performance. Littelfuse is a globally recognized leader in circuit protection, and this fuse holder upholds that reputation through its durable construction and precise functionality. The "indicating" feature is a significant advantage, providing immediate visual confirmation of a blown fuse. This dramatically simplifies troubleshooting and maintenance, allowing technicians to quickly identify and replace faulty fuses, thereby reducing costly downtime and improving overall operational efficiency. The quick-connect terminals on the LPSM0002ZQCID are designed for rapid and secure installation. This feature is particularly beneficial in control panel manufacturing and system integration, where speed and ease of assembly are essential. The secure connection ensures reliable electrical contact, preventing intermittent issues that can plague less robust solutions. The dead front design, a hallmark of safety-conscious electrical component design, ensures that personnel are protected from electrical hazards during fuse inspection or replacement. Typical applications for the Littelfuse LPSM0002ZQCID include, but are not limited to: * **Industrial Control Panels:** Protecting sensitive control circuitry, PLCs, and motor drives. * **Power Distribution Systems:** Safeguarding branch circuits and equipment in manufacturing plants and facilities. * **Machinery and Equipment:** Providing essential overcurrent protection for various industrial machines. * **Automation Systems:** Ensuring the reliable operation of automated processes by protecting their electrical components. * **HVAC and Building Automation:** Securing electrical circuits in commercial and industrial building management systems. When selecting a fuse holder, professionals consider factors such as current and voltage ratings, termination type, safety features, and manufacturer reliability. The LPSM0002ZQCID excels in these areas, offering a 30A rating, convenient quick-connect terminals, a vital dead front safety feature, and the assurance of the Littelfuse brand. Its compact midget fuse form factor also allows for space-saving integration into densely populated electrical enclosures. Choosing the LPSM0002ZQCID means investing in a high-quality, safe, and efficient solution for your critical circuit protection needs, ensuring the longevity and reliability of your industrial electrical systems.
  • 30A Maximum Ampere Rating for robust circuit protection.
  • Quick-Connect Terminals for fast and secure installation.
  • Indicating Feature for immediate visual fuse status confirmation.
  • Dead Front Design enhances user safety by preventing accidental contact.
  • Durable construction from Littelfuse, a trusted leader in circuit protection.

Specifications

Brand Name
Littelfuse
Connection Type
Quick-Connect
Current Rating
30 A
Series
LPSM
Special Features
Indicating and non-indicating options available
Standard
UL Listed CSA
Sub Brand
LPSM POWR-SAFE Holder
Type
Dead Front Midget Holder
