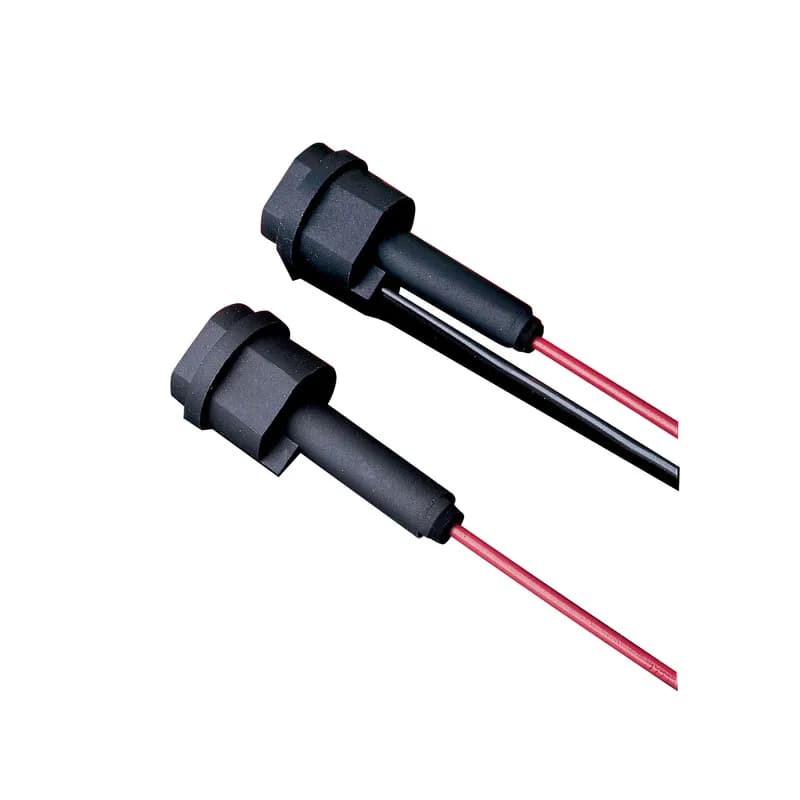

Littelfuse LHR0000U - Used as in-line protection for fluorescent fixtures, the Littelfuse LGR and LMF series fuses and LHR holder offer increased safety and reliability to lighting systems. On a 277 volt system, a fault occurring in an un-fused fixture could take out the entire branch circuit affecting up to 100 fixtures. This could cause safety problems as well as shut down operations. By individually fusing fixtures, these problems will be avoided. The added benefits of this is the ability to quickly identify the problem fixture and reduce the repair time. Fuse holders are rated up to 10 amperes at 300 volts and are equipped with 7” 18 AWG leads. Order part number LHR 000 for two leads, and part number LHR 001 for one lead and one terminal for insertion of 18 AWG ballast lead.
Littelfuse

LHR0000U

Alternate Item Number: 0LHR0000U

UPC: 079458029406

Documents & Media
BrochureTechnical BulletinSpecification Sheet

Contact for Pricing

Minimum Qty: 500

Multiplier: 500

*Contact for lower quantities*

Overview

The Littelfuse LHR0000U fuse holder is designed to provide reliable in-line protection for fluorescent lighting fixtures, enhancing safety and operational efficiency. By individually fusing each fixture, this holder prevents cascading failures that could disrupt an entire branch circuit, potentially affecting up to 100 fixtures. This not only minimizes downtime but also simplifies troubleshooting by isolating faulty fixtures. Rated for up to 10 amperes at 300 volts, the LHR0000U is equipped with 7" 18 AWG leads, ensuring secure connections. Available in two configurations—part number LHR 000 for two leads and LHR 001 for one lead and one terminal—the holder accommodates various installation needs. By integrating the Littelfuse LHR0000U into your lighting system, you can enhance safety, reduce repair time, and maintain uninterrupted operations.
  • Rated for up to 10 amperes at 300 volts for reliable performance in fluorescent lighting systems.
  • Prevents cascading failures by individually fusing fixtures, protecting up to 100 fixtures per branch circuit.
  • Equipped with 7" 18 AWG leads for secure and flexible connections.
  • Available in two configurations: LHR 000 (two leads) and LHR 001 (one lead and one terminal).
  • Simplifies troubleshooting by isolating faulty fixtures, reducing repair time and downtime.

Specifications

Brand Name
Littelfuse
Connection Type
18 AWG Leads
Current Rating
10 A
Mounting Type
In-Line
Series
LGR and LMF series
Special Features
Equipped with 7in 18 AWG leads
Standard
UL Recognized, CSA Certified
Sub Brand
LHR Fuseholder Series
Type
Fuseholders
Voltage Rating
300 V
