Littelfuse LFR25100-1C - 250V CLASS R BLOCK 100A 1 POLE

Littelfuse LFR25100-1C 250V CLASS R BLOCK 100A 1 POLE

UPC: 079458941234


Documents & Media
Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Littelfuse LFR25100-1C is a single-pole Class R block fuse rated for 250 volts and 100 amps. Designed for industrial electrical systems, it provides overcurrent protection for sensitive electronic components and machinery. The block connection type ensures easy installation and maintenance. Manufactured in the US by Littelfuse, a leader in circuit protection, this fuse meets Class R fuse standards. Ideal for applications requiring reliable, high-current interruption.
  • Rated 250V and 100A for industrial overcurrent protection
  • Single-pole Class R block fuse design
  • Block connection type for straightforward installation
  • Manufactured in the US by Littelfuse
  • Meets stringent Class R fuse standards

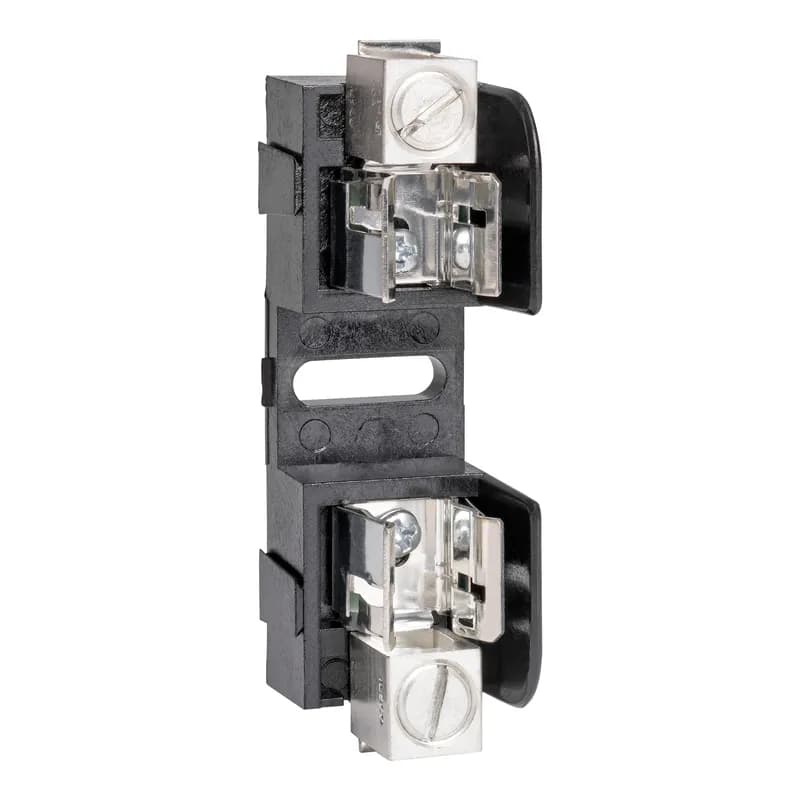

Fuse Block 250VAC 250VDC Class R 100A 1-Pole Box with Reinforced Clip

21036R

Fuse Block 250VAC 250VDC Class R 100A 1-Pole Box with Reinforced Clip
250V CLASS H BLOCK 100A 1 POLE

LFH25100-1C

250V CLASS H BLOCK 100A 1 POLE
DR4/8 SF DIN2

1SNA110368R1200

DR4/8 SF DIN2
PLASTIC COVER FOR DISTRIBUTION BLOCKS

LPBC1441

PLASTIC COVER FOR DISTRIBUTION BLOCKS
SPLICER BLOCK WIRE TERMINAL

WCL010

SPLICER BLOCK WIRE TERMINAL
250V CLASS R BLOCK 100A 3 POLE

LFR25100-3C

250V CLASS R BLOCK 100A 3 POLE
PLASTIC COVER FOR DISTRIBUTION BLOCKS

LPBC1443

PLASTIC COVER FOR DISTRIBUTION BLOCKS
SPLICER BLOCK WIRE TERMINAL

WCL011

SPLICER BLOCK WIRE TERMINAL

Frequently Asked Questions

What voltage and ampere ratings are available for LF Series fuse blocks?

LF Series fuse blocks are available in 250 V and 600 V ratings, with ampere ratings ranging from 0-600 A.

What are the withstand ratings for Class H and Class R fuse blocks?

Class H fuse blocks have a withstand rating of 10 kA RMS SYM, while Class R blocks have a 200 kA RMS SYM rating.

What is the flammability rating of the fuse block base material?

The base material has a flammability rating of UL94 V-0.

What approvals do these fuse blocks have?

They are UL Listed (File: E14721) and CSA Certified (File: LR7316).

Are these fuse blocks RoHS compliant?

Yes, the fuse blocks are RoHS Compliant and Lead (Pb) Free.

What is the purpose of the rejection feature in Class R fuse blocks?

The rejection feature in Class R blocks only allows Class R fuses to be inserted, preventing the use of incompatible Class H fuses.

What is the leakage current for these fuse blocks?

The leakage current is less than 0.6 mA at 600 V.

What materials are used for the fuse block components?

The base is thermoplastic, fuse clips are tin-plated copper alloy, box lugs are aluminum, and screws/pressure plates are zinc-plated steel.

What is the recommended torque for the 100A Class R box lug screws?

The recommended torque for 100A Class R box lug screws is 13.6 N-m (120 in-lbs) for pressure plate screws and 4.0 N-m (35 in-lbs) for box lug screws.

What wire range is compatible with the 60A Class R fuse blocks?

The 60A Class R fuse blocks are compatible with wire ranges of 2-4 AWG and 6-14 AWG for CU-AL wire types.
