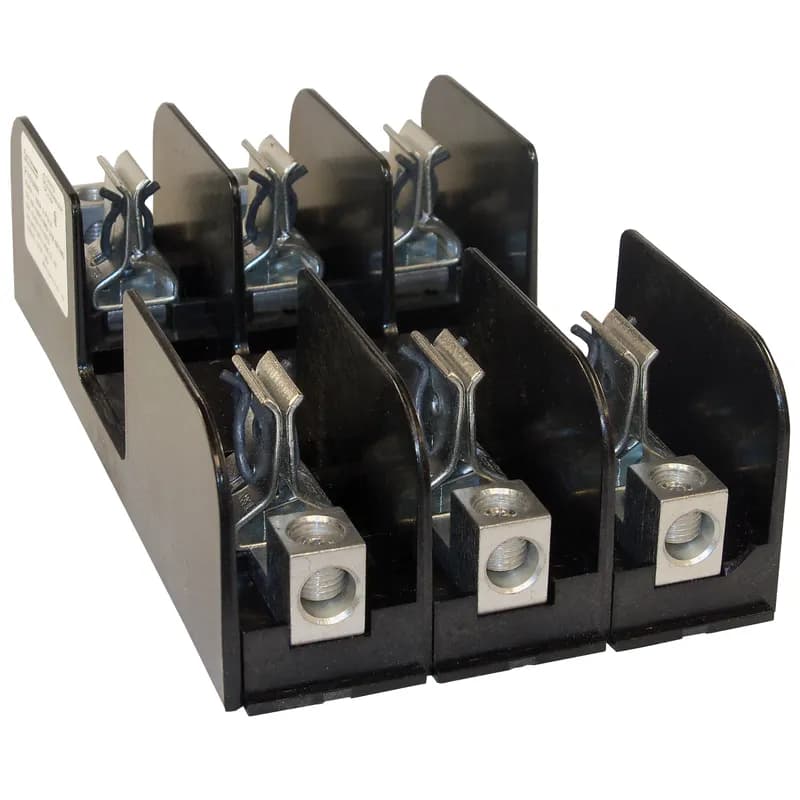

Littelfuse LFH25100-3C 250V CLASS H BLOCK 100A 3 POLE

The LF Series fuse blocks have voltage ratings of 250 V and 600 V.

The ampere ratings for the LF Series fuse blocks range from 0 to 600 A.

Class H fuse blocks have a withstand rating of 10 kA RMS SYM, while Class R blocks have a rating of 200 kA RMS SYM.

The fuse blocks are UL Listed (File: E14721) and CSA Certified (File: LR7316).

The recommended torque for the 100 Ampere fuse block box lugs is 13.6 N-m (120 in-lbs) for pressure plate screws and 4.0 N-m (35 in-lbs) for box lug screws.

The 60 Ampere, 600 Volt Class R fuse block supports a wire range of 2-4 AWG for box lugs and 6-14 AWG for pressure plates, using CU-AL wire.

The base temperature rating for 250 V Class H/K5 and R fuse blocks is 125 ˚C for 30A and 60A, and 130 ˚C for 100A and above.

The base temperature rating for 600 V Class H/K5 and R fuse blocks is 130 ˚C across all ampere ratings.

Class H and Class R fuse blocks are dimensionally the same, but Class R blocks have a rejection feature that only allows Class R fuses to be inserted.

The leakage current is less than 0.6 mA at 600 V.
