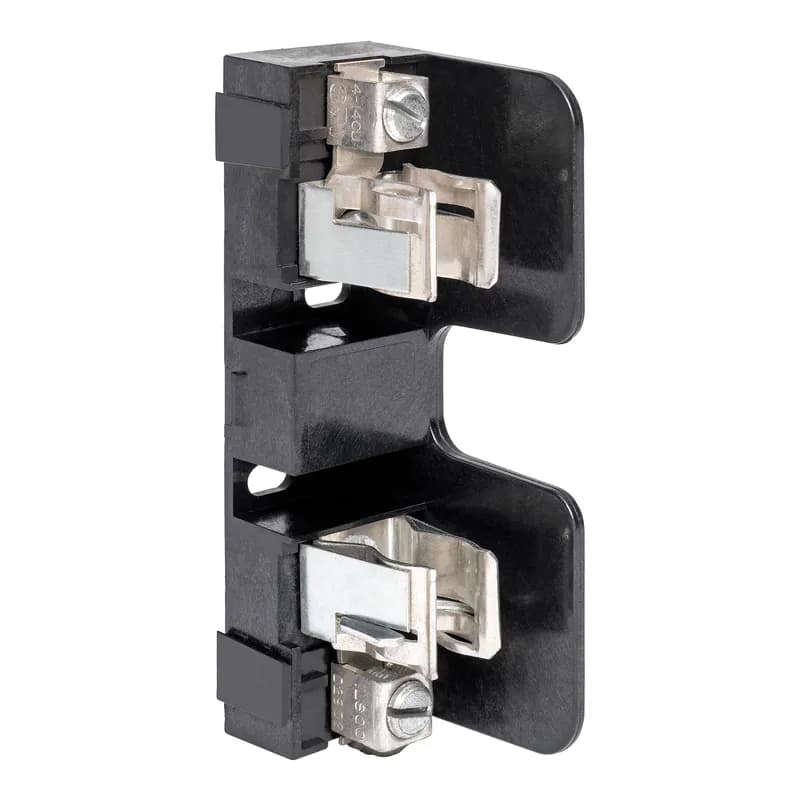

Littelfuse LFH25060-1C 250V CLASS H BLOCK 60A 1 POLE

The LF Series fuse blocks are available in 250 V and 600 V ratings.

The leakage current is less than 0.6 mA at 600 V.

Class H has a withstand rating of 10 kA RMS SYM, while Class R has 200 kA RMS SYM.

The base material has a flammability rating of UL94 V-0.

For 250 V Class H/K5 blocks, NLN fuses are recommended. For 250 V Class R blocks, FLNR/FLNR_ID, KLNR, or LLNRK fuses are recommended.

For 600 V Class H/K5 blocks, NLS fuses are recommended. For 600 V Class R blocks, FLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID, or IDSR fuses are recommended.

These blocks accommodate 6-14 AWG wire for box lugs and 10-14 AWG for pressure plates, using copper only.

The suggested torque for 2-4 AWG wire is 5.6 N-m (50 in-lbs), and for 6-14 AWG wire is 2.8 N-m (25 in-lbs).

These blocks support 2/0-6 AWG wire for box lugs, 8 AWG for pressure plates, and 10-14 AWG for screws, using copper-aluminum wire.

The suggested torque for 500 kcmil-4 AWG wire is 42.4 N-m (375 in-lbs).
