Littelfuse LFG48060-3CDINR - All Littelfuse Class G fuse blocks offer snap-to-release DIN rail mounting and universal mounting holes. Class G fuse blocks are designed for use with time-delay current limiting Class G fuses.
Littelfuse

LFG48060-3CDINR

Alternate Item Number: LFG480603CDINR

UPC: 079458939118

Documents & Media
BrochureTechnical BulletinTechnical DrawingSpecification Sheet

Contact for Pricing

Overview

The Littelfuse Class G Fuse Block, SKU LFG48060-3CDINR, is engineered for robust and reliable overcurrent protection in demanding industrial environments. Designed specifically for use with time-delay, current-limiting Class G fuses, this fuse block provides essential safety and operational integrity for sensitive electrical systems and equipment. Its primary function is to house and facilitate the rapid disconnection of circuits in the event of an overload or short circuit, thereby preventing damage and ensuring system uptime. This Littelfuse Class G fuse block offers exceptional versatility and ease of installation. It features snap-to-release DIN rail mounting, a standard in industrial control panels and automation systems, allowing for quick and secure attachment without the need for specialized tools. Complementing this is the inclusion of universal mounting holes, providing additional flexibility for integration into existing or custom panel designs. This dual mounting capability ensures that the LFG48060-3CDINR can be seamlessly incorporated into a wide array of applications, from manufacturing machinery and process control systems to power distribution units and telecommunications infrastructure. With a substantial current rating of 60 Amperes, this fuse block is suitable for handling significant electrical loads. The Class G fuse series is recognized for its ability to withstand temporary inrush currents common in motor starting and transformer applications, while still offering rapid interruption of dangerous fault currents. This makes the LFG48060-3CDINR an ideal choice for applications where both nuisance tripping and critical protection are paramount. The robust construction of Littelfuse products, a hallmark of the manufacturer's commitment to quality and durability, ensures long-term performance even under continuous operational stress and environmental challenges. Key features and benefits of the Littelfuse Class G Fuse Block (LFG48060-3CDINR) include: * **Optimized for Class G Fuses:** Specifically designed to work with time-delay, current-limiting Class G fuses for superior protection. * **Versatile Mounting Options:** Features both snap-to-release DIN rail mounting and universal mounting holes for flexible installation. * **High Current Capacity:** Rated for 60 Amperes, accommodating substantial electrical loads. * **Enhanced Safety:** Provides reliable overcurrent protection to safeguard equipment and personnel. * **Durable Construction:** Built with high-quality materials for long-lasting performance in industrial settings. * **Ease of Maintenance:** Facilitates quick fuse replacement and system troubleshooting. When selecting fuse protection, professionals rely on the proven performance and quality associated with the Littelfuse brand. The LFG48060-3CDINR exemplifies this commitment, offering a dependable solution for critical power management needs. Its application extends across numerous industries, including automotive manufacturing, food and beverage processing, water treatment, and general industrial automation, where consistent and safe electrical operation is non-negotiable. Investing in the Littelfuse Class G Fuse Block ensures that your electrical systems are protected by a product designed for efficiency, reliability, and safety.
  • Designed for Littelfuse Class G time-delay, current-limiting fuses.
  • Features snap-to-release DIN rail mounting for quick installation.
  • Includes universal mounting holes for versatile panel integration.
  • Rated for a robust 60 Ampere current capacity.
  • Ensures reliable overcurrent protection for industrial equipment.

Specifications

Brand Name
Littelfuse
Current Rating
60 A
Mounting Type
DIN Rail Mount
Series
Class G
Special Features
Universal mounting holes
Standard
UL Listed CSA Recognized
Sub Brand
LF Series Fuseblock
Type
Class G Fuseblock
600V CLASS CD BLOCK 60A 3 POLE NON-ID

LFC60060-3C

600V CLASS CD BLOCK 60A 3 POLE NON-ID

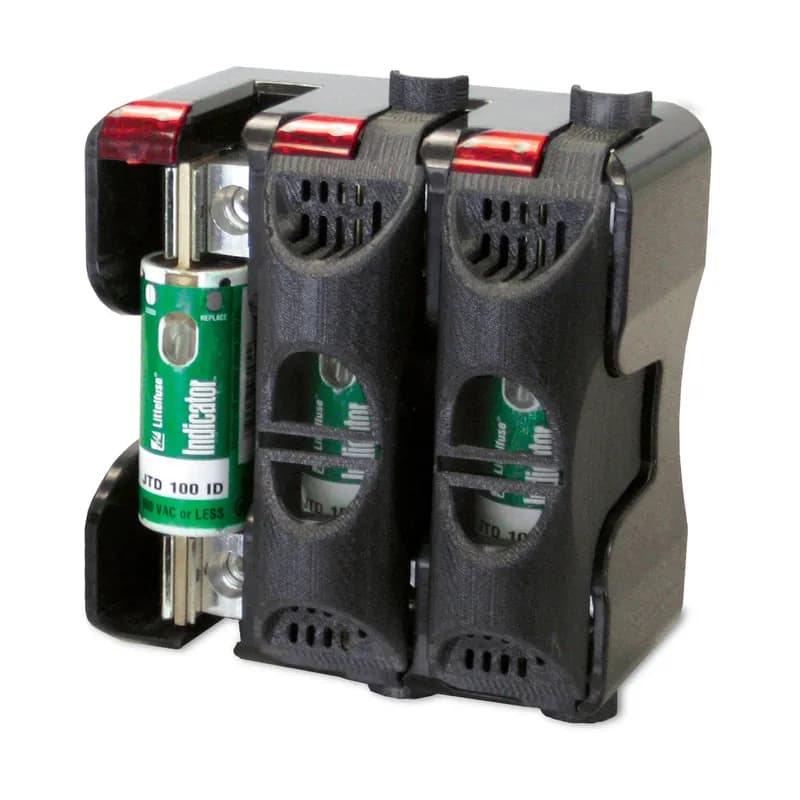

Littelfuse fuseblock covers protect personnel from accidentally coming into contact with energized parts. Covers are for use with various UL class fuseblocks. Please, review the ordering information for available covers.
