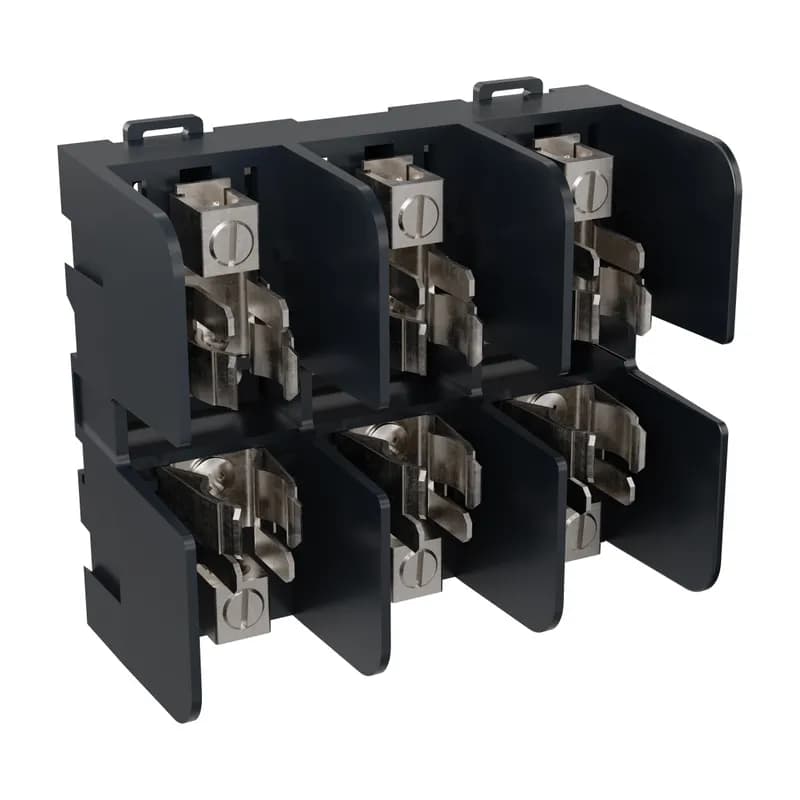

Overview
- 600V Class CD rating for industrial overcurrent protection
- 60A current rating with 3-pole non-ID configuration
- Part of Littelfuse’s Class CC/CD/midget series for versatile compatibility
- Manufactured in the US for quality assurance
- Space-saving design for efficient enclosure integration
Specifications
Connection Type | Non-ID |
Current Rating | 60 A |
Mounting Type | DIN-Rail |
Mounting Type | DIN-rail (implied) |
Mounting Type | DIN-rail (inferred) |
Poles | 3 |
Series | Class CD |
Voltage Rating | 600 V |
3PH15P18MM
3PH15P18MM is a compact-sized POWR Busbar system that provides safe distribution of electrical power to multiple dead front fuse holders and measures 266 mm in length, which can be cut down to an optimal size. See datasheet for more detailed specifications.
Frequently Asked Questions
What is the voltage and ampere rating for LFC Class CD fuse blocks?
The LFC Class CD fuse blocks have a voltage rating of 600 V ac/dc and an ampere rating of 60 A.
What is the withstand rating (SCCR) for LFC600 fuse blocks?
The LFC600 fuse blocks have a withstand rating (SCCR) of 200 kA.
What wire types and sizes are compatible with LFC Class CD fuse blocks?
LFC Class CD fuse blocks are compatible with CU-AL wire types, solid or stranded, in sizes 2-4 AWG for higher torque settings and 6-14 AWG for lower torque settings.
What are the torque specifications for LFC Class CD box lugs?
Box lugs with slot screws have torque specifications of 5.6 N-m (50 in-lbs) for 2-4 AWG wire and 2.8 N-m (25 in-lbs) for 6-14 AWG wire.
Are these fuse blocks RoHS compliant?
Yes, these fuse blocks are RoHS Compliant and Lead (Pb) Free.
What materials are used for the clips and terminals in these fuse blocks?
The clips and terminals are made of tin-plated copper alloy.
What is the flammability rating of the base material?
The base material has a UL94 V-0 flammability rating.
What are the recommended fuses for LFC Class CD blocks?
The recommended fuses for LFC Class CD blocks are CCMR.
What is the maximum operating temperature for the base of these fuse blocks?
The base temperature rating for these fuse blocks is 125 ˚C.
Are covers available for these fuse blocks?
Yes, covers are available for all amperages and are sold individually, with one cover needed for each pole.
