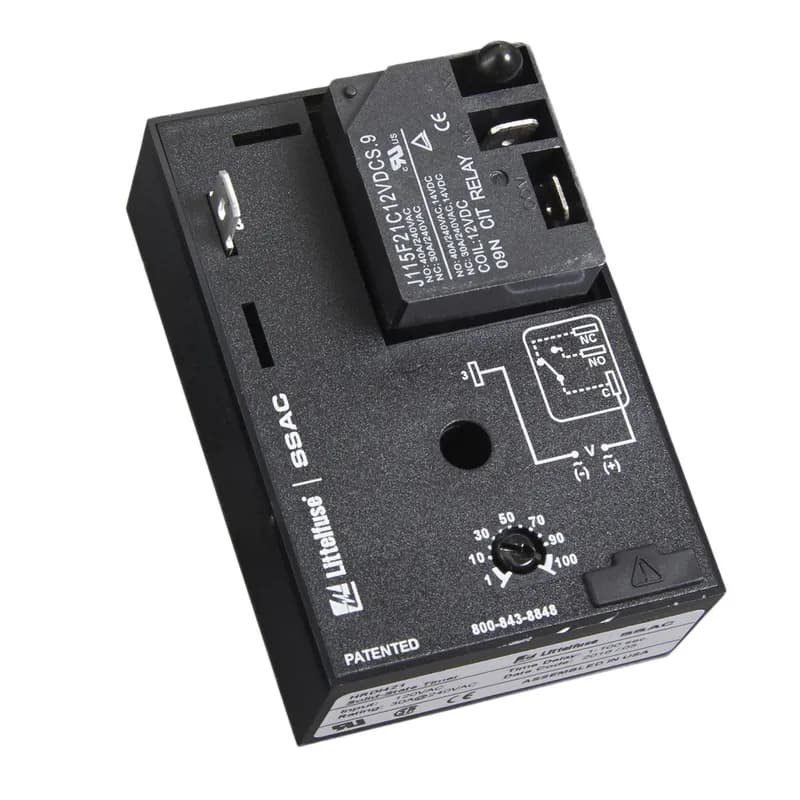

Littelfuse HRDI421 - The HRDI Series combines an electromechanical relay output with microcontroller timing circuitry. It offers 12 to 230V operation in five ranges and factory fixed, external, or onboard adjustable time delays with a repeat accuracy of ±0.5%. The output contact rating allows for direct operation of heavy loads, such as compressors, pumps, blower motors, heaters, etc. This series is ideal for OEM applications where cost is a factor. Operation (Interval): Upon application of input voltage, the time delay begins. The output relay is energized during the time delay. At the end of the time delay, the output de-energizes and remains de-energized until input voltage is removed. Reset: Removing input voltage resets the time delay and the output.
Littelfuse

HRDI421

Alternate Item Number: HRDI421

UPC: 079458993851

Documents & Media
BrochureSpecification Sheet

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The Littelfuse HRDI421 is a cost-effective electromechanical time delay relay designed for OEM applications, featuring integrated microcontroller timing circuitry for precise control. This versatile relay operates across a wide voltage range of 12 to 230V AC/DC, supporting five distinct ranges for global compatibility. The HRDI421 offers flexible timing adjustments, including factory-fixed, external adjustment via the panel-mountable Versa-Pot (P1004-95), or onboard potentiometer control. All timing options deliver exceptional repeat accuracy of ±0.5%. Its robust, isolated 30A SPDT normally open output contact rating allows for direct switching of heavy industrial loads such as compressors, pumps, blower motors, and heaters, eliminating the need for additional contactors or relays. The encapsulated design provides superior protection against shock, vibration, and humidity, ensuring reliable operation in harsh industrial environments. Factory calibration ensures ±2% accuracy, while the microcontroller-based timing guarantees consistent performance across temperature variations. The HRDI421 operates in an interval mode: upon application of input voltage, the time delay begins, and the output relay energizes. At the end of the programmed delay, the output de-energizes and remains so until input voltage is removed. Removing input voltage also resets the time delay and the output. Ideal for OEM applications where cost efficiency and space are critical, the HRDI421 measures approximately 2.25" x 1.5" x 1.25" (57.2mm x 38.1mm x 31.8mm) and is easily mountable on DIN rails or via optional mounting brackets (P1023-6). Available accessories include the Versa-Knob (P0700-7) for manual adjustment, female quick-connect terminals (P1015-13/P1015-64) with strain relief, and quick-connect to screw adapters (P1015-18) for enhanced wiring flexibility. Built on the reliable 380-series heritage, the HRDI421 provides dependable, accurate timing for industrial automation.
  • Microcontroller-based timing with ±0.5% repeat accuracy
  • 12 to 230V operation across five ranges
  • Isolated 30A SPDT, NO output contacts for heavy loads
  • Encapsulated design for shock, vibration, and humidity protection
  • Compact, low-cost design ideal for OEM applications

Specifications

Brand Name
Littelfuse
Mounting
Surface mount with one #10 (M5 x 0.8) screw Mount
Number Of Poles
Surface mount with one #10 (M5 x 0.8) screw
Operating Temperature
-40 to 60 F
Operating Temperature, Maximum
60 F
Operating Temperature, Minimum
-40 F
Special Features
10Y WARR
Standard
CE/UR/CSA
Sub Brand
SSAC

Similar Products

HRDS421

Voltage Rating: 12–230V AC/DC

Current Rating: 30 A

Poles: SPDT

HRDB423

Voltage Rating: 120 VAC

Current Rating: 30 A

Poles: SPDT

HRDI117S

Voltage Rating: 12–230 V

Current Rating: 30 A

Size: 2.0" x 2.0" x 1.21"

HRDR431A1R

HRDB121

Voltage Rating: 12 VDC

Current Rating: 30 A

Poles: SPDT

HRDB321

Voltage Rating: 24 V DC

Current Rating: 30 A

Poles: SPDT
