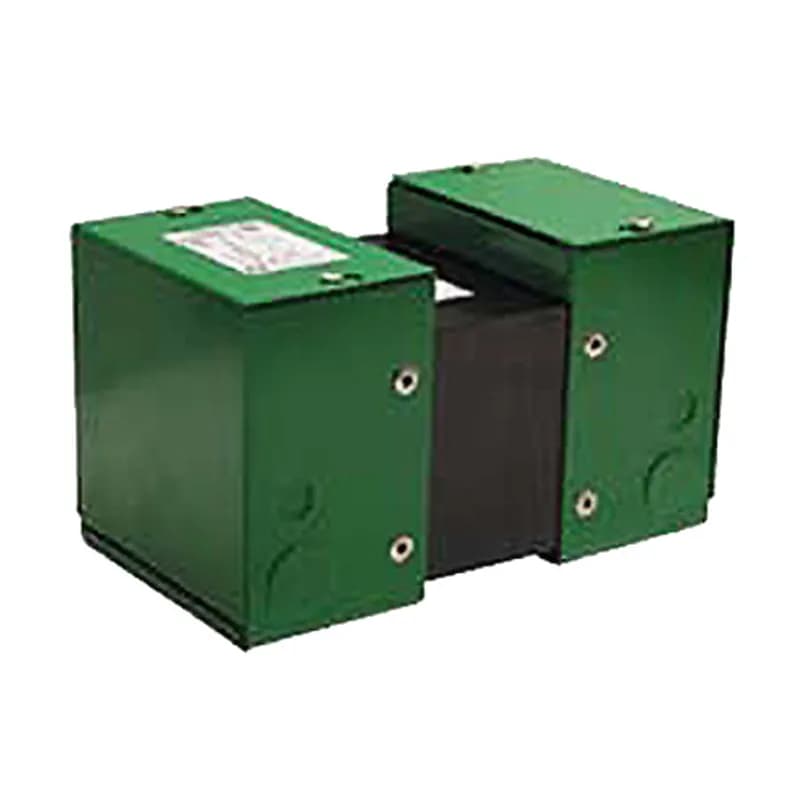

Hammond Power FS1000NJ General Purpose Enclosed Control Transformer, 277 PV, 120 SV, 1000 VA

The HPS Fusion units come with a 15-year warranty.

The transformers meet NEMA standards, are CSA Certified (file LR 3902), UL Listed (file E50394), CE Marked, and RoHS Compliant.

The FS1000NJ model has a primary voltage of 600/480 and a secondary voltage of 120 x 240.

The FS1000NJ transformer has an output amperage of 8.33.

For 50-1500 VA units, Class B (95°C Rise) is used with 130°C insulation. For 2000-5000 VA units, Class F (130°C Rise) is used with 180°C insulation.

The overall dimensions for the FS1000NJ transformer are 5.6 inches in length, 8 inches in width, and 5.1 inches in height.

The transformer features a rugged TYPE 1 enclosure with split side covers for easy access to the wiring compartment.

The optional fuse holder kit (Part Number FSFH1) is designed to accept 1/4" x 1 1/4" fuse sizes.

These transformers are ideal for indoor, cost-effective applications suited for single-phase, general purpose industrial and light duty loads.

Yes, an optional panel mount fuse holder is available for units up to 250 V (25A).
