Overview
- Provides overcurrent protection at 125% of rated current.
- Designed for 2REJ primary and midget secondary control transformers.
- Compatible with 240V primary and 120V secondary systems.

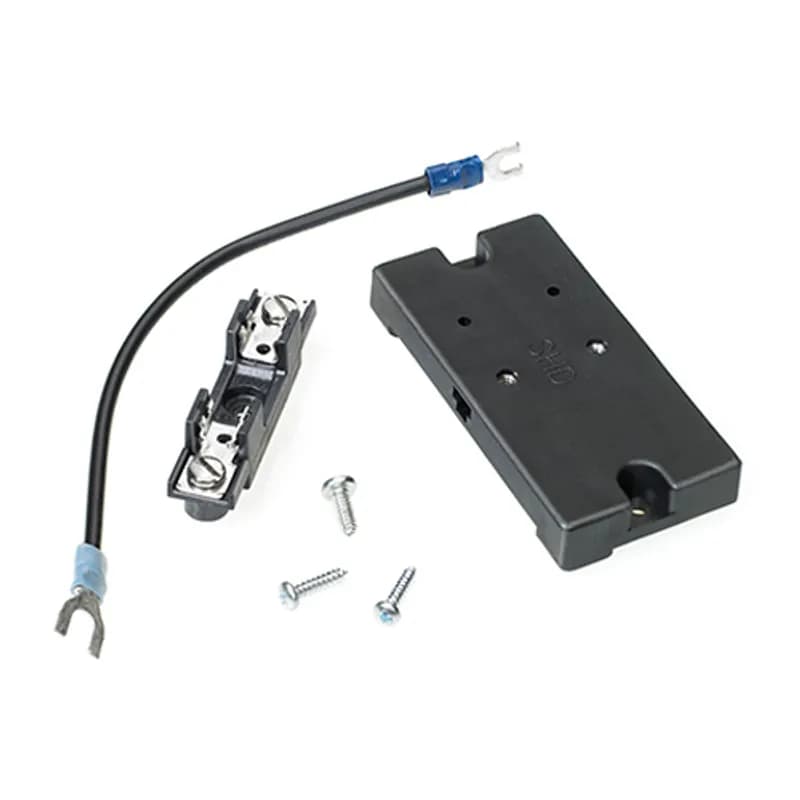

- Includes midget-type fuse clips (13/32" x 1 1/2") and primary fuse links.
- Manufactured in the US for durability and performance.
Specifications
Amperage Rating | 30 Amp Max. |
Application | Add fuse mounting options. |
Class | CC, Midget |
Color | Metallic |
Connection | Snap On |
Material | Steel |
Mounting | Terminal Block |
Operating Temperature | 40 Deg C |
Phase | 1 |
Special Features | Fuse Holder options |
Standard | Not Applicable |
Type | Accessories > Fuse Kit or Fuse Holders |
Voltage Rating | 600 Volt maximum |
Wattage | Not Applicable |
LECAC
The Littelfuse 600 V in-line watertight fuse holders are the ideal answer for all high humidity and corrosive environments where fuses are required. Available in both breakaway and non-breakaway, single and double pole versions, these fuse holders allow maximum flexibility for any application.
E92/30SCC
E 92/30S CC is a fuseholder for overcurrent and short circuit protection specific for class CC fuses
