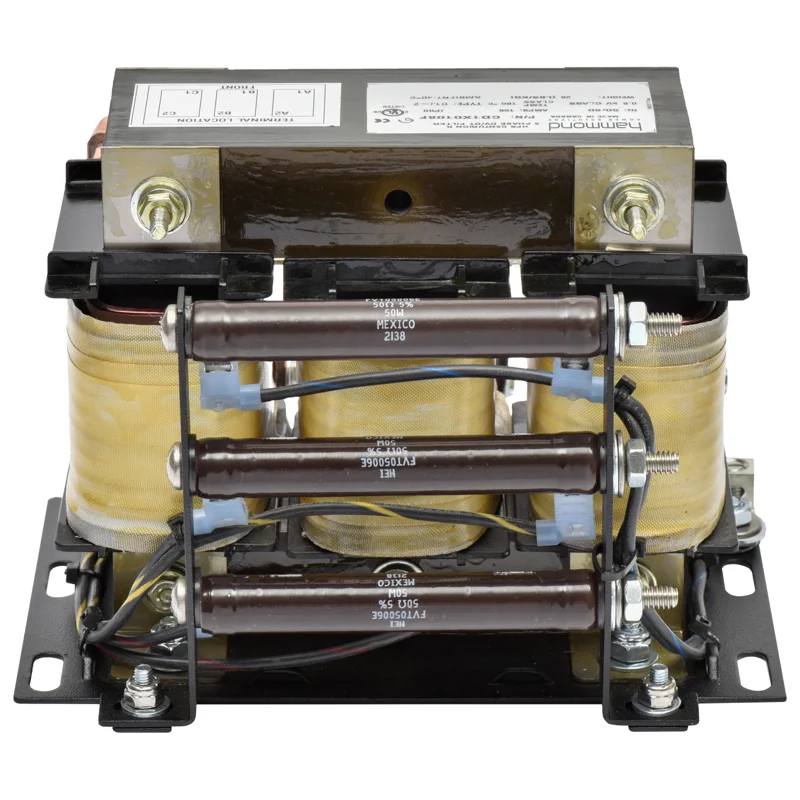

Hammond Power CD1X0108E dV/dT filter 108 amperes up to 600 volts type 1
UPC: 803423168278
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- The dV/dT filter combines an inductor and parallel resistor network to mitigate both high frequency components and voltage spikes between the VFD and motor.
- The filter can mitigate the effects of reflected wave voltages greater than what a reactor alone can accomplish.
- The filter provides protection to the motor by slowing down the rate of voltage increase and minimizes the damaging peak voltages that occur within the motor’s windings and along the length of cables feeding the motor.
- Type 1 enclosure for indoor protection against solid foreign objects
- 150% RMS overload capability for 60 seconds per 10 minutes
- Type 1 enclosure for indoor use
Specifications
Altitude | <1000 m |
Ambient Operating Temperature | -25C to 40C (suitable to 50C) Deg C |
Application | Designed for applications with long cables between the VFD and the motor |
Cooling | Natural Convection |
Current Rating | 108 A |
Enclosure | Type 1 |
Height | 7 in |
Inverter Operating Frequency | up to 60Hz |
Inverter Specification | Switching Frequency: 2kHz - 4kHz, Operating Frequency: up to 60Hz |
Inverter Switching Frequency | 2kHz - 4kHz |
Length | 7.5 IN |
Maximum Ambient Temperature | 40C (suitable to 50C) |
Minimum Ambient Temperature | -25C |
Mounting | Wall/Ceiling/Floor Mount |
NEC 480 HP | 75 |
NEC 600 HP | 100 |
Peak Voltage | at Motor: 150% of DC bus voltage |
Special Features | Peak Voltage at Motor: 150% of DC bus voltage |
Standard | cUL |
System Voltage | up to 600V |
Voltage Rating | up to 600V |
Watts Loss | 315 |
Weight | 28 lbs |
Width | 9 IN |
Package Dimensions (L x W x H) | 7.5 IN x 9 IN x 7 IN |
Package Dimensions (L x W x H) | 190.5 mm x 228.6 mm x 177.8 mm |
Package Weight (Imperial) | 28.000 L |
Package Weight (Metric) | 12.400 kg |
Frequently Asked Questions
What type of enclosure does this filter have?
The CD1X0108E features a Type 1 enclosure, providing protection against solid foreign objects for indoor use.
What voltage rating does the CD1X0108E support?
The CD1X0108E supports a maximum fundamental voltage of 600V AC.
What standards does this filter comply with?
The filter is designed, constructed, and rated in accordance with UL, CSA, and NEMA standards.
What is the overload capability of the reactor?
The reactor is designed for 150% RMS overload for 60 seconds once every 10 minutes.
What ambient temperature can this filter operate in?
The filter is suitable for operation in ambient temperatures up to 50 degrees Celsius.
What is the maximum VFD carrier frequency supported?
The filter is suitable for operation with VFD carrier frequencies up to 4kHz.
How to Install the dV/dT Filter
This guide provides step-by-step instructions for the installation and initial setup of the dV/dT filter, ensuring safe and proper operation.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Inspect the unit
Carefully inspect the dV/dT filter for any transit damage and verify that all parts are included as per the shipping documents. Do not proceed with installation if any damage is found.
- Mount the filter
Securely mount the dV/dT filter to a suitable surface using the provided mounting screws. Ensure that the filter is installed in a dry area with adequate ventilation.
- Connect the wiring
Connect the filter's terminals A1, B1, and C1 to the output phases U, V, and W of the variable frequency drive. Connect terminals A2, B2, and C2 to T1, T2, and T3 of the motor, ensuring all connections are tight and secure.
- Ground the filter
Ensure that the dV/dT filter is properly grounded according to local electrical codes. Verify that all ground connections are secure before energizing the unit.
- Verify connections
Use a multimeter to check that all electrical connections are secure and that there are no shorts. Confirm that the insulation resistance is greater than 10k ohms before proceeding.
- Energize the filter
Once all connections have been verified and are secure, restore power to the dV/dT filter. Monitor for any unusual sounds or signs of malfunction.
