Hammond Power CD1X0065E dV/dT filter 65 amperes up to 600 volts type 1
UPC: 803423168230
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview

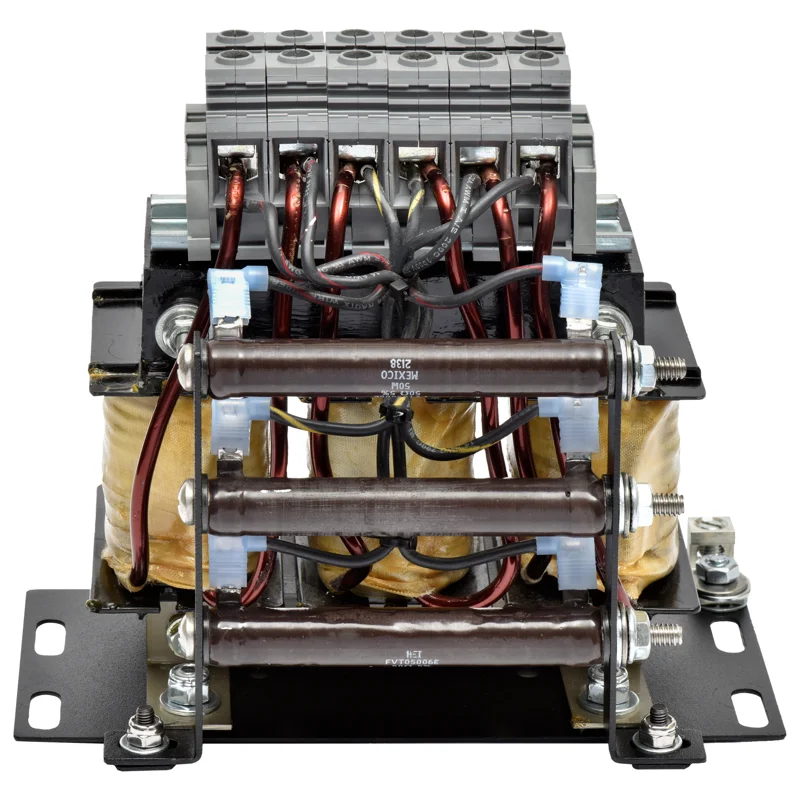

- dV/dT filter with three-phase iron core line reactor and resistors
- Designed to prevent motor failures caused by VFD operation
- Effective for cable lengths up to 1000 feet (option for 600 feet available)
- Reduces peak voltages at motor terminals
- Type 1 enclosure
Specifications
Altitude | <1000 m |
Ambient Operating Temperature | -25C to 40C (suitable to 50C) Deg C |
Application | Designed for applications with long cables between the VFD and the motor |
Cooling | Natural Convection |
Current Rating | 65 A |
Enclosure | Type 1 |
Height | 7 in |
Inverter Operating Frequency | up to 60Hz |
Inverter Specification | Switching Frequency: 2kHz - 4kHz, Operating Frequency: up to 60Hz |
Inverter Switching Frequency | 2kHz - 4kHz |
Length | 7.5 IN |
Maximum Ambient Temperature | 40C (suitable to 50C) |
Minimum Ambient Temperature | -25C |
Mounting | Wall/Ceiling/Floor Mount |
NEC 480 HP | 50 |
NEC 600 HP | 60 |
Peak Voltage | at Motor: 150% of DC bus voltage |
Special Features | Peak Voltage at Motor: 150% of DC bus voltage |
Standard | cUL |
System Voltage | up to 600V |
Voltage Rating | up to 600V |
Watts Loss | 260 |
Weight | 28 lbs |
Width | 9 IN |
Package Dimensions (L x W x H) | 7.5 IN x 9 IN x 7 IN |
Package Dimensions (L x W x H) | 190.5 mm x 228.6 mm x 177.8 mm |
Package Weight (Imperial) | 28.000 L |
Package Weight (Metric) | 12.400 kg |
Frequently Asked Questions
What is the primary function of the HPS Centurion D1 dV/dT filter?
The filter mitigates reflected wave voltages and voltage spikes between a VFD and motor, protecting motor windings and cables.
When should HPS Centurion D1 dV/dT filters be used?
They are designed for applications with long cables between the VFD and the motor and should be installed next to the VFD.
What is the system voltage rating for the Centurion D1 filters?
The system voltage rating is up to 600V, suitable for 480V and 600V applications.
What is the current rating range for these dV/dT filters?
The current ratings range from 2A to 108A, with higher ratings available upon consultation with HPS.
What is the ambient operating temperature range for the dV/dT filters?
The ambient operating temperature range is -25°C to 40°C, suitable for operation up to 50°C.
What type of enclosure do the Centurion D1 filters typically come in?
The filters are available in an Open Frame (Type 1) enclosure.
What is the voltage drop across the dV/dT filter?
The voltage drop across the filter is less than 3%.
What are the inverter switching and operating frequencies for these filters?
The inverter switching frequency is 2kHz - 4kHz, and the operating frequency is up to 60Hz.
What insulation system temperature ratings are available?
Insulation system ratings are 130°C for 2A-54A models and 180°C for models over 55A.
What is the maximum altitude for operating these filters?
The filters are suitable for operation at altitudes below 1000M.
How to Install the dV/dT Filter
This guide provides step-by-step instructions for the installation and initial setup of the dV/dT filter, ensuring safe and effective operation.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Inspect the unit
Immediately after receiving the dV/dT filter, inspect it for any transit damage and ensure all parts are accounted for according to the shipping documents.
- Mount the filter
Secure the dV/dT filter to a suitable mounting surface using the provided mounting screws. Ensure it is level and accessible for future maintenance.
- Connect the wiring
Connect the output phases A1, B1, and C1 to the corresponding U, V, and W terminals of the variable frequency drive. Connect A2, B2, and C2 to T1, T2, and T3 of the motor. Ensure all connections are tight and secure.
- Ground the filter
Ensure the dV/dT filter is properly grounded according to local electrical codes. Verify that all ground connections are secure before energizing the unit.
- Verify connections
Before energizing the dV/dT filter, use a multimeter to check that all electrical connections are tight and that there is no moisture present in the unit.
- Energize the filter
Once all checks are complete, restore power to the dV/dT filter and monitor for any unusual sounds or indicators of malfunction.
