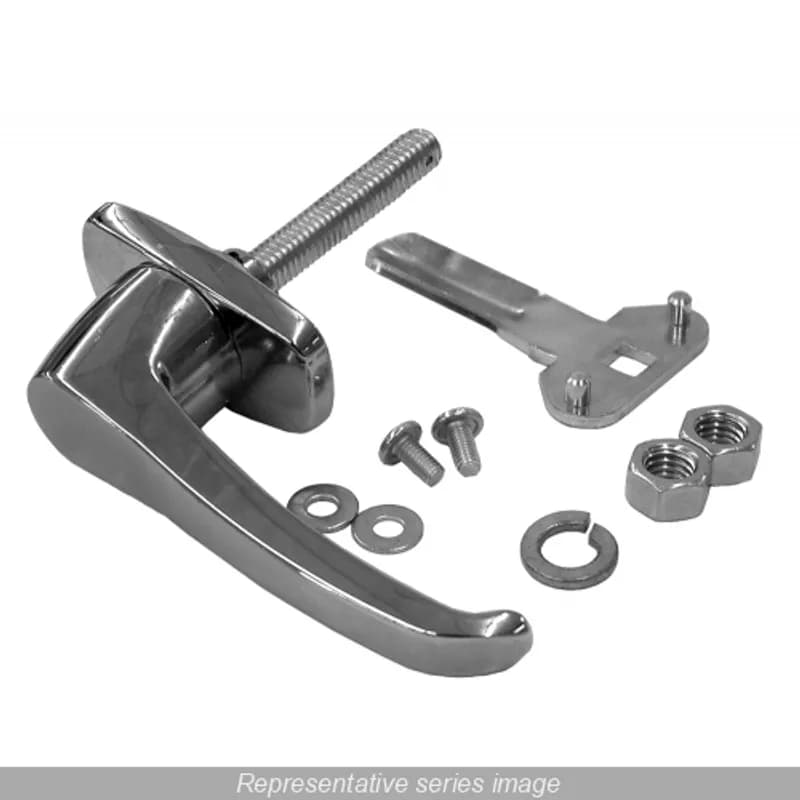

Hammond Manufacturing PHKL3 - N12 Padlock Key Handle 3 Point greater than 60"

Hammond Manufacturing PHKL3 N12 Padlock Key Handle 3 Point greater than 60"

UPC: 623980001074


Documents & Media
Technical DrawingSpecification SheetWarranty

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Hammond Manufacturing PHKL3 is a 3-point locking handle designed for industrial enclosures exceeding 60 inches in length. This keyed padlock handle provides enhanced security for NEMA 12/4 rated enclosures, including Hammond's 1418, 1422, UHD, HN4, and HWHK series. The 3-point locking mechanism includes latch rods with roller ends for smoother door operation and adjustable rod guides. Designed for field installation, the PHKL3 replaces standard slotted latches or installs in pre-cut holes with a reversible cam position. It maintains the NEMA 12/4 rating of the enclosure, ensuring protection against dust and splashing liquids. This handle kit includes two keys for secure access control.
  • 3-point locking handle for NEMA 12/4 enclosures over 60 inches
  • Keyed padlock "trigger" design for enhanced security
  • Includes 2 keys for secure access control
  • Maintains enclosure NEMA rating; suitable for field installation

Specifications

Brand Name
Hammond Mfg.
Mounting Type
Field Installation
Size
greater than 60"
Sub Brand
HK Series
Package Dimensions (L x W x H)
1 IN x 1 IN x 1 IN
Package Dimensions (L x W x H)
2.54 cm x 2.54 cm x 2.54 cm
Package Weight (Imperial)
2.000 L
Package Weight (Metric)
0.907 kg
One-Gang Low-Voltage Old Work Bracket, Length 4.32 Inches, Width 2.52 Inches, Depth 1.66 Inches, Color Orange, Material Non-Metallic

SC100RR

One-Gang Low-Voltage Old Work Bracket, Length 4.32 Inches, Width 2.52 Inches, Depth 1.66 Inches, Color Orange, Material Non-Metallic
Wall mounted HD, 1425x810x300, 1-door, with MP, stainless 304, IP66, IP69

HDW1428130

Wall mounted HD, 1425x810x300, 1-door, with MP, stainless 304, IP66, IP69
Inspection Window 7.83 x 3.03 x 0.04"

L 10

Inspection Window 7.83 x 3.03 x 0.04"
The THP100 is a padlocking, snap-on handle lock, designed for THQL breakers. The padlock is not included.

THP100

The THP100 is a padlocking, snap-on handle lock, designed for THQL breakers. The padlock is not included.
TRIANGLE 6,5 MM LOCKING WITHOUT KEY FOR CADRYS DELTA

51190600

TRIANGLE 6,5 MM LOCKING WITHOUT KEY FOR CADRYS DELTA
8x6x4 Polycarbonate Enclosure NEMA 4X | Hinged Cover | Gray | Stainless Steel Locking Latch | Mounting Feet

H8064HLL

8x6x4 Polycarbonate Enclosure NEMA 4X | Hinged Cover | Gray | Stainless Steel Locking Latch | Mounting Feet
SECND KIT FOR 1800H

ISK18

SECND KIT FOR 1800H
Box Support, Steel, Electro Galvanized 2 in. size, 1-7/8 in. length 100 per pack

SB300

Box Support, Steel, Electro Galvanized 2 in. size, 1-7/8 in. length 100 per pack
Enclosure mounting bracket kits are specifically designed for flat surface and pole mounting. One kit includes two brackets as well as the hardware to securely fasten the brackets to a wide variety of enclosures allowing for a wide range of mounting options. Kit Details: Material: 1/8? Aluminum Bracket: (2) brackets each featuring a 6? flat bar section with (2) 3/8? holes to mount to a variety of H-bars to any pole or flat surface Fasteners: (4) 1/4? x 20 washers and (4) 1/4? x 20 carriage bolts (4) 1/4? x 20 nuts

STBRK

Enclosure mounting bracket kits are specifically designed for flat surface and pole mounting. One kit includes two brackets as well as the hardware to securely fasten the brackets to a wide variety of enclosures allowing for a wide range of mounting options. Kit Details: Material: 1/8? Aluminum Bracket: (2) brackets each featuring a 6? flat bar section with (2) 3/8? holes to mount to a variety of H-bars to any pole or flat surface Fasteners: (4) 1/4? x 20 washers and (4) 1/4? x 20 carriage bolts (4) 1/4? x 20 nuts
ANGLE ADAPTER

515M3

ANGLE ADAPTER
APC Rail Kit for RT 15 20kva

SURTRK4

APC Rail Kit for RT 15 20kva

Frequently Asked Questions

What enclosures are compatible with the HK Series handle kits?

The HK Series handle kits are designed for field installation on most 1418 Series single door enclosures, but do not fit the 1418 J Series.

What types of handles are available for the HK Series?

The HK Series is available with key locking and non-locking handles.

What is included in the single point HK Series kits?

Single point kits include a handle and a latch cam.

What components are included in the three point HK Series kits?

Three point kits include a handle, latch cam, latch rods, and adjustable rod guides.

What feature aids in easier door closing for the HK Series kits?

The latch rod ends have rollers, which help to make door closing easier.

How are the parts in the HK Series kits protected against corrosion?

All parts in the HK Series kits are plated or painted to provide corrosion resistance.

Frequently Asked Questions about Hammond Manufacturing

What is Hammond Manufacturing's warranty policy?

Hammond Manufacturing provides a standard one-year warranty on all products, covering defects in workmanship and materials. Products will be repaired or replaced free of charge if found defective upon factory inspection. The warranty does not cover damage from improper handling, incorrect application, or faulty installation.

What certifications and standards do Hammond Manufacturing products comply with?

Hammond Manufacturing products are certified to UL (Underwriters Laboratories) and CSA (Canadian Standards Association) standards in North America. Our products meet rigorous safety and performance requirements, with many items classified as UL Listed Products or Recognized Components. We also comply with international certifications including China Compulsory Certification (CCC), C-Tick for Australian EMC requirements, and ANCE for Mexico.

What are the key features of Hammond Manufacturing products?

Hammond Manufacturing offers a comprehensive range of industrial enclosures and electrical components, including mild steel, stainless steel, aluminum, and non-metallic enclosures designed for diverse industrial applications. Their product lines cover critical industrial automation needs such as disconnect enclosures, operator interface enclosures, climate control solutions, and general accessories, with products engineered to meet Type 4, 4X, and 12 industrial standards.

What environmental ratings do Hammond Manufacturing products have?

Hammond Manufacturing offers enclosures with multiple environmental ratings across their product lines, including UL/cUL 508A ratings of Type 1, 2, 3, 4, 4X, 12, and 13. Their products also comply with IEC 60529 IP66 standards, providing robust protection against dust, water ingress, and harsh environmental conditions. Specific ratings vary by product series, with options ranging from indoor Type 1 enclosures to outdoor-rated Type 4X enclosures suitable for wet, corrosive, and high-temperature environments.

What industries and applications are Hammond Manufacturing products used for?

Hammond Manufacturing produces industrial enclosures and electrical components for multiple critical industries, including automation, electrical, audio, power systems, and control applications. Their product lines span mild steel, stainless steel, aluminum, and non-metallic enclosures designed for various NEMA types (Type 4, 4X, 12), as well as transformers, circuit board components, and climate control solutions for industrial and commercial environments.

What technical support does Hammond Manufacturing offer?

Hammond Manufacturing offers comprehensive technical support through multiple channels. Customers can access technical references and CAD downloads directly on www.hammondmfg.com, and can contact regional support teams via phone in Canada, the USA, and internationally. For custom design inquiries, their technical team provides personalized assistance, helping customers find standard solutions or develop custom transformer and electrical enclosure designs.

What are the main product lines offered by Hammond Manufacturing?

Hammond Manufacturing offers a comprehensive range of industrial enclosures, power supplies, and electronic packaging solutions. Their primary product lines include electrical and electronic enclosures, power transformers, heat sinks, PCI/PCIe card enclosures, and specialized mounting hardware for industrial automation and electronic applications.

What accessories are available for Hammond Manufacturing products?

Hammond Manufacturing offers a comprehensive range of accessories for their industrial enclosures and electrical components. Key accessories include HME Series handles (swing and lift handles with key locking and padlocking options), door stop kits, and light kit mounting brackets. They also provide standard hardware like screws, washers, and mounting accessories specific to different product lines.

How are Hammond Manufacturing products typically installed?

Hammond Manufacturing transformers are typically chassis-mounted using pre-drilled mounting holes and centers specified in their product dimension tables. Most models feature 3/16" diameter mounting holes and precise mounting centers, allowing for direct, secure installation onto equipment chassis or mounting plates. Installation requires aligning the transformer's mounting holes with corresponding mounting points and securing with appropriate fasteners.
