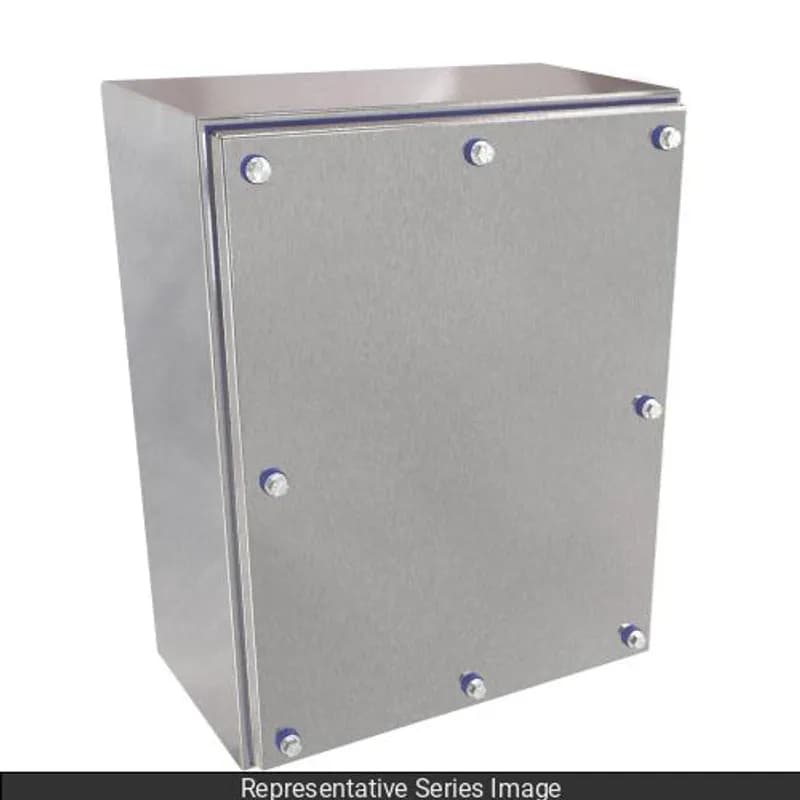

Hammond Manufacturing HYG1411 - HYGIENIC N4X GASKET

Hammond Manufacturing HYG1411 HYGIENIC N4X GASKET

UPC: 623980782225


Documents & Media
Technical DrawingSpecification SheetWarranty

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Hammond Manufacturing HYG1411 is a replacement hygienic silicone gasket designed for Type 4X stainless steel enclosures. It mounts around the entire door edge, providing a secure seal against dust and water ingress in hose-down environments. Engineered for food processing and pharmaceutical applications, the gasket meets NSF-ANSI 169 standards. It allows easy removal and reinstallation for maintenance, replacing Hammond’s HYJ14116SS junction boxes and HYPB1411SS pushbutton enclosures. Constructed from durable silicone, the HYG1411 ensures long-term performance in critical hygienic sealing applications.
  • Hygienic silicone gasket for Type 4X stainless steel enclosures
  • NSF-ANSI 169 compliant for food processing and pharmaceutical applications
  • Door-edge mounting for a secure seal against dust and water ingress
  • Easy removal and reinstallation for maintenance
  • Durable silicone construction for long-term performance

Specifications

Material
Silicone
Mounting Type
Door edge mount
Mounting Type
Door-edge-mounted
Nema Rating
Type 4X
Series
HYG
Package Dimensions (L x W x H)
1.1 IN x 12.1 IN x 15.4 IN
Package Dimensions (L x W x H)
2.794 cm x 30.734 cm x 39.116 cm
Package Weight (Imperial)
2.000 L
Package Weight (Metric)
0.907 kg
