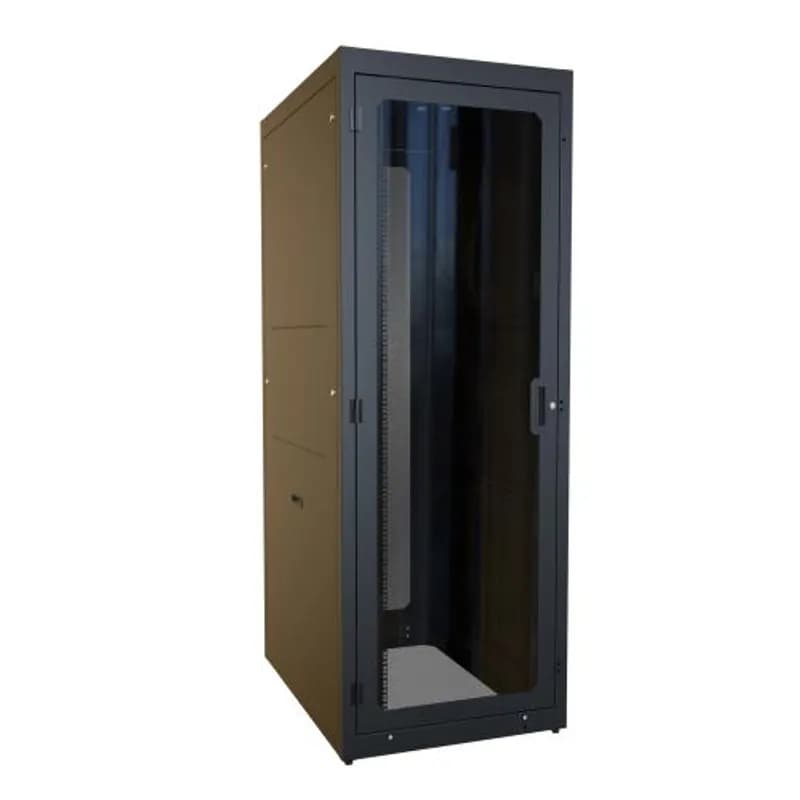

Hammond Manufacturing C4RR307742DBK1 30W 44U 42D C4RR Data Cabinet Assembly
UPC: 623980007892
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 44U rack height for extensive equipment storage
- 42-inch depth accommodates deep server and network devices
- Welded 12-gauge steel frame with 16/14-gauge steel doors and sides
- Infinitely adjustable tapped 19" rack angles for flexible mounting
- Split rear door with 3-point locking handle and included keys for security
Specifications
Brand Name | Hammond Mfg. |
Color | Black |
Material | Steel |
Mounting Type | Floor Mount |
Series | C4RR |
Size | 44U 42"D |
Sub Brand | C4RR Series |
Package Dimensions (L x W x H) | 46.2 IN x 33 IN x 92.13 IN |
Package Dimensions (L x W x H) | 117.348 cm x 83.82 cm x 234.0102 cm |
Package Weight (Imperial) | 410.000 L |
Package Weight (Metric) | 185.976 kg |
UTP6AL1MBU
The TX6A™ 10Gig Cat 6A UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What are the dimensions for the C4RR307742DBK1 model?
The C4RR307742DBK1 has overall dimensions of 83.58" height, 30.00" width, and 42.00" depth, with usable mounting dimensions of 77.00" height, 19.00" width, and 40.00" depth.
What is the load rating for the C4RR_D Series network cabinets?
The cabinets are UL Listed 2416 load rated to 3,000 lbs (1,360 kg) and seismic rated up to 1,200 lbs (544 kg).
What material are the C4RR cabinet frames and doors made of?
The welded cabinet frame is constructed of 14-gauge mild steel with 12-gauge reinforced corner brackets, and doors/side panels are 16-gauge steel.
What components are included with the C4RR cabinet?
Included are a welded steel frame, leveling feet, ground studs, mounting points for casters, two pairs of mounting rails, screws and cage nuts, two removable side panels, a fan cutout top panel, an acrylic window front door, a perforated rear door, and a vertical cable tray.
What type of mounting rails are included with the C4RR cabinets?
The cabinets include two pairs of adjustable depth, EIA-compliant square hole punched mounting rails made of 12-gauge steel with rack unit indicators.
What mounting heights are available for the C4RR cabinets?
The C4RR cabinets are available in 42U and 44U mounting heights.
What are the available overall depths for the C4RR cabinets?
The C4RR cabinets are available in 31.5", 36", and 42" overall depths.
How is grounding handled in the C4RR cabinets?
1/2-20 Bonding collar studs are provided in the frame, and additional 10–32 studs are included on compatible side panels and doors.
Does the C4RR cabinet meet any specific industry compliance standards?
Yes, it meets PCI DSS compliance requirements and is TAA-compliant for federal GSA schedule purchases within the USA, and is RoHS Compliant.
What is required for seismic rating compliance?
For seismic rating, leveling feet must be removed and the cabinet secured using a seismic bolt-down kit such as the C4K-Z4 (sold separately).
