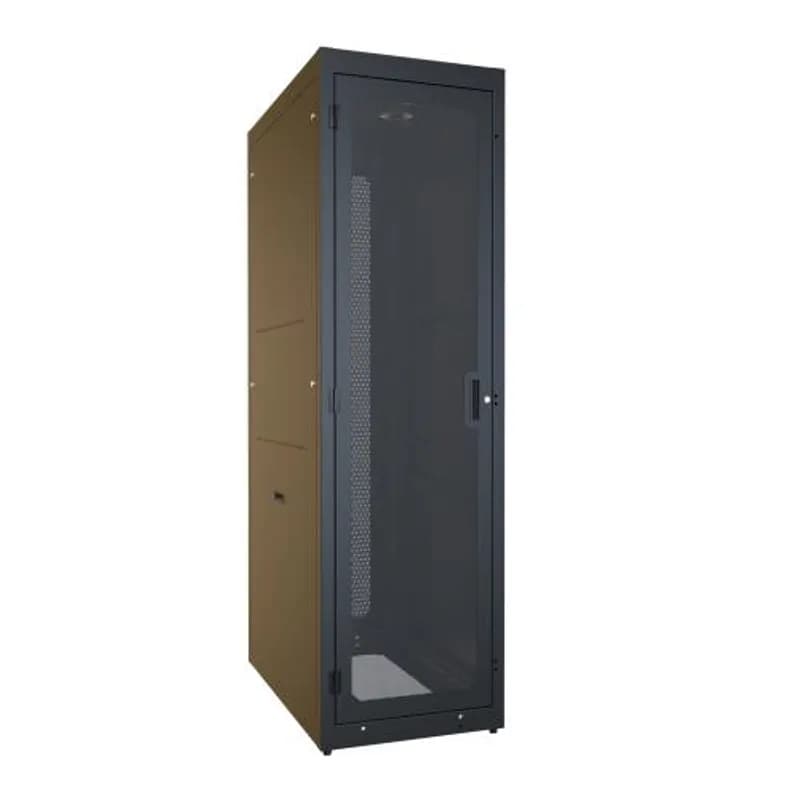

Hammond Manufacturing C4RR247742SBK1 24W 44U 42D C4RR Server Cabinet Assembly
UPC: 623980800905
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 24 inches Wide x 44U Tall x 42 inches Deep
- C4RR Server Cabinet Assembly Series
- Designed for Data Center and IT Infrastructure
- Robust Construction for Equipment Support
- Optimized for Airflow and Cable Management
Specifications
Brand Name | Hammond Mfg. |
Material | Steel |
Mounting Type | Floor-standing |
Series | C4RR |
Size | 24"W x 44U x 42"D |
Sub Brand | C4RR Series |
Package Dimensions (L x W x H) | 46.2 IN x 26.4 IN x 92.13 IN |
Package Dimensions (L x W x H) | 117.348 cm x 67.056 cm x 234.0102 cm |
Package Weight (Imperial) | 340.000 L |
Package Weight (Metric) | 154.224 kg |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
UTP6AL1MBU
The TX6A™ 10Gig Cat 6A UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Frequently Asked Questions
What are the dimensions of the C4RR247742SBK1 model?
The C4RR247742SBK1 has overall dimensions of 83.75" height, 24.00" width, and 42.00" depth, with usable mounting dimensions of 77.00" height, 19.00" width, and 40.00" depth.
What is the weight capacity of the C4RR_S server cabinet?
The cabinet is UL2416 rated to 3,000 lbs (1,360 kg) and seismic rated to 1,200 lbs (544 kg).
What type of finish does the server cabinet have?
The cabinet is finished in a textured RAL9005 black powder coat.
Does this cabinet meet PCI DSS compliance requirements?
Yes, this cabinet meets PCI DSS compliance requirements.
What is the open area percentage of the cabinet doors?
The doors provide 79% open area for high air movement.
What are the available mounting heights for this cabinet?
The C4RR cabinets are available in 42U and 44U mounting heights.
What are the overall depth options for the C4RR server cabinet?
The cabinet is available in 31.5", 36", and 42" overall depths.
What material is the server cabinet frame constructed from?
The welded cabinet frame is constructed in 14-gauge mild steel with 12-gauge reinforced corner brackets.
What is the load rating for the mounting rails?
The square hole 19" mounting rails are constructed of 12-gauge steel and are Zinc-plated.
How is the cabinet secured for seismic activity?
For seismic rating, leveling feet must be removed and the cabinet secured using a seismic bolt-down kit.
