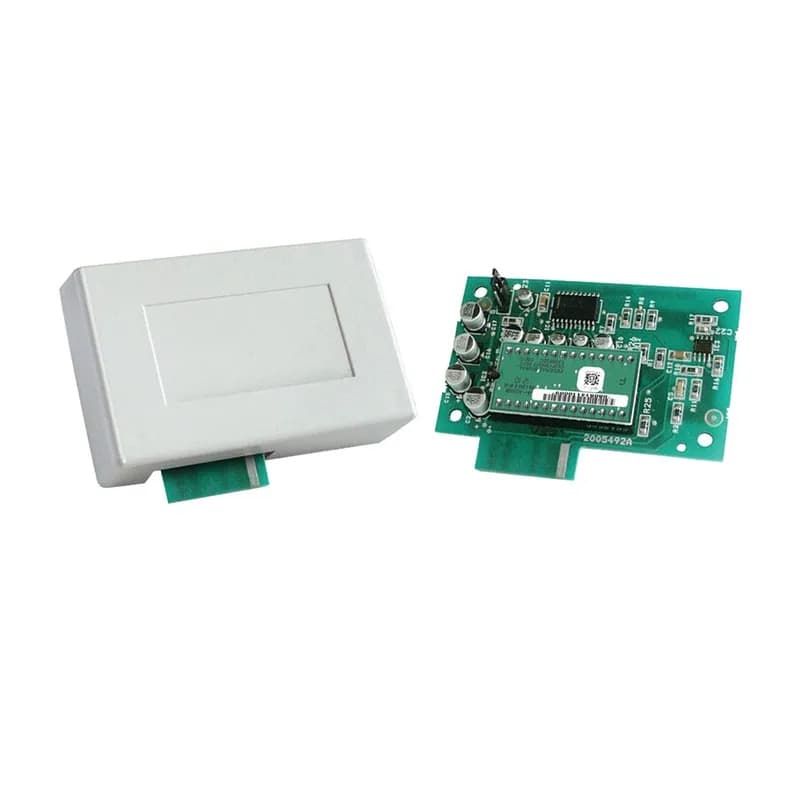

Federal Signal UTM SelecTone Universal Tone Module, UL and cUL
Alternate Item Number: utm-selectone-universal-tone-module
UPC: 782979202172
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 32 selectable tones via five DIP switches
- RFI/EMI shielded plastic cover with stainless steel fibers
- Compatible with all SelecTone amplified speakers and Command Units
- Low power consumption for battery-backed applications
- Simple, tool-free installation in conduit or panel spaces
Specifications
2.25 H x 3.25 W x 0.84 D | IN |
Application | Indoor/Outdoor |
Brand Name | Federal Signal |
Color | Black |
Dimensions | 2.25 H x 3.25 W x 0.84 D IN |
Frequency | Wide range |
Material | Plastic |
Mounting | Plug-In |
Mounting Type | Tool-free |
Operating Temperature | -67° to +131°F (-55° to +55°C) |
Series | SelecTone |
Size | Compact |
Special Features | Compatible With All Selectone Equipment |
Standard | UL Listed/cUL listed/CSA Certified/CSFM Approved |
Standard | CSA,UL,cUL/CSFM Approved |
Sub Brand | SelecTone |
Termination | Plug-In |
Tone | 32 Selectable Tones |
Type | Universal Tone Module |
Type | Audible Signals |
Package Dimensions (L x W x H) | 4.5 IN x 4.7 IN x 3 IN |
Package Dimensions (L x W x H) | 11.43 cm x 11.938 cm x 7.62 cm |
Package Weight (Imperial) | 0.250 L |
Package Weight (Metric) | 0.113 kg |
Frequently Asked Questions
What certifications does the UTM module have?
The SelecTone Universal Tone Module (UTM) is UL and cUL listed.
What is the SelecTone UTM?
The UTM is a SelecTone® Universal Tone Module. It is UL and cUL listed.
What is the primary function of the UTM?
The UTM card provides a selection of 32 distinct tones for the SelecTone system.
How many UTM modules can be installed?
Up to four UTM modules can be installed inside a SelecTone Command Unit, such as the 300VSC-1.
How to Install the Universal Tone Module (UTM)
This guide provides step-by-step instructions for safely installing and configuring the Universal Tone Module (UTM) for optimal performance.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Insulated paper
- Inspect the UTM
After unpacking the UTM, carefully examine it for any damage that may have occurred during transit. If damaged, file a claim with the carrier immediately.
- Mount the UTM
Securely place the UTM into the edge connector on the SelecTone Speaker Amplifier or Control Unit. Ensure it is properly seated and level.
- Connect the wiring
Connect the wiring to the UTM according to the specifications provided in the SelecTone unit's instruction sheet. Use terminal connectors for secure connections.
- Set the DIP switches
Adjust the 5-position DIP switches on the top of the UTM to select the desired tone according to Table 1. Ensure the settings are correct for your application.
- Test the system
After installation, do not connect the unit to the power supply until all connections are made. Once connected, test the sound system to ensure proper operation.
