Contact for Pricing
Overview

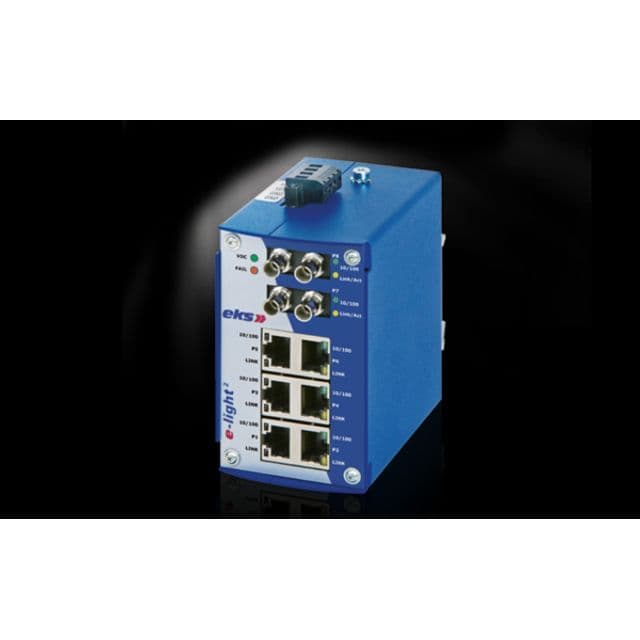

- Managed industrial Ethernet switch for robust connectivity
- 6 x 10/100TX copper ports and 2 x 100FX single-mode fiber ports (ST)
- Supports ring topology for network redundancy and resilience
- Extended temperature range operation for industrial environments
- Ideal for manufacturing, process control, and industrial automation
Specifications
Article no. | 04420001000 x 000 xxx |
Assembly | DIN rail |
Basis | CE |
Connector | 4 pin terminal (redundant supply) / 4 pin terminal (2 x fault relay) / USB/Sub-DB9 |
Constructive design | Constructive design |
cUL61010 | 8TX, 6TX/2FX, 4TX/4FX |
Description | Fast-Ethernet-Switch, managed |
Dimensions (W x H x D) | 145 mm x 70 mm x 130 mm |
Failure relay (load capacity) | 24 VDC (1A) / 60 VDC (0,3 A) |
Fiber type / range / budget | Fiber type / range / budget |
Housing | Stainless steel, powder coated |
Management | SNMP-Management / Web-Interface-Management |
Manufacturer Page | https://www.eks-engel.de/en/products/industrial-network-technology/the-industrial-ethernet/el100-2ma/ |
MIB | RFC 1213 MIBII / RFC 1493 bridge MIB / RMON RFC 1757 / RFC 2674 VLAN MIB / RFC 1643 Ethernet as MIB / RFC 1215 Trap MIB private MIB for switch informations, ring, port alarm, TFTP firmware update, reset, port mirror, IP security management, IGMP management MIB |
Multimode 50 / 125 μm (1 dB / km) | 0 m – 5 km, optical budget 13 dB mit 1300 nm |
Multimode 62,5 / 125 μm (1 dB / km) | 0 m – 5 km, optical budget 13 dB mit 1300 nm |
Operating temperature | -40 °C – +55 ºC |
Other | SNTP for time synchronisation / IGMP v1 and query modus with 256 groups / DHCP client function / TFTP firmware, TFTP backup and recovery / ingress and egress bandwidth control |
Permissible ambient conditions | Permissible ambient conditions |
Port type and amount | 8 Ports in total, max. 4 x 100BASE-FX Ports: ST, SC, E2000 or BIDI-SC, Max. 8 x 10/100BASE-TX Ports: RJ45 |
Power consumption at 24 VDC | 8 Watt, 330 mA |
Power supply | 12 – 60 VDC (redundant) |
Product Description | EL-100-2MA is an 8 port switch that features ring function based on the Media Redundancy Protocol (MRP, IEC 62439) with a recovery time of less than 200 ms and supports ProfiNet. |
Protection class | IP 20 |
Protocols | PROFINET Class B, Netload Class III |
Redundancy | Media redundancy protocol (MRP) according to IEC 62429-2 / rapid spanning tree protocol (RSTP) |
Series | EL-100-2MA |
Signal LEDs / interfaces | Signal LEDs / interfaces |
Singlemode 9 / 125 μm (0,3 dB / km) | 0 m – 30 km, optical budget 16 dB with 1310 nm (other distances on request) |
Standards | IEEE 802.3 10BASE-T / IEEE802.3u, 100BASE-T(X), 1000BASE-T and 1000BASE-SX or LX / IEEE802.3 Flow Control and Backpressure / IEEE 802.1d Spanning Tree / IEEE 802.1w Rapid Spanning Tree / IEEE 802.1p Class of Service / IEEE 802.1Q VLAN-Tag |
Status LEDs | Failure (red)/Ports (green/ yellow)/Power (green)/Ring (green) |
Supply | Supply |
Technical approvals | Technical approvals |
Twisted Pair | 0 m – 100 m (Cat5e) |
Weight | 850 g |
ST4803PDGM
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
3085
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
STP6X12MIG
This TX6A 10Gig Cat 6A STP Patch Cord is a 12-Meter, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
F62ERLNSNSNM002
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
CESUM3-C15
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
Frequently Asked Questions
What is the operating temperature range for the EL100-2MA switch?
The EL100-2MA switch can be used in a wide temperature range of -40 °C to +55 °C.
What is the input voltage range for the redundant power supply?
The redundant power supply has an input voltage range from 12 VDC to 60 VDC.
What is the power consumption of the EL100-2MA?
The power consumption is 8 Watts, drawing 330 mA at 24 V.
What are the dimensions of the EL100-2MA switch?
The dimensions of the EL100-2MA switch are 145 x 70 x 130 mm.
What type of mounting is supported by the EL100-2MA?
The EL100-2MA is suitable for both DIN rail mounting and wall fastening.
What is the ring recovery time for the EL100-2MA's MRP function?
The ring recovery time for the Media Redundancy Protocol (MRP) is less than 300 ms.
Does the EL100-2MA support VLANs?
Yes, the EL100-2MA supports both port based VLAN and tagged VLAN IEEE 802.1Q.
What management features are available on the EL100-2MA?
Features include Web Management GUI, SNMP, RMON, DHCP Client, IGMP, SNTP, and SMTP.
What is the weight of the EL100-2MA switch?
The weight of the EL100-2MA switch is 850 g.
