Contact for Pricing
Overview
- Supports RS485, MB, and SM protocols for versatile industrial compatibility
- Single-mode (SM) fiber with SC connectors for long-distance, interference-resistant communication
- FiberView technology ensures exceptional signal integrity and minimal latency
- Compact design for easy integration into DIN rail or panel-mounted systems
- Manufactured in Germany with durable construction for harsh industrial environments
Specifications
Data rate | 9,6 KBit/s, 19,2 KBit/s, 38,4 KBit/s, 57,6 KBit/s oder 115,2 KBit/s |
Dimensions | H: 115 mm, W: 61 mm, D: 113 mm |
EMC | EN61000-6-2/EN55022 Class B + A1 + A2 |
Fiber type | Singlemode 9/125 μm |
FO range | 30 km, others up to 100 km on request (0.3 dB/km) |
FO-connector | SC |
Housing | Stainless steel, powder coated |
Manufacturer Page | https://www.eks-engel.de/en/products/industrial-network-technology/interface/the-dl485-mb-dl485-mbr/ |
Operating temperature | –40 °C – +70 °C (Multimode and Singlemode with ST or SC), –20 °C – +55 °C (all others) |
Optical budget | 16 dB |
Potenzialtrennung | 500 VDC (24 VDC <> RS485) |
Power consumption | 5 Watt, 200 mA (24 V) |
Power supply | 12–30 VDC, other voltages on request |

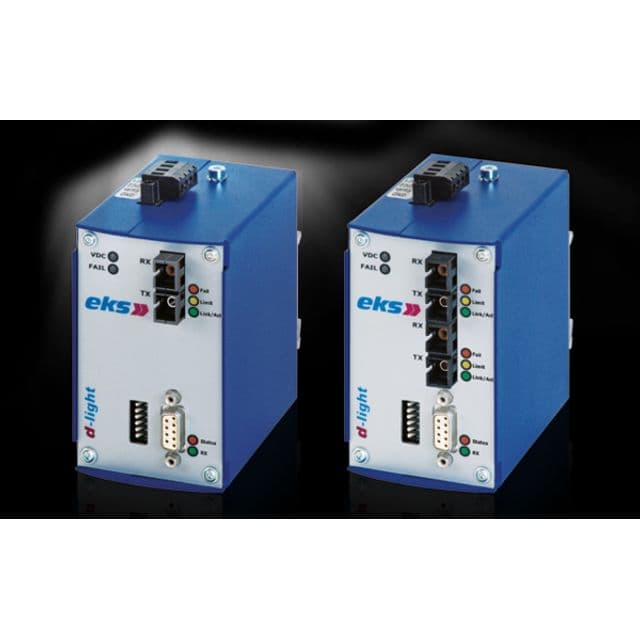

Product Description | The fiber optic systems DL485-MB / DL485-MBR secure the optical data transfer within MODBUS networks up to a data speed of 115,2 KBit/s. Our special multifunctional fiber optic system allows the construction of optical ring structures. |
RS485 Cable length | 1200 m |
RS485 Connector | 9-pole Sub-D female and 6-pole terminal |
Series | DL485-MB / DL485-MBR |
Status-LEDs | Power supply (green) / Failure (red) / Data receive (green) / Status (red) / FiberView (red, yellow, green) |
Terminating resistor | Switchable: none or wave impedance (Rw + Rpd + Rpu) |
Transmission type | Half duplex |
Wavelength | 1310 nm |
Weight | 570 g |
SS1-1/0-RN-750KW20
Storm-Safe Breakaway Mid Span Service Entrance Kit, (1) SSM 2, (1) SSS 2, (2) SSS 1/0, (2) SSM 1/0, (1) W20-1, Breakaway Force 750 LBS, Less Than 1000 VoltsFrequently Asked Questions
What is the operating voltage range for the DL485-MBR?
The device operates on 12–30 VDC. Other voltages are available on request.
What is the maximum data speed for the DL485-MBR?
The DL485-MBR supports data speeds up to 115.2 KBit/s within MODBUS networks.
What is the power consumption of the DL485-MBR?
The DL485-MBR consumes 5 Watts, which is 200 mA at 24 V.
What are the operating temperature ranges for the DL485-MBR?
The operating temperature is –40 °C to +70 °C for Multimode/Singlemode with ST or SC, and –20 °C to +55 °C for all others.
What are the dimensions of the DL485-MBR?
The dimensions are H: 115 mm, B: 61 mm, T: 113 mm.
What is the weight of the DL485-MBR?
The weight of the DL485-MBR is approximately 570 g.
How does the FiberView system indicate status?
FiberView uses a traffic light system: green for normal, yellow for tolerable budget, and red for serious errors.
What status LEDs are available on the DL485-MBR?
Status LEDs include Power supply (green), Failure (red), Data receive (green), Status (red), and FiberView (red, yellow, green).
What applications is the DL485-MBR system suitable for?
This system is suitable for applications with strict safety requirements like process industry, tunnel ventilation, and railway technology.
What is the maximum RS485 cable length supported?
The maximum RS485 cable length supported is 1200 m.
