030001133-L

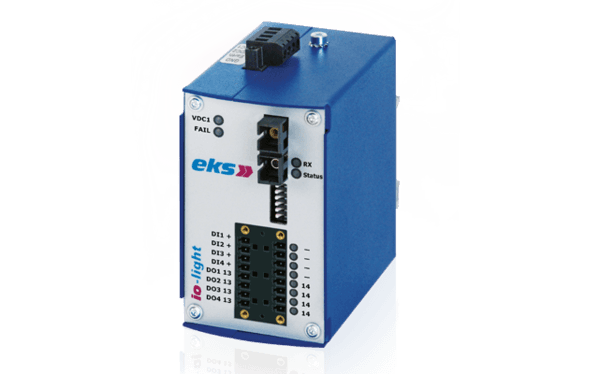

The IOL3000 system can transmit up to 8 digital signals (12–24 VDC) and/or 4 analog signals (0–10 V or 0–20 mA).

The system requires a power supply of 12–30 VDC. Other voltages are available upon request.

The operating temperature is –40 °C to +70 °C for Multimode and Singlemode with ST or SC connectors, and –20 °C to +55 °C for all others.

The dimensions are 60 x 100 x 113 mm, or 60 x 120 x 113 mm including the connector.

The range is 50 m for POF, 200 m for HCS, 5 km for Multimode, and 30 km for Singlemode (up to 100 km on request).

Defective states are signaled by LEDs and potential-free contacts of a fault detector relay.

The power consumption is 5 Watts, drawing 200 mA at 24 V.

Analog signals are digitalized via an A/D converter with a resolution of 10 Bit.
