Overview
- High-performance fiber optic technology
- Designed for point-to-point communication
- Durable for harsh industrial environments
- Easy installation and compatibility
- Ideal for data-intensive applications
Specifications
Data rate max. | 57,6 KBit/s |
Dimensions | 60 x 100 x 113 mm (60 x 120 x 113 mm incl. connector) |
EMC | EN61000-6-2 / EN55022 Class B + A1 + A2 |
Fiber type | Multimode 62,5 (50)/125 μm |
FO range | 5 km (1 dB/km) |
FO-connector | ST |
Housing | Stainless steel, powder coated |
Load | <100 Ohm |
Loop Current | 2 x 20 mA |
Manufacturer Page | https://www.eks-engel.de/en/products/industrial-network-technology/interface/the-dl-tty/ |
Operating temperature | –40 °C – +70 °C (Multimode and Singlemode with ST or SC) / –20 °C – +55 °C (all others) |
Operation mode | Duplex: aktiv, halbaktiv oder passiv / Half duplex: aktiv oder passiv |
Optical budget | 12 dB |
Potential separation | 500 VDC (24 VDC <> TTY) |
Power consumption | 5 Watts, 200 mA (24 V) |
Power supply | 12–30 VDC, other voltages on request |

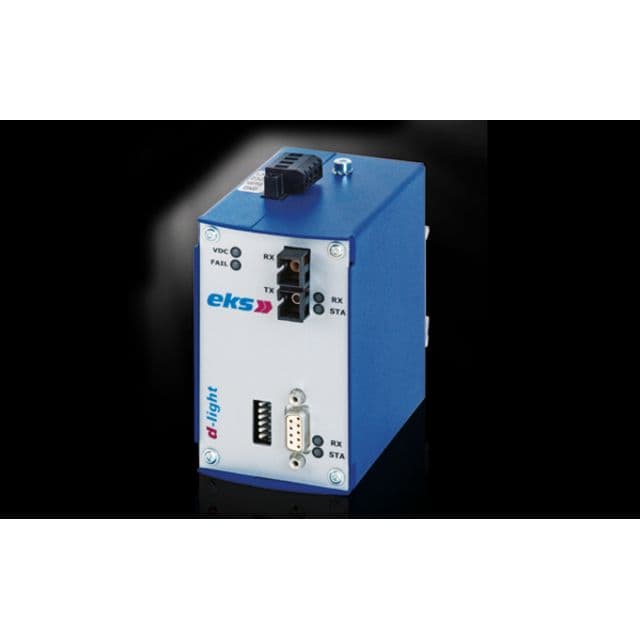

Product Description | The system DL TTY forms an asynchronous TTY- interface (20 mA active, half-active or passive) which can be operated in two ways: either half-duplex or full-duplex (please note the schematics opposite). |
Series | DL TTY |
Status-LEDs | Power supply (green) / Data (yellow) / Status (red) |
TTY Connector | 9-pole Sub-D female and 6-pole terminal |
Wavelength | 1310 nm |
Weight | 570 g |
