Brad Harrison 2R7006A20F060 - Mini-Change® B-Size Receptacle with Leads 1/2" - 14NPT Threads, Straight Male, 7 Poles, Length 1.83m

Brad Harrison 2R7006A20F060 Mini-Change® B-Size Receptacle with Leads 1/2" - 14NPT Threads, Straight Male, 7 Poles…

Alternate Item Number: 1300140055

UPC: 786788440763


Documents & Media
Technical DrawingSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 4

Multiplier: 1

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The Brad Harrison 2R7006A20F060 is a robust Mini-Change® B-Size receptacle designed for reliable electrical connections in industrial settings. This straight male connector features a B-Size interface, ensuring compatibility with standard B-Size mating components. It is equipped with 7 poles, providing ample capacity for complex wiring configurations. The receptacle is designed for secure mounting via 1/2" - 14NPT threads, facilitating easy and stable integration into control panels, enclosures, or machinery. The integrated 1.83-meter (approximately 6-foot) lead cable simplifies installation and reduces the need for external wiring, saving time and labor. The Mini-Change series from Brad Harrison is recognized for its durable construction and dependable performance, making this receptacle suitable for applications requiring consistent signal and power transmission. Its straightforward male connection type ensures a secure mating with female connectors. The 1/2" - 14NPT thread size is a common standard in industrial plumbing and electrical conduit, offering broad compatibility. This unit is ideal for sensor connections, actuator control, and power distribution in manufacturing automation, process control, and other demanding industrial environments. The 7-pole configuration allows for multi-circuit connections within a single, compact connector. Brad Harrison's commitment to quality ensures that the 2R7006A20F060 will perform reliably under typical industrial operating conditions. Its straightforward design minimizes potential points of failure, contributing to overall system uptime and efficiency. The included leads are pre-terminated, simplifying the connection process and reducing the risk of wiring errors. This receptacle is a key component for building resilient and efficient industrial electrical systems.
  • Brad Harrison Mini-Change® B-Size receptacle
  • 7-pole configuration for multi-circuit connections
  • Straight male connector type
  • 1/2" - 14NPT threads for secure mounting
  • Integrated 1.83-meter (6-foot) lead cable

Specifications

_Orientation
Straight
Amperage Rating
8 A
Conductor Range
16
Conductor Range, Maximum
16
Conductor Range, Minimum
16
Connection
External Thread
Connection Type
Straight Male
Environmental Conditions
IP67
Material
Metal
Mounting Type
1/2" - 14NPT Threads
NEMA Rating
6
Poles
7
Series
MINI-CHANGE
Size
B-Size
Size
1.83m
Special Features
B-Size (1" - 16 UN-2A)
Temperature Rating, Maximum
221 F
Temperature Rating, Maximum
105 C
Temperature Rating, Minimum
-4 F
Temperature Rating, Minimum
-20 C
Type
Single Ended (pigtail)
Voltage Rating
600V AC/DC
Mini-Change® B-Size Receptacle with Leads 1/2" - 14NPT Threads, Straight Male, 7 Poles, Length 0.305m

2R7006A20A120

Mini-Change® B-Size Receptacle with Leads 1/2" - 14NPT Threads, Straight Male, 7 Poles, Length 0.305m
#16-4 YELLOW - SOW-A/SOW CORD BOXEDIN250'C

SY16-4

#16-4 YELLOW - SOW-A/SOW CORD BOXEDIN250'C
MIL-Spec Size 16S-7, 7 Pole, Female Straight, Field Wireable, Nickel Plated Brass, 8-16mm

MS16S-7FP-FW25-SC

MIL-Spec Size 16S-7, 7 Pole, Female Straight, Field Wireable, Nickel Plated Brass, 8-16mm

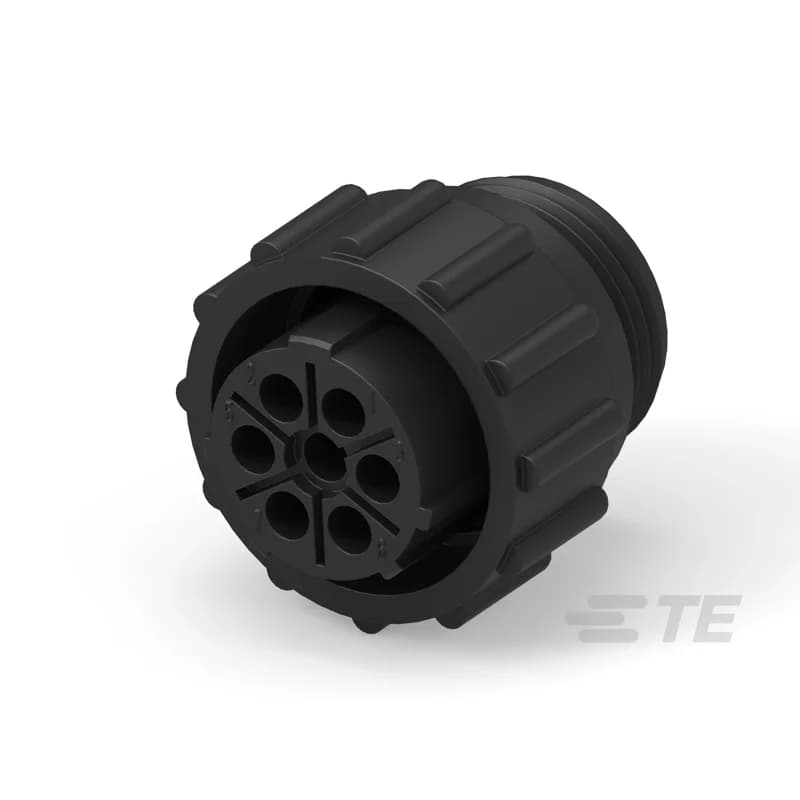

Circular Power Connectors, Housing, 600 VDC, 30 – 14 AWG Wire Size, .05 – .2 mm² Wire Size, Wire-to-Wire, 7 Position, Wire & Cable, Plug, AMP CPC

208716-1

Circular Power Connectors, Housing, 600 VDC, 30 – 14 AWG Wire Size, .05 – .2 mm² Wire Size, Wire-to-Wire, 7 Position, Wire & Cable, Plug, AMP CPC
MC 12P MFE 12M 16/12 TPE FLX

332020K04M120

MC 12P MFE 12M 16/12 TPE FLX
6P FEMALE STRAIGHT3' 16/6 AWG PVC CORD

206000A01F0301

6P FEMALE STRAIGHT3' 16/6 AWG PVC CORD
Mini-Change® C-Size Double-Ended Cordset, 9 Poles, Female (Straight) to Male (Straight), 0.91m Length

339020A01F030

Mini-Change® C-Size Double-Ended Cordset, 9 Poles, Female (Straight) to Male (Straight), 0.91m Length
Mini-Change® C-Size Single-Ended Cordset, 9 Poles, Male (Straight) to Pigtail, STOOW Cable, 6.10m Length

309002A01F200

Mini-Change® C-Size Single-Ended Cordset, 9 Poles, Male (Straight) to Pigtail, STOOW Cable, 6.10m Length

Frequently Asked Questions

What is the maximum voltage and current rating for this connector?

The maximum voltage rating is 600V AC/DC, and the maximum current per contact is 8.0A.

What are the operating temperature limits for this product?

The operating temperature range for this product is -20° to +105°C.

What is the IP and NEMA rating for this Mini-Change receptacle?

This receptacle has an IP67 rating and a NEMA 6 rating.

What type of threads does this receptacle use for mounting?

The mounting thread size is 1/2" - 14 NPT.

How many poles does this connector have?

This connector has 7 poles.

What is the length of the leads on this receptacle?

The leads on this receptacle are 1.83m (6.0') in length.

What is the wire size and type used in this connector?

The wire size is 16 AWG, and the wire type is UL 1015.

What is the coupling type and gender of this connector?

The coupling type is external thread, and the gender is male.
