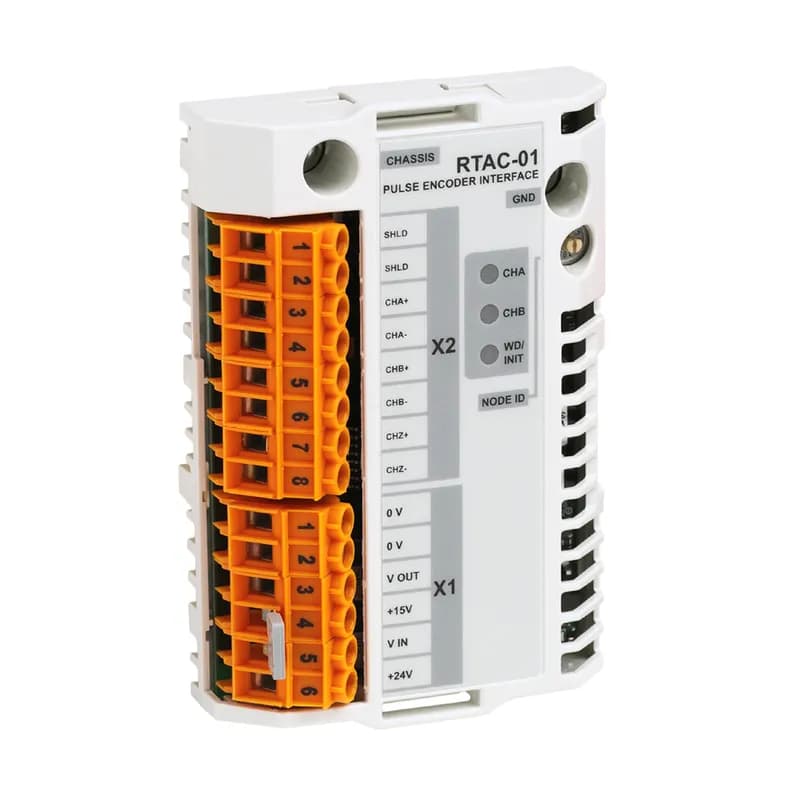

ABB Low Voltage Drives RTAC-01-KIT The Pulse Encoder Interface module offers a differential or single ended interface for a…

The ABB RTAC-01-KIT Pulse Encoder Interface Module provides a robust differential or single-ended interface for digital pulse encoders, enabling precise motion control in industrial automation systems. Designed for compatibility with ABB Low Voltage Drives, this module supports encoder signals at 15V or 24VDC with a maximum frequency of 200kHz, ensuring high-speed data acquisition for demanding applications. The module consumes 55mA from the available 250mA power supply, making it energy-efficient while maintaining reliable performance. When powered by the drive’s internal supply, additional options may be restricted—always verify encoder power requirements before installation. The RTAC-01-KIT is ideal for applications requiring accurate position feedback, such as CNC machines, robotics, material handling systems, and conveyor belts. Its compact design and DIN rail mounting compatibility simplify integration into existing control panels. The module supports both differential and single-ended encoder signals, offering flexibility for various encoder types and wiring configurations. With a focus on precision and reliability, the RTAC-01-KIT ensures minimal signal distortion and high noise immunity, critical for maintaining system accuracy in noisy industrial environments. Compatible with a wide range of ABB drives and automation systems, this module is a cost-effective solution for upgrading or retrofitting encoder interfaces without extensive system redesign.
