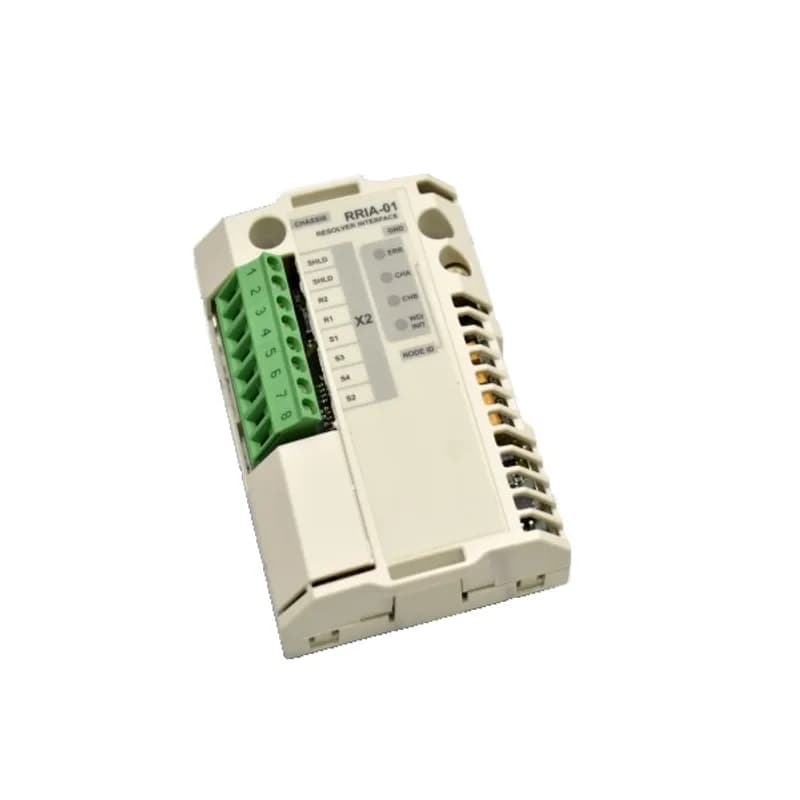

ABB - Low Voltage Drives RRIA-01-KIT - The Resolver Interface module offers interface for an analog resolver connection. A resolver may be used to obtain accurate speed and position (angle) feedback from a motor shaft. Application software supporting the Resolver interface, Positioning Control, Permanent Magnet Synchronous Machine. Limited Application SW Support, Check with factory

ABB Low Voltage Drives RRIA-01-KIT The Resolver Interface module offers interface for an analog resolver connection. A…

Alternate Item Number: 68486408

UPC: 662348077252

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Low Voltage Drives RRIA-01-KIT Resolver Interface Module (SKU: RRIA-01-KIT) provides essential connectivity for analog resolver feedback devices. This module enables precise acquisition of motor shaft speed and position (angle) data, crucial for advanced motor control applications. It is designed to interface with motors equipped with resolvers, offering a reliable method for obtaining high-resolution feedback. The RRIA-01-KIT supports application software for Positioning Control and Permanent Magnet Synchronous Machines (PMSM). While it offers robust functionality for these applications, it's important to note that limited application software support is available. For specific compatibility or advanced configurations, consulting with the factory is recommended to ensure optimal integration and performance. This module is a key component for applications requiring accurate motor performance monitoring and control, leveraging the inherent precision of resolver feedback technology. Its UNSPSC code is 39122004, indicating its classification within electrical power control equipment.
  • Enables analog resolver connection for motor feedback
  • Provides accurate speed and position (angle) data
  • Supports Positioning Control application software
  • Compatible with Permanent Magnet Synchronous Machines (PMSM)
  • ABB Low Voltage Drives product with SKU RRIA-01-KIT
Double plastic fiber optic, Qty 1, 5 meters long

61059113

Double plastic fiber optic, Qty 1, 5 meters long
HMI door mounting kit with 2M cable

181B0399

HMI door mounting kit with 2M cable
CONDUIT MODULE B(LSLV-S100),DFR2-S100

64150005

CONDUIT MODULE B(LSLV-S100),DFR2-S100
FAN POWER SUPPLY BOARD CFV1D.400V/48V

CFW11SP-12387920

FAN POWER SUPPLY BOARD CFV1D.400V/48V
Fiber optic communication interface board and CDP312RD panel support. CH 0 - 10Mb - overriding system control (APC2, AC80, etc.). CH 1 - 5Mb - is used for DDCS I/O extension. AIMA-01. CH 2 - 10Mb - Master-Follower link (drive-to-drive). CH 3 - 10Mb - PC tool such as DriveWindow. X19 is used for CDP312RD panel.

SDCS-COM-81

Fiber optic communication interface board and CDP312RD panel support. CH 0 - 10Mb - overriding system control (APC2, AC80, etc.). CH 1 - 5Mb - is used for DDCS I/O extension. AIMA-01. CH 2 - 10Mb - Master-Follower link (drive-to-drive). CH 3 - 10Mb - PC tool such as DriveWindow. X19 is used for CDP312RD panel.
Panel mounting platform for CDP312R is NEMA 12 rated, includes 3 meter cable, and CDP312R control panel. Maximum door panel thickness 14ga (2.5mm).

RPMP-13

Panel mounting platform for CDP312R is NEMA 12 rated, includes 3 meter cable, and CDP312R control panel. Maximum door panel thickness 14ga (2.5mm).
Fiber optic communication interface board and CDP312RD panel support. CH 0 - 5Mb - overriding system control (APC2, AC80, Nxxx moodule). CH 1 - 5Mb - is used for DDCS I/O extension. AIMA-01. CH 2 - 10Mb - Master-Follower link (drive-to-drive). CH 3 - 10Mb - PC tool such as DriveWindow. X19 is used for CDP312RD panel.

SDCS-COM-82

Fiber optic communication interface board and CDP312RD panel support. CH 0 - 5Mb - overriding system control (APC2, AC80, Nxxx moodule). CH 1 - 5Mb - is used for DDCS I/O extension. AIMA-01. CH 2 - 10Mb - Master-Follower link (drive-to-drive). CH 3 - 10Mb - PC tool such as DriveWindow. X19 is used for CDP312RD panel.
The three phase field supply converters DCS800-S01 and -S02 drives need a separate active over voltage protection for proper operation on the inductive load of a motor field. This unit will protect the drive against inadmissible high voltages. The DCF506-0520 is to be used with -0200-05 through -0520-05 units.

DCF506-0520-51

The three phase field supply converters DCS800-S01 and -S02 drives need a separate active over voltage protection for proper operation on the inductive load of a motor field. This unit will protect the drive against inadmissible high voltages. The DCF506-0520 is to be used with -0200-05 through -0520-05 units.
