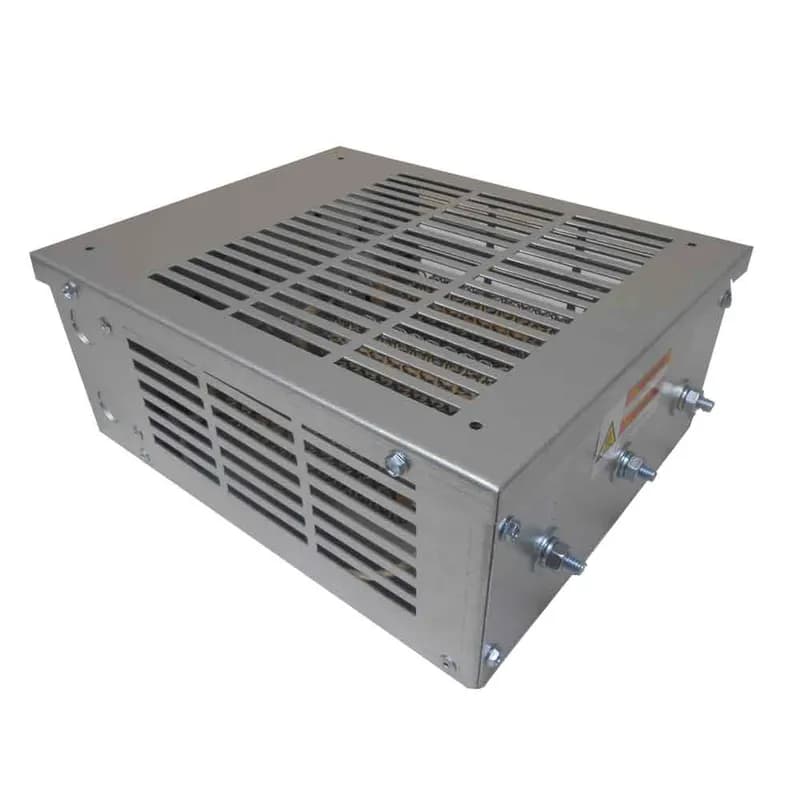

ABB - Low Voltage Drives P14494-47 - Braking Resistor, 15 OHMS, 1150 WATTS, GCE3 Enclosure, 12W x 10D x 5H in, 13 lbs

ABB Low Voltage Drives P14494-47 Braking Resistor, 15 OHMS, 1150 WATTS, GCE3 Enclosure, 12W x 10D x 5H in, 13 lbs

Alternate Item Number: 3AUA0000041880

UPC: 662348076392


Documents & Media
Technical DrawingSpecification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Low Voltage Drives Braking Resistor, SKU P14494-47, is engineered for effective energy dissipation in motor control applications. It features a resistance of 15 OHMS and a substantial power rating of 1150 WATTS, enabling it to handle significant braking energy. The resistor is housed within a GCE3 enclosure, offering a compact footprint with dimensions of 12 inches wide by 10 inches deep by 5 inches high. Weighing 13 lbs, it is designed for manageable installation in various industrial settings. This braking resistor is a critical component for applications requiring controlled deceleration of motor loads. It effectively prevents over-voltage conditions and protects drive components by dissipating excess energy during braking cycles. Its robust construction and specified ratings ensure reliable performance in demanding industrial environments. The UNSPSC code for this product is 39122004. Manufactured in the US, this resistor is a key element for maintaining system integrity and operational efficiency in motor control systems.
  • 15 OHM Resistance for effective energy dissipation
  • 1150 WATTS Power Rating for significant braking energy handling
  • GCE3 Enclosure for a compact 12"W x 10"D x 5"H footprint
  • 13 lbs weight for manageable installation
  • Designed for motor control applications to prevent over-voltage and protect drive components

Specifications

Series
GCE3 Enclosure
Size
12W x 10D x 5H in
Size
12 x 10 x 5 in
Double plastic fiber optic, Qty 1, 5 meters long

61059113

Double plastic fiber optic, Qty 1, 5 meters long
HMI door mounting kit with 2M cable

181B0399

HMI door mounting kit with 2M cable
CONDUIT MODULE B(LSLV-S100),DFR2-S100

64150005

CONDUIT MODULE B(LSLV-S100),DFR2-S100
FAN POWER SUPPLY BOARD CFV1D.400V/48V

CFW11SP-12387920

FAN POWER SUPPLY BOARD CFV1D.400V/48V
Braking Resistor, 15 OHMS, 1550 WATTS, GCE4 Enclosure, 12W x 13D x 5H in, 16 lbs

P14494-48

Braking Resistor, 15 OHMS, 1550 WATTS, GCE4 Enclosure, 12W x 13D x 5H in, 16 lbs
Braking Resistor, 35 OHMS, 1600 WATTS, GCE4 Enclosure, 12W x 13D x 5H in, 16 lbs

P14494-34

Braking Resistor, 35 OHMS, 1600 WATTS, GCE4 Enclosure, 12W x 13D x 5H in, 16 lbs
Braking Resistor, 35 OHMS, 2500 WATTS, GCE8 Enclosure, 19W x 13D x 5H in, 24 lbs

P14494-35

Braking Resistor, 35 OHMS, 2500 WATTS, GCE8 Enclosure, 19W x 13D x 5H in, 24 lbs
The 115/230V Digital Input Interface module offers six (6) 115V or three (3) 230V rated circuits mounted on a common board used to drive DI1 through DI6 of the ACS550 or ACS800. The 115/230V and interconnection wiring must be provided by the user.

OHDI-01-KIT

The 115/230V Digital Input Interface module offers six (6) 115V or three (3) 230V rated circuits mounted on a common board used to drive DI1 through DI6 of the ACS550 or ACS800. The 115/230V and interconnection wiring must be provided by the user.

Frequently Asked Questions

What are the resistance and wattage for P14494-CR-02 for ACS150/355-01U-0.5 Hp drives?

For a 3sec on/27sec off duty cycle, it's 200 Ohms and 100 Watts. For 10sec on/50sec off, it's also 200 Ohms and 100 Watts.

What is the resistance and wattage for P14494-47 for a 10 Hp ACS150/355-03U drive?

For a 60sec on/180sec off duty cycle, the resistor is 15 Ohms and 1150 Watts.

What resistor part number is used for a 15 Hp ACS250-03U drive with a 3sec on/27sec off duty cycle?

The resistor part number is P14494-31, with 35 Ohms and 300 Watts.

What are the specifications for P14494-CR-03 for ACS250-03U-04A1-4 drives?

For 3sec on/27sec off duty cycle, it's 150 Ohms and 100 Watts. For 10sec on/50sec off, it's 150 Ohms and 200 Watts.

What is the resistance and wattage for P14494-47 for a 30 Amp ACS550-U1 drive?

For a 60sec on/180sec off duty cycle, the resistor is 15 Ohms and 2160 Watts.

What resistor part number is suitable for a 15 Hp ACS550-U1 drive with a 30sec on/180sec off duty cycle?

The resistor part number is P14494-64, with 63 Ohms and 1850 Watts.

What are the Ohm and Watt ratings for P14494-CR-02 for ACS550-U1-03A3-4 drives?

For a 3sec on/27sec off duty cycle, it's 200 Ohms and 100 Watts. For 10sec on/50sec off, it's 200 Ohms and 150 Watts.

What is the purpose of a braking resistor?

Braking resistors dissipate regenerated power to prevent the bus voltage from exceeding the drive's rated limit, increasing braking torque for faster deceleration.

Which ABB drives are compatible with Type CR resistors for single-phase 200-240V applications?

ACS150 and ACS355 drives are compatible for stopping duty applications.

How are Powerohm Type CR resistors constructed?

They use a nickel-chromium wire wound helically, placed in a ceramic fixture, and enclosed in an aluminum case for efficient cooling.
