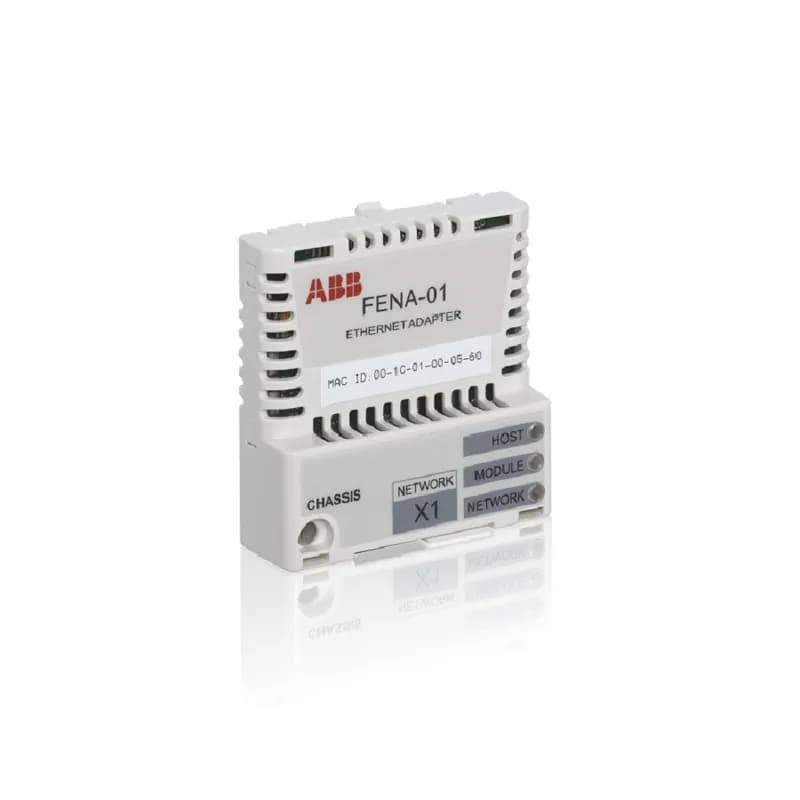

ABB - Low Voltage Drives FENA-01-KIT - The FENA-01 module supports Three protocols Modbus-TCP, EtherNet/IP and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard. The FENA-01 supports 10/100 Mbps transfer rate with network connections made with CAT 5 wiring and RJ-45 connectors. Both star and bus topology options are supported.

ABB Low Voltage Drives FENA-01-KIT The FENA-01 module supports Three protocols Modbus-TCP, EtherNet/IP and the PROFInet IO…

Alternate Item Number: 68469422

UPC: 662348075548


Documents & Media
Specification Sheet

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB FENA-01-KIT module is an industrial communication solution supporting three key protocols: Modbus-TCP, EtherNet/IP, and PROFInet IO RT. Modbus-TCP enables open Industrial Ethernet communication over TCP/IP, while EtherNet/IP leverages the Common Industrial Protocol (CIP) for robust connectivity. PROFInet IO RT, an open standard by the PI Organization, ensures high-performance real-time data transfer. The module supports 10/100 Mbps transfer rates with CAT 5 wiring and RJ-45 connectors. It accommodates both star and bus topology configurations, making it adaptable to diverse industrial setups. Designed for industrial automation, process control, and smart manufacturing, the FENA-01-KIT enhances connectivity and operational efficiency. The module is ideal for environments requiring reliable, high-speed industrial networking with multi-protocol support.
  • Supports Modbus-TCP, EtherNet/IP, and PROFInet IO RT protocols
  • 10/100 Mbps transfer rate with CAT 5 wiring and RJ-45 connectors
  • Compatible with star and bus topology configurations
  • Open Industrial Ethernet network standards for seamless integration
  • Designed for industrial automation, process control, and smart manufacturing

Specifications

Connection Type
RJ-45
Series
FENA-01
The FENA 01 module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard. The FENA-11 supports 10/100 Mbps transfer rate with network connections made with CAT 5 wiring and RJ-45 connectors. Both star and bus topology options are supported.

FENA-11-KIT

The FENA 01 module supports Three protocols Modbus-TCP, EtherNet/IP, and the PROFInet IO RT network. The Modbus-TCP protocol is simply the Modbus protocol used on top of Ethernet-TCP/IP. Modbus-TCP is an open Industrial Ethernet network which has been specified by the Modbus-IDA User Organization. EtherNet/IP is based on the Common Industrial Protocol (CIP), which is also the framework for both the ControlNet and DeviceNet network protocols. PROFInet IO RT is an open network based on the PI Organization standard. The FENA-11 supports 10/100 Mbps transfer rate with network connections made with CAT 5 wiring and RJ-45 connectors. Both star and bus topology options are supported.
Communication cable RJ45 6M

181B1220

Communication cable RJ45 6M
SOCKET RJ45 FEMALE/FEMALE

W70027015

SOCKET RJ45 FEMALE/FEMALE
2nd environment (C3) EMC filter provides for industrial application RFI noise suppression. This filter is for an unrestricted grounded network and is available for frames A and B (external mount, JFI A1 & JFI B1) and C through D (internal mount), the filter is internal and is factory-installed only. CE compliance is dependant on the system & installation.

JFI-A1

2nd environment (C3) EMC filter provides for industrial application RFI noise suppression. This filter is for an unrestricted grounded network and is available for frames A and B (external mount, JFI A1 & JFI B1) and C through D (internal mount), the filter is internal and is factory-installed only. CE compliance is dependant on the system & installation.
2nd environment (C3) EMC filter provides for industrial application RFI noise suppression. This filter is for an unrestricted grounded network and is available for frames A and B (external mount, JFI-A1 & JFI-B1) and C through D (internal mount), the filter is internal and is factory-installed only. CE compliance is dependant on the system & installation.

JFI-B1

2nd environment (C3) EMC filter provides for industrial application RFI noise suppression. This filter is for an unrestricted grounded network and is available for frames A and B (external mount, JFI-A1 & JFI-B1) and C through D (internal mount), the filter is internal and is factory-installed only. CE compliance is dependant on the system & installation.
Ethernet PowerLink is a real-time protocol for standard Ethernet. The protocol guarantees transfer of time-critical data in very short cycles with configurable response time.

REPL-02

Ethernet PowerLink is a real-time protocol for standard Ethernet. The protocol guarantees transfer of time-critical data in very short cycles with configurable response time.
The RSCM-01 resolver signal conditioning board can be used in conjunction with RRIA-01 board to double the resolver voltage. Externally mounted.

RSCM-01-KIT

The RSCM-01 resolver signal conditioning board can be used in conjunction with RRIA-01 board to double the resolver voltage. Externally mounted.
The FEPL 02 Ethernet POWERLINK adapter module enables the connection of a drive to an Ethernet POWERLINK network. Ethernet POWERLINK is a communication profile for Real Time Ethernet. The adapter module is classified as a full Ethernet POWERLINK slave.

FEPL-02

The FEPL 02 Ethernet POWERLINK adapter module enables the connection of a drive to an Ethernet POWERLINK network. Ethernet POWERLINK is a communication profile for Real Time Ethernet. The adapter module is classified as a full Ethernet POWERLINK slave.

Frequently Asked Questions

What is the FENA-01 adapter used for?

The FENA-01 adapter provides EtherNet/IP and Modbus-TCP network connectivity for ABB Low Voltage Drives.

What is the maximum baud rate for EtherNet/IP with FENA-01?

The FENA-01 adapter supports 10, 100, and 1000 Mbit/s for EtherNet/IP communication.

How many devices can be connected with FENA-01 on Modbus-TCP?

With Modbus-TCP, the FENA-01 adapter supports nearly unlimited devices.

What profiles does the FENA-01 adapter support for EtherNet/IP?

The FENA-01 supports ODVA AC/DC Drive, ABB Drives, and Transparent profiles for EtherNet/IP.

What communication profiles are supported by FENA-01 for Modbus-TCP?

The FENA-01 adapter supports ABB Drives and Transparent profiles for Modbus-TCP.

Does FENA-01 support explicit and implicit messaging for EtherNet/IP?

Yes, the FENA-01 adapter supports both explicit and implicit messaging for EtherNet/IP.

What type of Modbus-TCP server does FENA-01 act as?

The FENA-01 adapter acts as a Modbus/TCP server.

What are the benefits of network connectivity with ABB drives?

Network connectivity decreases installation time, reduces downtime, provides more data at lower cost, and allows remote data access.

Which ABB drive models are compatible with FENA-01?

The FENA-01 adapter is compatible with ACS350, ACS850, and ACSM1 Network Connectivity drives.

What is the purpose of ABB's network connectivity?

ABB's network connectivity offers universal connectivity to major controllers and communication networks, enhancing flexibility and scalability.
