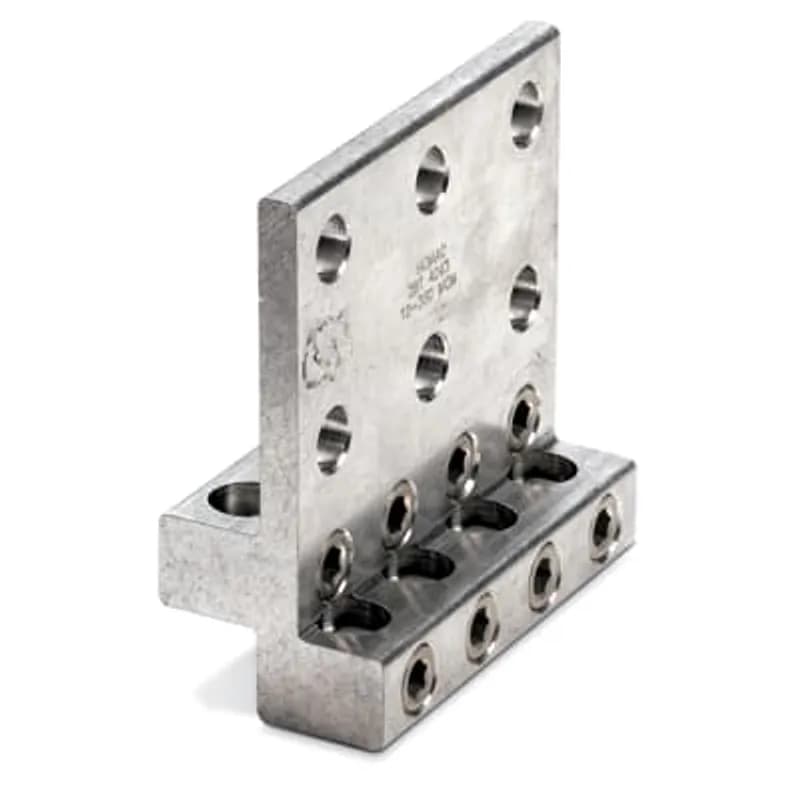

ABB - Installation Products ZBT 5053 - Aluminum Transformer Spade Connectors - ZBT Series, Double Row Mounting Holes, cable range 12-350, mounting holes 6, outlets 10. 4-7/8 inch X 2-7/32 inch X 4-3/4 inch

ABB Installation Products ZBT 5053 Aluminum Transformer Spade Connectors - ZBT Series, Double Row Mounting Holes, cable…

UPC: 783786787029


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ZBT 5053 Aluminum Transformer Spade Connectors are designed for high-current electrical connections in transformer and distribution systems. These double-row connectors accommodate cable sizes from 12 AWG to 350 AWG, making them suitable for heavy-duty applications. The ZBT 5053 features 10 outlets and 6 mounting holes for secure installation on transformers or control panels. Constructed from durable aluminum, these connectors ensure reliable conductivity and long-term performance in industrial environments. The compact dimensions of 4-7/8" x 2-7/32" x 4-3/4" allow for flexible mounting options while maintaining robust electrical integrity. Ideal for utility, renewable energy, and industrial power distribution systems, the ZBT 5053 provides a cost-effective solution for high-current terminations. Compatible with standard spade terminals, these connectors simplify wiring and reduce installation time.
  • Aluminum construction for high conductivity and durability
  • Accommodates cable range 12-350 AWG
  • 10 outlets and 6 mounting holes for flexible installation
  • Compact dimensions: 4-7/8" x 2-7/32" x 4-3/4"
  • Designed for transformer and industrial power distribution applications

Specifications

Application
Transformer Connector
Conductor Range
#12 to 350 kcmil
Connection
Mechanical
Insulation
False
Material
Aluminum
Number Of Conductors
10
Size
4-3/4 inch
Special Features
Compact Zeebar design halves cantilever stress and doubles cable capacity. Dual Rated to accept Copper or Aluminum conductors. High strength Alluminum alloy maximizes electrical and mechanical performance. Ball-Bottom screws ensure maximun conductor contact pressure and break up interstrand oxides
Standard
ANSI C119.4
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.3000 L
Package Weight (Metric)
0.5900 kg
Aluminum Insulated Transformer Kit, #12 - 350 kcmil, Aluminum and Copper, Stud size 1 inch, Eight Conductor

ZVW 5033-1 SL-TS

Aluminum Insulated Transformer Kit, #12 - 350 kcmil, Aluminum and Copper, Stud size 1 inch, Eight Conductor
Aluminum Flood-Seal Multi-Port Connectors - 95 Series Service Entrance Connectors, length 10-1/4 inch, outlets 7

FS 95-7

Aluminum Flood-Seal Multi-Port Connectors - 95 Series Service Entrance Connectors, length 10-1/4 inch, outlets 7
Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Three Conductor

ABK 31000 U

Aluminum Transformer Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Three Conductor
Aluminum Insulated Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud size 1 inch, Six Conductor

CSW 6750 C

Aluminum Insulated Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud size 1 inch, Six Conductor
Aluminum Insulated Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud size 5/8 inch and 1 inch, Eight conductor, with Sleeve

EZC 8750 SLC

Aluminum Insulated Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud size 5/8 inch and 1 inch, Eight conductor, with Sleeve
Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors, length 10 inch, stud size 5/8, outlets 6

FT 95-6

Aluminum Flood-Seal 95 Series Screw-on Transformer Connectors, length 10 inch, stud size 5/8, outlets 6
Set Screw Bar Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud Size 5/8 inch, Four Conductor, with Street Light tap

ABW 4500-58 SLC

Set Screw Bar Aluminum Transformer Connector, #6 - 500 kcmil, Aluminum and Copper, Stud Size 5/8 inch, Four Conductor, with Street Light tap
Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt size 1/2 inch, Twelve Conductor, Step Bar

ZBT 6067 C-AS

Aluminum Transformer Connector, 1/0 - 750 kcmil, Aluminum and Copper, Bolt size 1/2 inch, Twelve Conductor, Step Bar
