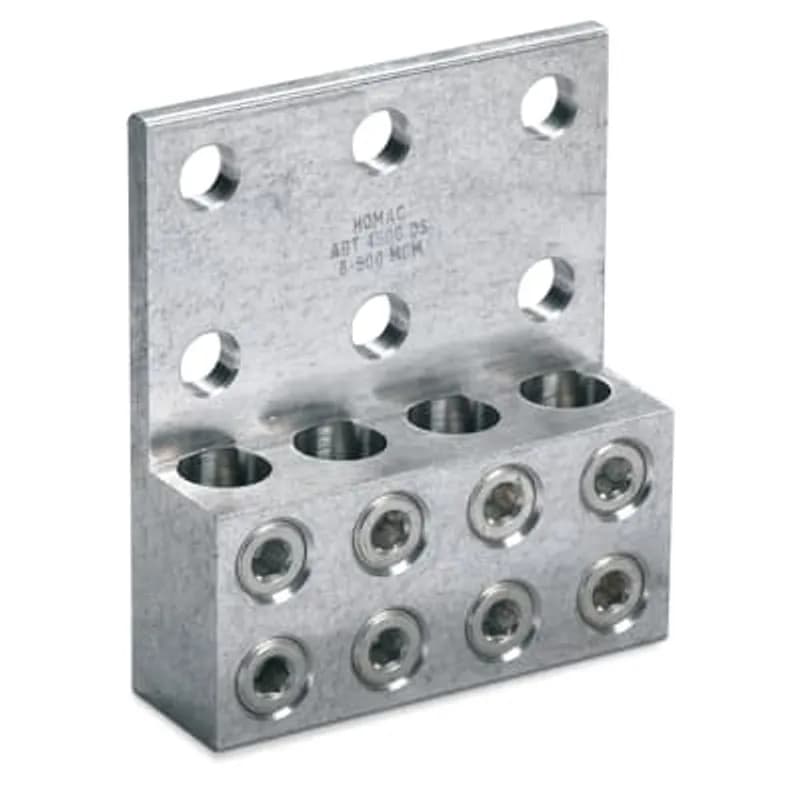

ABB Installation Products ABT 61000 Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range…
UPC: 783786688982
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Conductor range: 1/0 AWG to 1000 kcmil
- Length: 9-3/4 inches for flexible installation
- 6 outlets and 12 mounting holes for versatile termination
- Double set screw design for secure conductor retention
- Aluminum construction for corrosion resistance and durability
Specifications
Application | Pad Mount Transformer Connector |
Conductor Range | 1/0 to 1000 kcmil |
Connection | Mechanical |
Connection Type | Double Set Screws |
Insulation | False |
Material | Aluminum |
Mounting Type | Mounting Holes |
Number of Conductors | 6 |
Series | ABT Double Set Screws Series |
Size | 9-3/4 in |
Special Features | Double Set-Screw Series. High Strength Aluminum Alloy maximizes electrical and Mechanical Performance. Ball-Bottom screws ensure Maximum Conductor Contact pressure and break up interstrand oxides. Dual rated to accept Copper or Aluminum conductors |
Standard | ANSI C119.4 |
Type | Transformer Spade Connector |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 5.0000 L |
Package Weight (Metric) | 2.2680 kg |
FS 175-6 FW
Flood Seal, Aluminum Bus Connector, 1/0 - 1000 kcmil, Aluminum and Copper, Bolt 1/2 inch, Six Tower. With 12 Screws and 12 Flat Stainless Steel Washers
ABS 640
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-250, length 6 inch, boot no. SB 11, stud size 5/8, outlets 6
ABW 7350
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 8-1/2 in, boot no. SB 14, stud size 5/8, outlets 7ABT 1750
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 1/0-750, length 1-1/2 in, mounting holes 2, outlets 1ABT 2750
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series, conductor range 1/0-750, length 3 in, mounting holes 4, outlets 2ABW 8350-1
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 10-9/16 in, boot no. SB 2160, stud size 1, outlets 8
ABT 4350
Aluminum Transformer Spade Connectors - ABT Single Set Screws Series - Double-Row Mounting Holes, conductor range 12-350, length 4-5/8 in, mounting holes 6, outlets 4
Frequently Asked Questions
What conductor sizes are compatible with ABT 61000?
The ABT 61000 supports conductor sizes from 1/0 AWG to 1000 kcmil.
How many mounting holes does the ABT 61000 have?
The ABT 61000 features 12 mounting holes for secure installation.
What is the length of the ABT 61000 connector?
The ABT 61000 has a length of 9-3/4 inches.
How many outlets does the ABT 61000 provide?
The ABT 61000 includes 6 outlets for multiple terminations.
What material is the ABT 61000 made from?
The ABT 61000 is constructed from high-strength aluminum.
