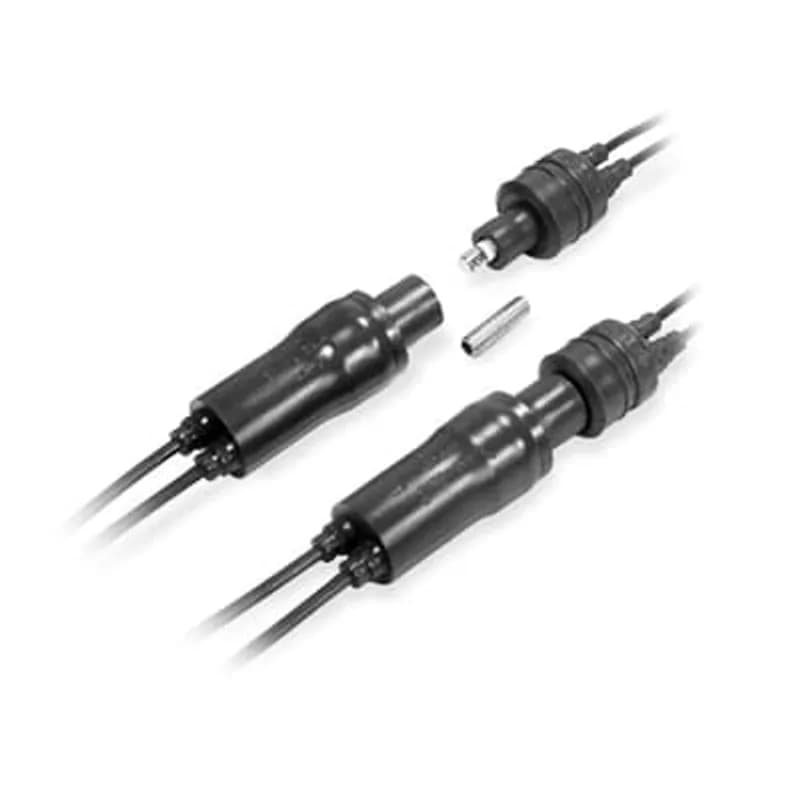

ABB - Installation Products YDC 4 - Copper Flood-Seal Street and Highway Lighting Compression Fuse and Disconnect Kits - YY-Type, non-fused, Main wire size # 4 CU, Tap wire size #14 - #6 CU. Contains Oxide Inhibitor. Consists of Twin Insulating Rocket and Twin Insulating Cap, Lugs, Fuse Clips, Wire, Screws, Washers, Nuts, Silicone Grease.

ABB Installation Products YDC 4 Copper Flood-Seal Street and Highway Lighting Compression Fuse and Disconnect Kits…

UPC: 783786060894

Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB Installation Products YDC 4 is a YY-Type, non-fused Copper Flood-Seal Compression Fuse and Disconnect Kit engineered for street and highway lighting applications. This kit delivers reliable, corrosion-resistant connections for critical infrastructure where long-term electrical integrity is essential. Designed for main wire sizes of #4 AWG copper (CU) and tap wire sizes ranging from #14 to #6 AWG copper (CU), the YDC 4 accommodates standard conductor configurations in outdoor lighting systems. The Flood-Seal design incorporates an oxide inhibitor to prevent corrosion at connection points, ensuring sustained performance in harsh environmental conditions, including exposure to moisture, temperature fluctuations, and contaminants. Each YDC 4 kit includes a comprehensive set of components for secure and insulated connections: twin insulating rocket, twin insulating cap, high-quality lugs, fuse clips, wire, screws, washers, nuts, and silicone grease. The twin insulating components provide dual-layer protection against electrical faults and environmental ingress, while the included silicone grease enhances conductivity and prevents oxidation at contact surfaces. This kit is optimized for street and highway lighting systems where maintenance access is limited and reliability is paramount. The compression fuse and disconnect design allows for quick installation and serviceability, reducing downtime in critical applications. The non-fused configuration supports flexible integration with existing lighting control systems, making it a versatile solution for municipal and commercial installations. Compatible with copper conductors only, the YDC 4 is part of ABB’s trusted line of electrical connection solutions, trusted by electrical contractors and maintenance crews for outdoor lighting infrastructure.
  • YY-Type, non-fused compression fuse and disconnect kit
  • Main wire size: #4 AWG copper (CU)
  • Tap wire sizes: #14 to #6 AWG copper (CU)
  • Includes oxide inhibitor for corrosion resistance
  • Components: twin insulating rocket/cap, lugs, fuse clips, wire, screws, washers, nuts, silicone grease

Specifications

Conductor Range
Main #4 AWG , Tap #14 to #6 AWG
Connection Type
Compression Fuse & Disconnect
Environmental Conditions
WaterTight
Insulation
yes
Material
Copper
Poles
1
Size
#4 CU (Main), #14-#6 CU (Tap)
Type
Flood Seal Connector
Voltage Rating
1000 V
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
Copper Tin Plated Threaded Transformer Stud Adapters for Stud to Cable connections, Cable Size 500 kcmil Copper, Stud Size 1-14 UNS-2B. Length 5-5/32 inch x 1.05 inch Diameter. Dies TH 87 20 1.

2043-13

Copper Tin Plated Threaded Transformer Stud Adapters for Stud to Cable connections, Cable Size 500 kcmil Copper, Stud Size 1-14 UNS-2B. Length 5-5/32 inch x 1.05 inch Diameter. Dies TH 87 20 1.
Aluminum Transformer Spade Connector, Double Set Screw, 8 Position, 6-500 MCM, 10 Long X 5.50 High X 1.50 Wide

ABT 8500 DS-MGE

Aluminum Transformer Spade Connector, Double Set Screw, 8 Position, 6-500 MCM, 10 Long X 5.50 High X 1.50 Wide
Aluminum Transformer Connector, cable size 6 to 500 mcm, Length 8-3/4 inch x 1-3/8 inch X 1-5/8 inch, Black PVC Boot 7-1/2 inch X 9-7/8 inch/Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 6-500, length 8-1/18 in, stud size 1, outlets 6, with Street Light Outlet Option wire size 14 to 2 AWG. Kit to consist of 3 Aluminum bars and 2 Black PVC boots.

ABW1964WPK/ABW6500SL

Aluminum Transformer Connector, cable size 6 to 500 mcm, Length 8-3/4 inch x 1-3/8 inch X 1-5/8 inch, Black PVC Boot 7-1/2 inch X 9-7/8 inch/Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 6-500, length 8-1/18 in, stud size 1, outlets 6, with Street Light Outlet Option wire size 14 to 2 AWG. Kit to consist of 3 Aluminum bars and 2 Black PVC boots.
Aluminum Quick Disconnect Transformer Connector, 6 Positions Double Row, 1 Inch Stud, 6.905 Long X 3.0 Hich X 1.50 Wide, 6-250 MCM

ABW 40-66-1

Aluminum Quick Disconnect Transformer Connector, 6 Positions Double Row, 1 Inch Stud, 6.905 Long X 3.0 Hich X 1.50 Wide, 6-250 MCM
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 5-1/2 in, boot no. SB 17, stud size 5/8, outlets 4, with Street Light Outlet Option, Oxide Inhibitor, with Insulating Boots for Transformer Spade Connector, Black, - 5-15/16 inch long, 2-3/4 inch wide, 3-3/4 inch tall.

ABW4350 SLC SB 17BLK

Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 5-1/2 in, boot no. SB 17, stud size 5/8, outlets 4, with Street Light Outlet Option, Oxide Inhibitor, with Insulating Boots for Transformer Spade Connector, Black, - 5-15/16 inch long, 2-3/4 inch wide, 3-3/4 inch tall.
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 1/0-750, length 7-3/4 inch, stud size 5/8 inch, outlets 4, with Drop-On Insulating Boot for Transformer Spade Connector - Length 8 3/4 inches X Width 2 1/2 inches X Height 5 1/5 inches, Color Black

ABW4750-58CSB2120BLK

Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 1/0-750, length 7-3/4 inch, stud size 5/8 inch, outlets 4, with Drop-On Insulating Boot for Transformer Spade Connector - Length 8 3/4 inches X Width 2 1/2 inches X Height 5 1/5 inches, Color Black
Aluminum Quick Disconnect Transformer Connectors - ABD Series, conductor range 12-350, stud size 1, outlets 8

ABD 8350-1 SL

Aluminum Quick Disconnect Transformer Connectors - ABD Series, conductor range 12-350, stud size 1, outlets 8
Aluminum Quick Disconnect Transformer Connectors - ABD Series, conductor range 12-350, stud size 1, outlets 8, Streetlight Outlet Option, Oxide Inhibiting Compound, Stainless Steel Hardware, with Adapter on Opposite Side to make it a Left Hand Connector

ABD 8350-1 SLLCSS

Aluminum Quick Disconnect Transformer Connectors - ABD Series, conductor range 12-350, stud size 1, outlets 8, Streetlight Outlet Option, Oxide Inhibiting Compound, Stainless Steel Hardware, with Adapter on Opposite Side to make it a Left Hand Connector

How to Install Flood-Seal YY-Type Disconnect Kits

This guide provides step-by-step instructions for the safe and proper installation of Flood-Seal YY-Type Disconnect Kits, including cable preparation, connector assembly, and final housing integration.

Estimated time: 1h

Tools needed:

Crimping tool, Wire brush (for aluminum cables), Screwdriver

Supplies needed:

Silicone grease (HOMAC CST 3095 or equivalent), HM53 inhibitor or equivalent (for aluminum cables), Midget Type Fuse 1 1/2 x 13/32 (if required, not included)

  1. Prepare Load End Housing and Cable

    Select the correct cut-off ring on the Load End housing for your cable size and cut off the end of the housing at the arrow tip. Wipe the cable clean, bevel the insulation on larger cables, and apply silicone grease to the cable end and housing opening. Insert the cable 2 to 3 inches beyond the housing.

  2. Connect Load End Wires

    Strip 1/2 inch of insulation from the cable ends, ensuring not to overstrip. Insert the fuse or connecting link into the YY Load Side assembly. Insert the stripped wires into the connector of the Load End insert and tighten the screws securely. Apply silicone grease and push the insert until it is properly seated in the twin cap housing, pulling on wires as needed.

  3. Prepare Line End Housing and Cable

    Select the correct cut-off ring for the cable being used on the Line End housing. Cut and bevel the cable insulation. Apply silicone grease to the end of the cable and to the cut opening of the housing. Slide the cable through until it extends 2 to 3 inches beyond the housing. Bare the insulation to fit the compression lug.

  4. Crimp Lugs and Assemble Line End Insert

    Crimp the lugs onto the bare cable ends using a proper crimping tool, ensuring the tongue portions of the lugs are back to back. For aluminum cables only, wire brush the pads of the lugs and apply HM53 inhibitor or equivalent, then wipe off excess. Assemble the insert with the lugs, nut, bolt, and Belleville washers, then tighten the bolted assembly securely.

  5. Integrate Line End Insert into Housing

    Lubricate the Y-Type housing with silicone grease. Slide the housing up to the bottom of the insert. Push the insert into the opening of the housing. While holding the Y-Type housing, pull on the cables and slide the housing toward the insert. Push the insert until it is fully seated in the housing.

  6. Complete Final Assembly and Verify

    Plug the Load End assembly, with the installed connecting link (or fuse), into the Line End insert. After completing the assembly, verify that no bare metal extends beyond the insulating cover. WARNING: Danger of Electric Shock! Installation must be performed by trained installers in accordance with all applicable codes and safety rules.
