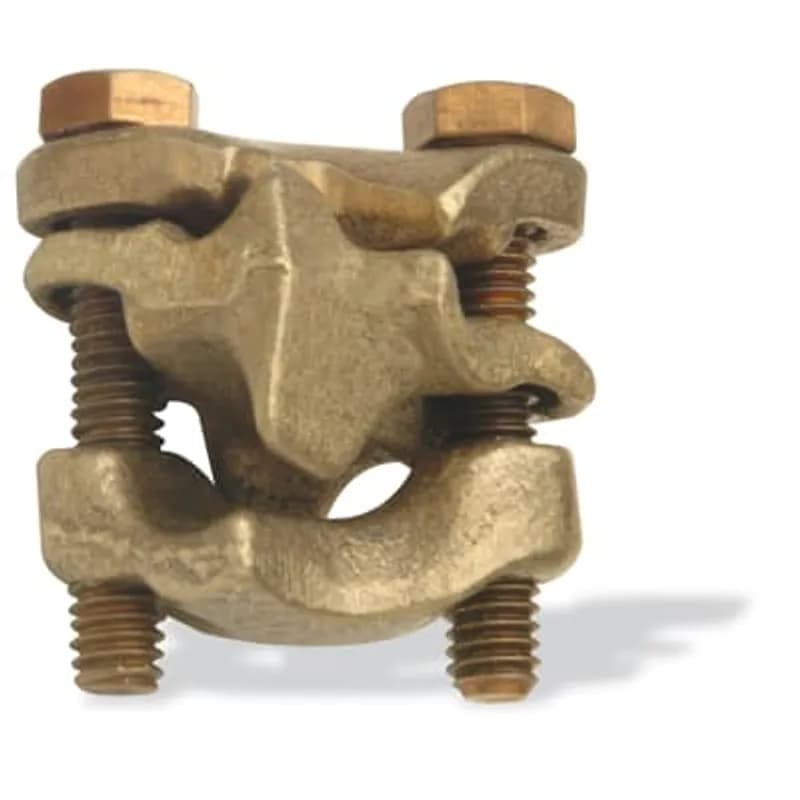

ABB - Installation Products XT12P - Cross Tap Clamp, Tin Plated, Conductor Range Main 4/0 - Stranded AWG 3/0 - 2 ACSR TAP 2 Stranded - 6 Solid 2-6 ACSR.
ABB - Installation Products

XT12P

UPC: 783786113972

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 120

Multiplier: 120

*Contact for lower quantities*

Overview

The ABB XT12P Cross Tap Clamp (SKU: XT12P) is a tin-plated copper clamp designed for secure, reliable connections in overhead and underground distribution systems. This clamp accommodates a main conductor range of 4/0 AWG stranded and a tap conductor range of 2-6 AWG stranded or 2-6 AWG solid, including 2-6 ACSR (Aluminum Conductor Steel Reinforced). The tin plating provides corrosion resistance in outdoor and industrial environments, ensuring long-term conductivity and mechanical integrity. The XT12P is part of ABB’s Installation Products line, a trusted manufacturer in electrical infrastructure solutions. Its cross-tap design allows for perpendicular conductor connections, ideal for branch circuits, service drops, and secondary distribution applications. The clamp’s compact form factor simplifies installation in tight spaces while maintaining high clamping force for stable electrical contact. Key applications include utility pole installations, meter sockets, and junction boxes where multi-conductor branching is required. The clamp’s compatibility with both solid and stranded conductors (including ACSR) ensures versatility across residential, commercial, and light industrial projects. For optimal performance, ensure proper torque is applied during installation to maintain electrical integrity and mechanical stability.
  • Tin-plated copper clamp for corrosion resistance in outdoor/industrial environments
  • Main conductor range: 4/0 AWG stranded
  • Tap conductor range: 2-6 AWG stranded or solid, including 2-6 ACSR
  • Cross-tap design for perpendicular conductor connections
  • Compact form factor for installation in tight spaces

Specifications

Application
Multi-purpose Connector
Bolt Size
5/16 in
Connection
Mechanical
Enclosure
None
Environmental Conditions
All Seasons / Conditions
Finish
Uncoated
Insulation
None
Material
Casting of Copper Alloy, Bolts of Silicon Bronze
Material
Tin Plated
Number of Conductors
2
Number Of Mounting Holes
None
Series
XT
Size
Main 4/0 - Stranded AWG 3/0 - 2 ACSR, Tap 2 Stranded - 6 Solid 2-6 ACSR
Special Features
Design allows for free wrench rotation which speeds installation
Type
Mechanical Connector
Voltage Rating
35 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3700 L
Package Weight (Metric)
0.1680 kg
