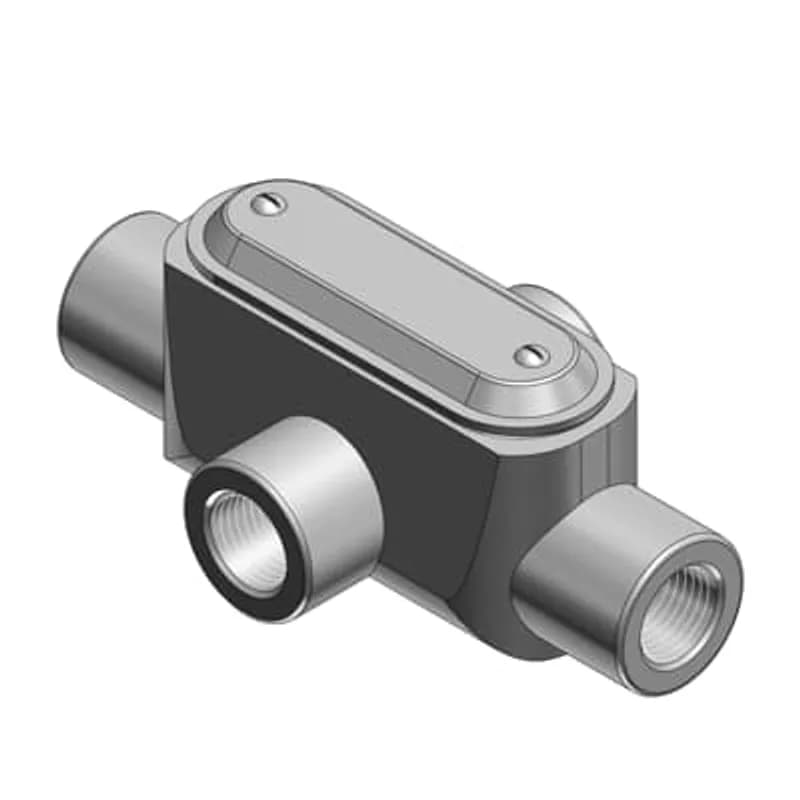

ABB - Installation Products X47CG-TB - 1-1/4 Inch BlueKote Tm Inchx Inch Form 7 Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Tm Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating with Neoprene Gasket

ABB Installation Products X47CG-TB 1-1/4 Inch BlueKote Tm Inchx Inch Form 7 Pre-Assembled Conduit Body, Cover and Gasket…

UPC: 786210917078

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB X47CG-TB is a 1-1/4 Inch Form 7 pre-assembled conduit body, complete with a cover and gasket, designed for robust electrical installations. Manufactured by ABB Installation Products, this conduit body offers superior protection and ease of use in various industrial and commercial settings. The body is constructed from durable gray iron, featuring a zinc plating and a baked-on epoxy powder coat for enhanced corrosion resistance. Crucially, it incorporates ABB's proprietary BlueKote™ internal coating, providing an exceptionally smooth interior surface that facilitates wire pulling and protects conductors from abrasion. This internal coating is specifically engineered to reduce pulling tension, saving time and effort during installation. The cover is made from stamped steel, also with a zinc plating for durability, and is paired with a high-quality neoprene gasket. This gasket ensures a tight seal, protecting the conduit interior from dust, moisture, and other environmental contaminants, which is critical for maintaining the integrity of electrical systems, especially in harsh conditions. The combination of materials and coatings makes the X47CG-TB resistant to a wide range of environmental factors, ensuring long-term performance and reliability. This conduit body is ideal for use in applications requiring reliable conduit connections and changes in direction. Its pre-assembled nature with the cover and gasket significantly reduces installation time and the risk of missing components on-site. The 1-1/4 inch size is suitable for a variety of conduit sizes and applications. The distinctive blue color, derived from the BlueKote™ internal coating, also aids in identification and visual inspection. Trust ABB Installation Products for dependable conduit solutions that meet stringent industry standards and simplify your electrical project requirements. SKU: X47CG-TB. UNSPSC Code: 39131708.
  • 1-1/4 Inch Form 7 pre-assembled conduit body, cover, and gasket
  • Durable gray iron body with zinc plating and baked-on epoxy powder coat
  • BlueKote™ internal coating for smooth wire pulling and conductor protection
  • Stamped steel cover with zinc plating and neoprene gasket for environmental sealing
  • Designed for reliable electrical conduit connections and directional changes

Specifications

Application
Conduit Bodies are Installed In Conduit Systems to Connect Sections, Act As Pull Outlets When Conductors are Being Installed and Provide Easy Access for Splices In Branch Conductors
Finish
Zinc Plated with Epoxy Powder Coat
Form
Form 7
Hub Size
1-1/4
Material Quality
Gray Iron
Special Features
BlueKote&trade, Teflon&reg, - Based Internal Finish Provides a Slick, Easy-Glide Internal Surface Which Significantly Lowers the Amount of Force Necessary to Pull Wires
Standard
UL E2969, CSA
Type
Pre-Assembled Form 7 Conduit Body, Cover & Gasket
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
4.6300 L
Package Weight (Metric)
2.1000 kg
