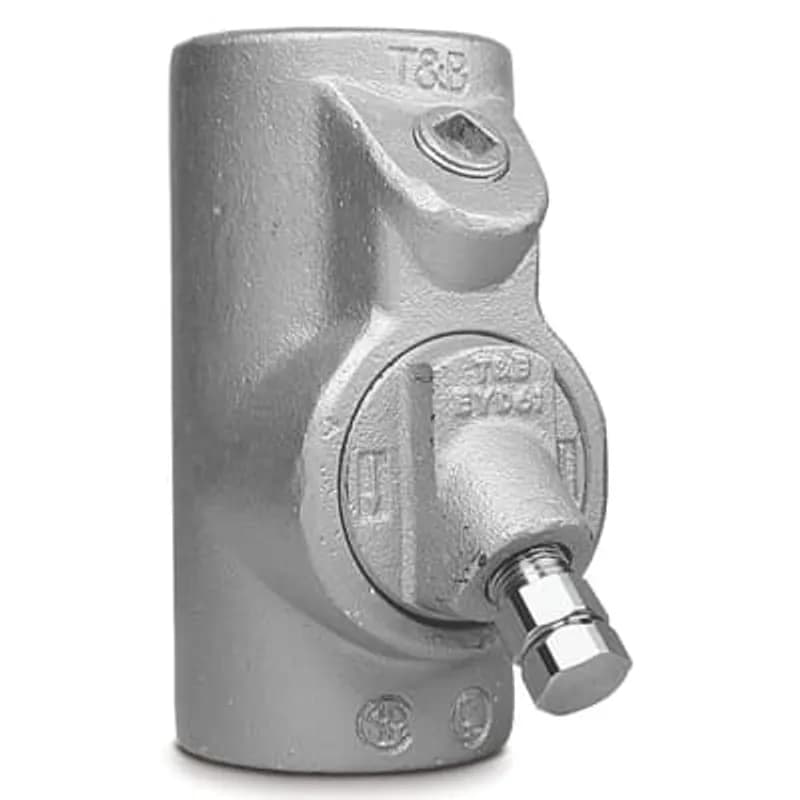

ABB - Installation Products EYD11-TB - 1/2 Inch EYD Drain Seal, Body and Inspection or Drain Cover Gray Iron and/or Ductile Iron, Closure for Drain Aluminum, or Ductile Iron, Small Closure Plug Gray Iron and/or Steel, Drain Stainless Steel, Removable Nipples Steel

ABB Installation Products EYD11-TB 1/2 Inch EYD Drain Seal, Body and Inspection or Drain Cover Gray Iron and/or Ductile…

UPC: 786210739731


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB EYD11-TB 1/2 Inch EYD Drain Seal is a precision-engineered closure assembly designed for industrial drain systems. This product combines a drain seal, inspection cover, and closure plug in a single unit, offering versatility for multiple applications. The body is constructed from gray iron or ductile iron for corrosion resistance and structural integrity, while the closure features aluminum or ductile iron for lightweight durability. The drain cover is available in stainless steel for enhanced corrosion resistance in harsh environments. The removable nipple is made of steel, ensuring compatibility with standard piping systems. This assembly is ideal for use in manufacturing plants, wastewater treatment facilities, and commercial buildings where reliable drainage and inspection access are critical. The product meets UNSPSC code 39131708, classifying it as a drain or floor drain component. Installation is straightforward with standard tools, and the design allows for easy removal of the closure plug for maintenance or inspection. The 1/2 inch size ensures compatibility with common industrial piping standards.
  • 1/2 inch drain seal and closure assembly
  • Body and inspection cover in gray iron or ductile iron
  • Closure available in aluminum, ductile iron, or stainless steel
  • Removable steel nipple for compatibility with standard piping
  • UNSPSC code 39131708 for industrial drain components

Specifications

Application
Restrict the Passage of Gases, Vapors, or Flames from One Portion of the Electrical Installation to Another
Finish
Electrogalvanized and Aluminum Acrylic Paint
Hub Size
1/2
Length
3.81 in
Length
96.774 mm
Material Quality
Iron
Special Features
Large Openings with Threaded Closures to Provide Easy Access to Conduit Hubs for Making Dams
Standard
UL E193396, CSA
Type
Drain and Sealing Fitting
Package Dimensions (L x W x H)
6 IN x 4.5 IN x 4 IN
Package Dimensions (L x W x H)
15.24 cm x 11.43 cm x 10.16 cm
Package Weight (Imperial)
1.6400 L
Package Weight (Metric)
0.7440 kg
