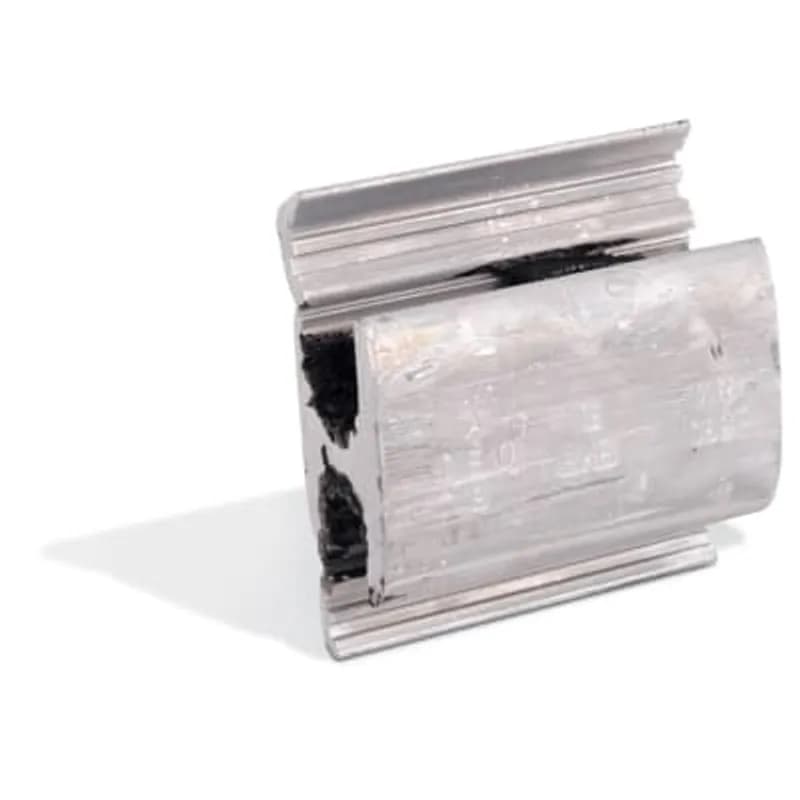

ABB - Installation Products WR189R - Aluminum H-Tap Connector, Wide Range, Industry Standard Size Code 2, Conductor Range Main ASCR 1/0, #1, #2, Stranded 2/0, 1/0, #1, #2, Solid 3/0, 2/0, 1/0, #1, #2 TAP ASCR #2, #4, #6, Stranded #1, #2, #3, #4, #6, Solid #2, #4, #6, Die O, 25 Pieces

ABB Installation Products WR189R Aluminum H-Tap Connector, Wide Range, Industry Standard Size Code 2, Conductor Range…

UPC: 783786534036

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call (262) 252-1600 or email [email protected] for pricing and availability.

Overview

The ABB WR189R is an aluminum H-tap connector (SKU: WR189R) designed for secure electrical tap connections in industrial and utility applications. Manufactured by ABB Installation Products, this connector meets Industry Standard Size Code 2, ensuring compatibility with common conductor configurations. The WR189R supports main conductors including ASCR (1/0, #1, #2), Stranded (2/0, 1/0, #1, #2), and Solid (3/0, 2/0, 1/0, #1, #2). Tap conductors include ASCR (#2, #4, #6), Stranded (#1, #2, #3, #4, #6), and Solid (#2, #4, #6). This connector uses a Die O crimp for reliable termination, meeting standard crimp requirements for consistent performance. Each package contains 25 pieces, providing efficient bulk packaging for installation projects. The aluminum construction offers corrosion resistance and electrical conductivity suitable for outdoor and indoor environments. This connector is commonly used in power distribution, substations, and industrial wiring where secure tap connections are required. UNSPSC code: 39121409. Country of origin: US.
  • Industry Standard Size Code 2 for compatibility with common conductor sizes
  • Supports main conductors: ASCR (1/0, #1, #2), Stranded (2/0, 1/0, #1, #2), Solid (3/0, 2/0, 1/0, #1, #2)
  • Supports tap conductors: ASCR (#2, #4, #6), Stranded (#1, #2, #3, #4, #6), Solid (#2, #4, #6)
  • Uses Die O crimp for secure and standard-compliant termination
  • 25 pieces per package for efficient bulk installation

Specifications

Application
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors
Connection
Compression
Environmental Conditions
All Seasons / Conditions
Finish
Tinned
Housing Material
Aluminum
Housing Material
Aluminium
Insulation
None
Mounting
None
Number Of Conductors
2
Size
Length 1-11/16 inch
Special Features
Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area. Tin-Plated
Standard
RUS Accepted. Complies with ANSI C119.4 Specifications
Temperature Rating, Maximum
194 F
Temperature Rating, Maximum
90 C
Temperature Rating, Minimum
194 F
Temperature Rating, Minimum
90 C
Type
H-Type Compression Tap Connector
Wire Size
Main: 1/0 to #3 ACSR or 2/0 to #2 STR or 3/0 to #1 SOL AWG , Tap: #2 to #6 ACSR or #1 to #6 STR or 1/0 to #6 SOL AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.0900 L
Package Weight (Metric)
0.0410 kg
The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

IPLMD350-6

The Polaris IPLMD350-6 Multi-Tap Mountable Dual-Sided Entry Connector features 6 ports sized for 350 MCM - 6 AWG wires. Mounting holes on either side of the connector allow for direct mounting to troughs, panels or wireways with 1/4†bolts. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each dual-sided port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Connector, Two-Way, 2/0 Aluminum to 1/0 Copper

269-31499-10

Connector, Two-Way, 2/0 Aluminum to 1/0 Copper
15/25kV, 200 Amp, RLR Contact, Replacement Elbow Connector for Aluminum and Copper Conductors, 230 - for Conductor size #1 - Stranded/Compressed, 1/0 Compact/Solid

00400230

15/25kV, 200 Amp, RLR Contact, Replacement Elbow Connector for Aluminum and Copper Conductors, 230 - for Conductor size #1 - Stranded/Compressed, 1/0 Compact/Solid
15-35kV 200 Amp, Loadbreak LR Copper Contact - 3/0 Stranded/Compressed or 4/0 Solid/Compact

02702260

15-35kV 200 Amp, Loadbreak LR Copper Contact - 3/0 Stranded/Compressed or 4/0 Solid/Compact
Aluminum One-Hole Lugs - common die series - straight lugs, conductors - AL or CU, Wire Range 300 Stranded, 300 Compressed, 350 Compact, 266.8 (18/1) ACSR, installing dies 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, CSA 28. Length 3-41/64 inch. Pad 1-1/4 inch wide x 1-11/32 inch long x 11/32 inch thick. (1) 9/16 inch diameter hole. Barrel 1-19/32 inch. Dual Rated for Aluminum and Copper Conductors

SA 300-48

Aluminum One-Hole Lugs - common die series - straight lugs, conductors - AL or CU, Wire Range 300 Stranded, 300 Compressed, 350 Compact, 266.8 (18/1) ACSR, installing dies 96, 299, 655, 321, 316, 13A, 1 1/8-1, 472, CSA 28. Length 3-41/64 inch. Pad 1-1/4 inch wide x 1-11/32 inch long x 11/32 inch thick. (1) 9/16 inch diameter hole. Barrel 1-19/32 inch. Dual Rated for Aluminum and Copper Conductors
Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #6 Stranded - Compressed, #6 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors

SAKM 6-48

Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #6 Stranded - Compressed, #6 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Blue Cap. Dual Rated for Aluminum and Copper Conductors
Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #4 Stranded - Compressed, #4 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors

SAKM 4-48

Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #4 Stranded - Compressed, #4 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors
Aluminum Meter Socket Lug - One-Hole - for 3/8 inch bolt, Wire Range #4 Stranded - Compressed, #4 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 27/64 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors

SAKM 4-38

Aluminum Meter Socket Lug - One-Hole - for 3/8 inch bolt, Wire Range #4 Stranded - Compressed, #4 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 27/64 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors
