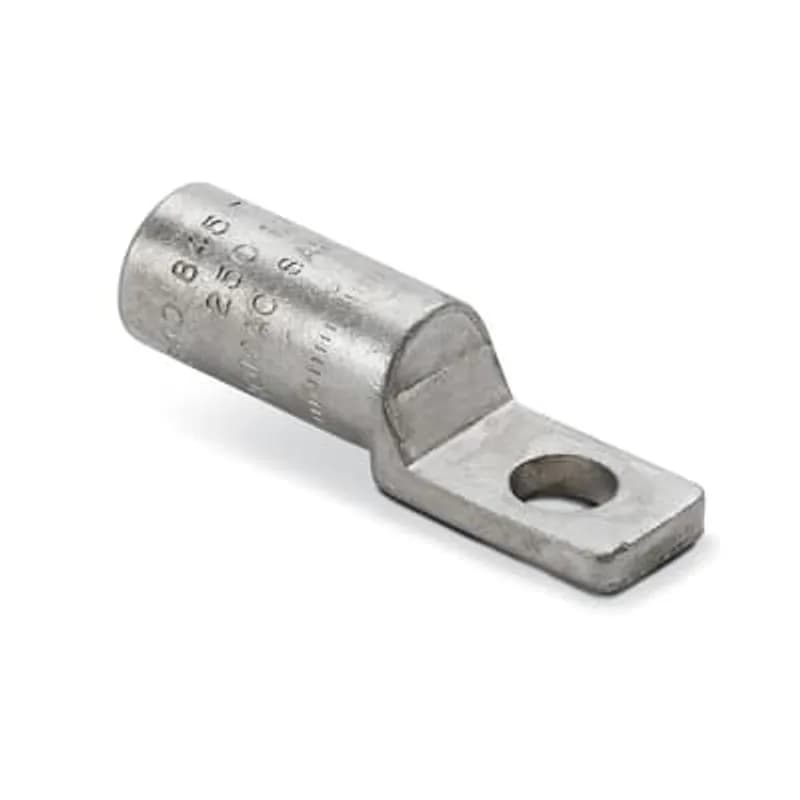

ABB - Installation Products SAKM 4-48 - Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #4 Stranded - Compressed, #4 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors

ABB Installation Products SAKM 4-48 Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #4 Stranded…

UPC: 783786748303

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

ABB Installation Products SAKM 4-48 Aluminum Meter Socket Lug is a precision-engineered lug designed for secure electrical connections in meter socket installations. This lug accommodates a 1/2 inch bolt and supports wire ranges from #4 stranded to #4 compact, making it suitable for both aluminum and copper conductors (dual-rated). The barrel measures 1-3/4 inches in length, providing ample space for wire insertion and compression. The one-hole pad features a 9/16 inch diameter hole and measures 1-9/32 inches long by 1/4 inch thick, ensuring compatibility with standard mounting hardware. A corrosion-resistant oxide inhibitor is applied to maintain long-term conductivity and prevent degradation. The orange cap provides visual identification and protection during installation. Compatible with installing dies 840, 845, TX, 76, 249, and 11A, this lug is a reliable choice for residential and commercial meter socket applications where secure, compliant connections are required. The 3-1/8 inch overall length ensures proper fitment in standard meter socket configurations.
  • Dual-rated for aluminum and copper conductors (#4 stranded/compressed wire range)
  • 1/2 inch bolt compatibility with 9/16 inch diameter one-hole pad
  • Barrel length: 1-3/4 inches; overall length: 3-1/8 inches
  • Oxide inhibitor coating for corrosion resistance and conductivity
  • Compatible with installing dies: 840, 845, TX, 76, 249, 11A

Specifications

Application
For Meter Pan and General Applications
Connection
Compression
Housing Material
Aluminum
Housing Material
Aluminium
Size
Length 3-1/4 inches
Special Features
All Installation done with one die to reduce your die inventory. Dual-Rated for use with Aluminum and Copper Conductors. Bores coated with Oxide Inhibitor to Prevent Oxidation. Marked with Conductor Sizes and Die References for Easy Identification. Made of Aluminum for High Strength and High Conductivity
Standard
ANSI C119.4
Type
Compression Lug One Hole Meter Socket
Wire Size
#4 STR AWG , #4 COMPR AWG , #4 COMPT AWG
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1500 L
Package Weight (Metric)
0.0680 kg
Tin Plated Aluminum Meter Socket Lug - One-Hole - for 1/2 inch bolt, Wire Range #4 Stranded - Compressed, #4 Compact. Installing dies 840, 845, TX, 76, 249, 11A. Length 3-1/8 inch. One Hole Pad 9/16 inch Diameter. Pad 1-9/32 inch long x 1/4 inch thick. Barrel 1-3/4 inch. Oxide Inhibitor. Orange Cap. Dual Rated for Aluminum and Copper Conductors
