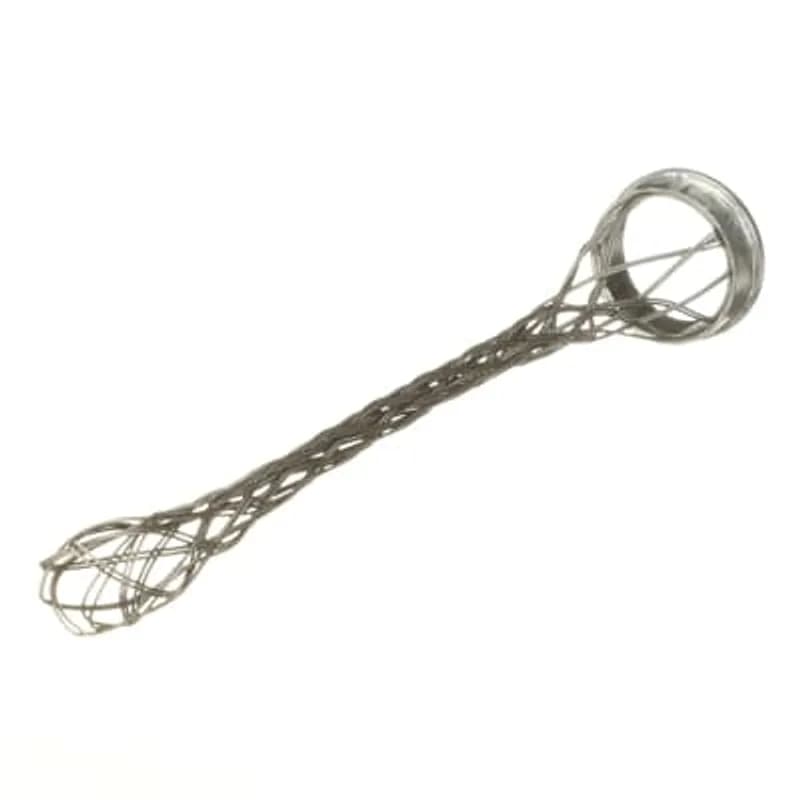

ABB Installation Products WMG-PC9 Stainless Steel Wire Mesh Grip for Use with Liquidtight Cord Fittings, Grip Range 0.750…
UPC: 786210770062
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Constructed from durable stainless steel for corrosion resistance.
- Provides secure strain relief and mechanical support for cables.
- Designed for use with liquidtight cord fittings.
- Accommodates a grip range of 0.750 to 0.875 inches.
- Ensures reliable cable connections in industrial environments.
Specifications
Material | Stainless Steel |
Size | 0.750 to 0.875 Inch |
Package Dimensions (L x W x H) | 4 IN x 4 IN x 3 IN |
Package Dimensions (L x W x H) | 10.16 cm x 10.16 cm x 7.62 cm |
Package Weight (Imperial) | 0.0800 L |
Package Weight (Metric) | 0.0360 kg |
RTKSS-075-6
MC Cable Connector, SS, 3/4" NPT, range over jacket 1.080 - 1.205, range over armor .970 - 1.125
EXS05MMC1
Double Compression Cable Gland, M25 Thread, Flameproof Ex d and Increased Safety Ex e, Suitable for use with SWA, SWB, and AWA Conduit, IP66 Rating, Inner Cable Range 12 to 16mm, Outer Cable Range 16 to 21mm, 316 Stainless Steel
WMG-PC8
Stainless Steel Wire Mesh Grip for Use with 3/4 Inch Cord Fittings, UL, CSA, Grip Range 0.375 to 0.500 Inch
GSB670NP
Two Piece Inner Sleeve Connector for Round Range, Length 15.2mm, Inner Diameter .670 Inches/17.02mm, Outer Diameter .750 Inches/19.05mm, Color Silver, Copper Alloy, Tin PlatedGSC840NP
Two Piece Outer Sleeve Connector for Round Range, Length 11.2mm, Inner Diameter .840 Inches/21.34mm, Outer Diameter .920 Inches/23.37mm, Color Silver, Copper Alloy, Nickel Plated
Frequently Asked Questions
How do I select the correct WMG-PC wire mesh grip?
First, determine the cord diameter, then choose the desired cable gland to match, which will indicate the appropriate wire mesh catalog number.
Can WMG-PC series grips be used with aluminum or steel cable glands?
Yes, the WMG-PC series wire mesh grips are designed to be used in aluminum or steel cable glands.
How should WMG-PC series products be installed?
The product must be installed in accordance with applicable national and local electrical codes.
What standards does the WMG-PC series conform to?
The WMG-PC series conforms to UL514B, CSA C22.2-18.3, and RoHS 2011/65/EU (incorporating 2015/863 amendment).
What cable glands are compatible with WMG-PC9?
WMG-PC9 is compatible with specific ASG and MSG series cable glands, including 2942AL, 2536, 2546, 2211, 2216, 4982AL, 2253, and 2275.
What materials are used in WMG-PC series wire mesh grips?
The wire mesh is made of stainless steel, and it features an aluminum retaining ring.
What is the cable range for WMG-PC9?
The WMG-PC9 is designed for a cable range of 19.05 mm to 22.22 mm (0.750 inches to 0.875 inches).
What cable glands are compatible with WMG-PC9?
WMG-PC9 is compatible with specific ASG and MSG series cable glands, including 2942AL, 2536, 2546, 2211, 2216, 4982AL, 2253, and 2275.
What standards does the WMG-PC series conform to?
The WMG-PC series conforms to UL514B, CSA C22.2-18.3, and RoHS 2011/65/EU (incorporating 2015/863 amendment).
How do I select the correct WMG-PC wire mesh grip?
First, determine the cord diameter, then choose the desired cable gland to match, which will indicate the appropriate wire mesh catalog number.
How to Assemble a WMG-PC9 Wire Mesh Grip
This guide provides step-by-step instructions for assembling a WMG-PC9 wire mesh grip onto a cable or cord, ensuring proper strain relief and connection to an enclosure.
Estimated time: 15m
Tools needed:
Wire cutters, Flat nose pliers, Wrench or adjustable pliers
Supplies needed:
WMG-PC9 Wire Mesh Grip, Compression gland nut, Bushing, Connector body, Cable or cord
- Disassemble Original Connector
Remove the original retaining ring from the connector. If a replacement gland nut is supplied with the grip, also remove the original gland nut from the connector body.
- Prepare Cord and Slide Components
Cut the cord squarely. Slide the compression gland nut onto the cord. Compress the wire mesh grip and slide it onto the cable. For maximum diameter cords, preform the wire mesh loops using flat nose pliers to round them. Then, slide the bushing onto the cord.
- Mount Connector Body and Insert Cord
Secure the connector body to the enclosure if using threaded hub applications. For knockout applications, the assembly can be completed before installing to the enclosure. Insert the prepared cord through the connector body to achieve the desired working length of conductors.
- Assemble Wire Mesh Grip
Slide the bushing into the connector body. Then, slide the wire mesh grip along the cord until it lays flat against the bushing. Note: In some installations, the cord jacket may need to be stripped back to pass through the body.
- Secure Gland Nut
Slide the compression gland nut along the wire mesh grip and tighten it onto the connector body. Remove all slack from the mesh by smoothing it out along the cord to ensure proper strain relief.
