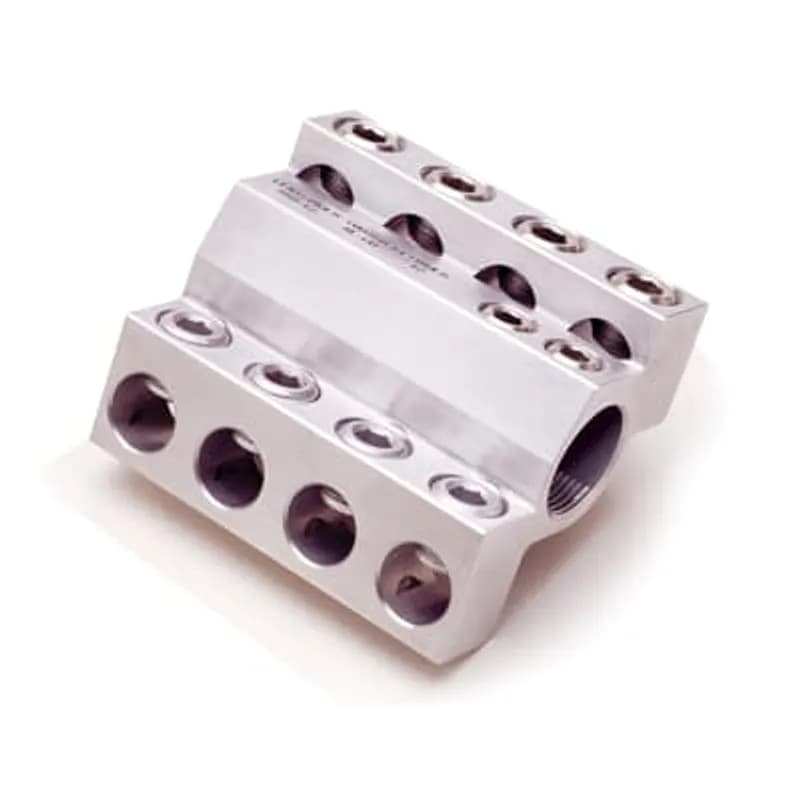

ABB - Installation Products TWB6359SD58 - Aluminum Transformer Stud Connector Quick Disconnect - 350 Series, Ports 6, Cable Range #12 - 350 kcmil, Stud Size 5/8 inch, Street Light Option

ABB Installation Products TWB6359SD58 Aluminum Transformer Stud Connector Quick Disconnect - 350 Series, Ports 6, Cable Range…

UPC: 783786436729


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 12

Multiplier: 12

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB TWB6359SD58 is a robust Aluminum Transformer Stud Connector designed for efficient and reliable electrical connections. Manufactured by ABB - Installation Products, this connector belongs to the 350 Series and features a quick disconnect mechanism for ease of use and maintenance. It is engineered to accommodate a wide cable range, from #12 AWG up to 350 kcmil, providing versatility for various transformer applications. The connector is equipped with six ports, allowing for multiple cable terminations. A key specification is its 5/8 inch stud size, ensuring a secure and stable connection to transformer terminals. This model also includes a street light option, indicating its suitability for specialized infrastructure projects. The aluminum construction offers excellent conductivity and corrosion resistance, crucial for long-term performance in electrical systems. Its design facilitates quick and secure connections, minimizing downtime during installation or maintenance. The TWB6359SD58 is ideal for utility, industrial, and commercial applications where reliable transformer connections are paramount. Its UNSPSC code is 39121443. This connector is a vital component for ensuring the integrity and efficiency of electrical power distribution systems, particularly in scenarios involving street lighting infrastructure.
  • ABB - Installation Products TWB6359SD58
  • Aluminum Transformer Stud Connector, Quick Disconnect
  • 350 Series, 6 Ports
  • Cable Range: #12 - 350 kcmil
  • Stud Size: 5/8 inch, Street Light Option

Specifications

Application
Stud-Mount Transformer Connector, Quick Disconnect
Conductor Range
#12 to 350 kcmil
Height
3.1 in
Height
78.74 mm
Material
Aluminum
Size
height 3.1 inch, 78 mm, width 2.6 inch, 66 mm, length 2.6 inch, 66 mm
Special Features
High-Strength Aluminum Alloy Maintains Constant Bolting Pressure on Conductors. Dual-Rated to Accept Aluminum or Copper Conductors. Prefilled with Oxide Inhibitor to Seal out Moisture after Installation. Compact Design Doubles Cable Capacity and Halves Cantilever Stress. Street Light Option
Standard
ANSI C119.4
Type
Transformer Connector - TWB Series
Width
2.6 in
Width
66.04 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Aluminum Insulated Transformer Kit, #12 - 350 kcmil, Aluminum and Copper, Stud size 1 inch, Eight Conductor

ZVW 5033-1 SL-TS

Aluminum Insulated Transformer Kit, #12 - 350 kcmil, Aluminum and Copper, Stud size 1 inch, Eight Conductor
Transformer Connectors-TWB 350 series, bare TWB bars, quick disconnect, cable range 12-350, height 2.6 inch, 66 mm, width 2.6 inch, 66 mm, length 4.1 inch, 105 mm, stud size 5/8 inch, ports 8

TWB8359D58

Transformer Connectors-TWB 350 series, bare TWB bars, quick disconnect, cable range 12-350, height 2.6 inch, 66 mm, width 2.6 inch, 66 mm, length 4.1 inch, 105 mm, stud size 5/8 inch, ports 8
Copper Flood-Seal Street and Highway Lighting Compression Fuse and Disconnect Kits - YY-Type, non-fused, Main wire size # 4 CU, Tap wire size #14 - #6 CU. Contains Oxide Inhibitor. Consists of Twin Insulating Rocket and Twin Insulating Cap, Lugs, Fuse Clips, Wire, Screws, Washers, Nuts, Silicone Grease.

YDC 4

Copper Flood-Seal Street and Highway Lighting Compression Fuse and Disconnect Kits - YY-Type, non-fused, Main wire size # 4 CU, Tap wire size #14 - #6 CU. Contains Oxide Inhibitor. Consists of Twin Insulating Rocket and Twin Insulating Cap, Lugs, Fuse Clips, Wire, Screws, Washers, Nuts, Silicone Grease.
Aluminum Transformer Spade Connector, Double Set Screw, 8 Position, 6-500 MCM, 10 Long X 5.50 High X 1.50 Wide

ABT 8500 DS-MGE

Aluminum Transformer Spade Connector, Double Set Screw, 8 Position, 6-500 MCM, 10 Long X 5.50 High X 1.50 Wide
Aluminum Transformer Connector, cable size 6 to 500 mcm, Length 8-3/4 inch x 1-3/8 inch X 1-5/8 inch, Black PVC Boot 7-1/2 inch X 9-7/8 inch/Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 6-500, length 8-1/18 in, stud size 1, outlets 6, with Street Light Outlet Option wire size 14 to 2 AWG. Kit to consist of 3 Aluminum bars and 2 Black PVC boots.

ABW1964WPK/ABW6500SL

Aluminum Transformer Connector, cable size 6 to 500 mcm, Length 8-3/4 inch x 1-3/8 inch X 1-5/8 inch, Black PVC Boot 7-1/2 inch X 9-7/8 inch/Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 6-500, length 8-1/18 in, stud size 1, outlets 6, with Street Light Outlet Option wire size 14 to 2 AWG. Kit to consist of 3 Aluminum bars and 2 Black PVC boots.
Aluminum Quick Disconnect Transformer Connector, 6 Positions Double Row, 1 Inch Stud, 6.905 Long X 3.0 Hich X 1.50 Wide, 6-250 MCM

ABW 40-66-1

Aluminum Quick Disconnect Transformer Connector, 6 Positions Double Row, 1 Inch Stud, 6.905 Long X 3.0 Hich X 1.50 Wide, 6-250 MCM
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 6-500, length 6-1/16 inch, stud size 1, outlets 4, with Street Light Outlet Option, Oxide Inhibitor, with Street Light tap, with Drop-On Insulating Boot for Transformer Spade Connector - Length 8 3/4 inches X Width 2 1/2 inches X Height 5 1/5 inches, Color Black

ABW4500SLCSB2120-1BK

Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 6-500, length 6-1/16 inch, stud size 1, outlets 4, with Street Light Outlet Option, Oxide Inhibitor, with Street Light tap, with Drop-On Insulating Boot for Transformer Spade Connector - Length 8 3/4 inches X Width 2 1/2 inches X Height 5 1/5 inches, Color Black
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 5-1/2 in, boot no. SB 17, stud size 5/8, outlets 4, with Street Light Outlet Option, Oxide Inhibitor, with Insulating Boots for Transformer Spade Connector, Black, - 5-15/16 inch long, 2-3/4 inch wide, 3-3/4 inch tall.

ABW4350 SLC SB 17BLK

Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 5-1/2 in, boot no. SB 17, stud size 5/8, outlets 4, with Street Light Outlet Option, Oxide Inhibitor, with Insulating Boots for Transformer Spade Connector, Black, - 5-15/16 inch long, 2-3/4 inch wide, 3-3/4 inch tall.

Frequently Asked Questions

What cable sizes does the TWB6359SD58 support?

The ABB TWB6359SD58 supports a cable range from #12 AWG up to 350 kcmil.

What is the stud size for this ABB connector?

The ABB TWB6359SD58 features a 5/8 inch stud size for secure connections.

Does this connector have a street light option?

Yes, the ABB TWB6359SD58 includes a street light option.

What material is the ABB TWB6359SD58 connector made from?

The ABB TWB6359SD58 is constructed from aluminum.
