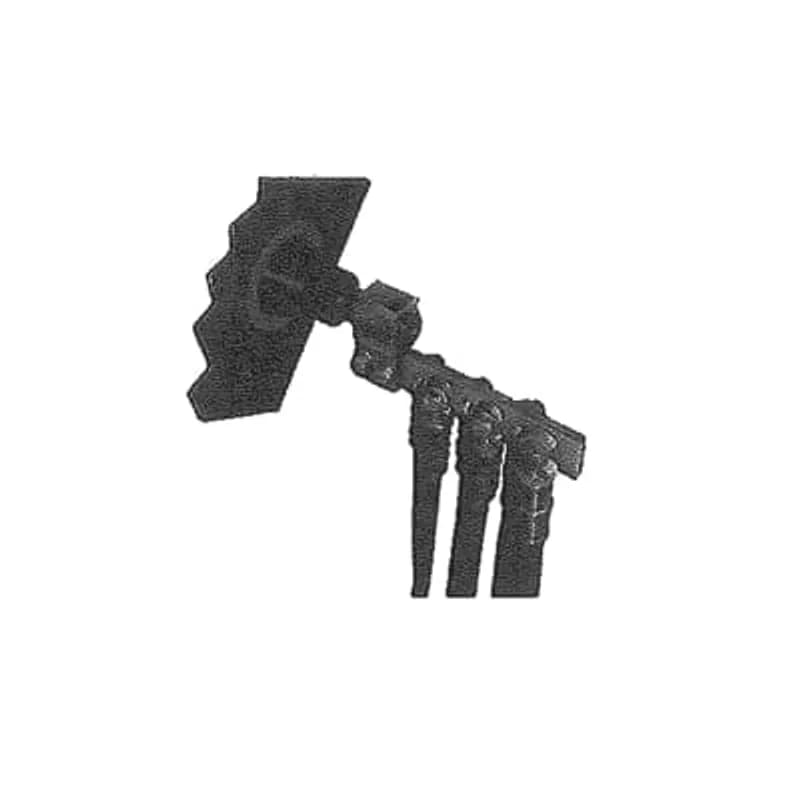

ABB - Installation Products TSL6SE58 - Threaded Stud Transformer Connector - 5/8-11 Threaded Stud, 6 Positions, Wire Range #6 - 500 kcmil and #12 solid - #4 stranded , use with LAC and LCU Lugs. Oxide Inhibiting Compound. 650 Amp Maximum.
ABB - Installation Products

TSL6SE58

UPC: 783786833207

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 6

Multiplier: 6

*Contact for lower quantities*

Overview

The ABB TSL6SE58 Threaded Stud Transformer Connector (SKU: TSL6SE58) from ABB Installation Products is engineered for robust electrical connections in transformer applications. This connector features a 5/8-11 threaded stud, providing a secure and reliable mounting point for transformer leads. With six distinct positions, it offers ample capacity for multiple conductor terminations, accommodating a wide wire range from #6 to 500 kcmil for main conductors. For control or auxiliary circuits, it supports #12 solid and #4 stranded conductors, ensuring versatility for various wiring needs. The TSL6SE58 is designed for use with LAC and LCU lugs, facilitating a streamlined and compliant installation process. To ensure optimal conductivity and longevity, an oxide inhibiting compound is included, preventing corrosion and maintaining electrical integrity over time. This connector boasts a maximum current rating of 650 Amps, making it suitable for high-power transformer applications. Its durable construction and precise engineering from ABB Installation Products guarantee dependable performance in demanding electrical environments. The threaded stud connection type ensures a mechanically strong and electrically sound interface, crucial for transformer safety and efficiency. This component is essential for reliable power distribution and management within transformer systems.
  • 650 Amp Maximum Current Rating
  • 5/8-11 Threaded Stud for secure mounting
  • 6 Positions for multiple conductor terminations
  • Accommodates wire range #6 - 500 kcmil
  • Includes oxide inhibiting compound for corrosion prevention

Specifications

Amperage Rating
650 A
Application
For Use with Single Bolt LAC, LCN or CAL Lugs
Bolt Size
3/8 in
Connection
Mechanical
Material
Aluminum
Special Features
Terminals have 3/8 inch Plated Steel Bolts with Captive Belleville Washers, Bus is Notched to Accept the Locking Boss on Type LAC Lugs
Type
Threaded Stud Transformer Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.9500 L
Package Weight (Metric)
0.4310 kg
