ABB - Installation Products PAE3939-9-B3 - Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 397.5 ACSR-3/0 str, 2/0-6 AR Tap: 397.5 ACSR-3/0 str, 2/0-6 AR

ABB Installation Products PAE3939-9-B3 Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 397.5…

UPC: 783786806294


Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

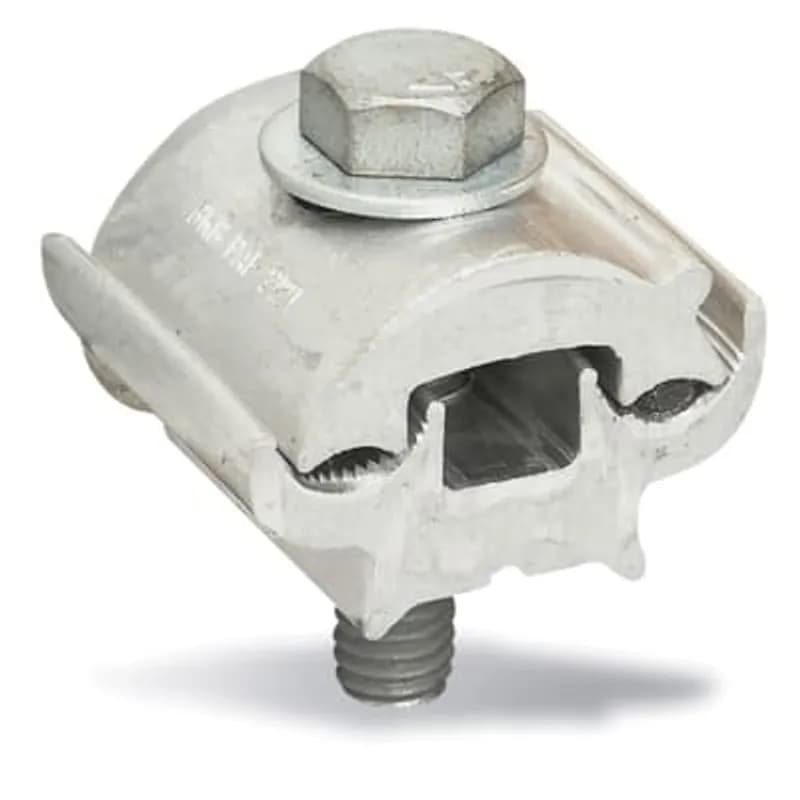

The ABB PAE3939-9-B3 Aluminum Type PAE Parallel Groove Clamp is an extruded aluminum clamp designed for parallel conductor connections in overhead power distribution systems. This clamp accommodates a main conductor range from 397.5 kcmil ACSR to 3/0 AWG and a tap conductor range from 397.5 kcmil ACSR to 2/0-6 AWG, making it suitable for medium-voltage distribution applications where reliable parallel tapping is required. The parallel groove design ensures secure mechanical and electrical contact, reducing the risk of loosening under vibration or thermal cycling. This clamp is commonly used in utility pole installations, substation connections, and overhead line taps where parallel conductor splicing is necessary. The extruded aluminum construction offers a balance of strength and lightweight properties, simplifying handling and installation in the field. The PAE3939-9-B3 is part of ABB’s Installation Products line, a trusted brand in electrical infrastructure solutions. For applications requiring parallel conductor connections with ACSR or all-aluminum conductors within the specified wire ranges, this clamp provides a reliable and field-proven solution.
  • Extruded aluminum construction for durability and corrosion resistance
  • Accommodates main conductor range: 397.5 kcmil ACSR to 3/0 AWG
  • Accommodates tap conductor range: 397.5 kcmil ACSR to 2/0-6 AWG
  • Parallel groove design for secure mechanical and electrical contact
  • Suitable for overhead power distribution and substation applications

Specifications

Package Dimensions (L x W x H)
8.25 IN x 7.13 IN x 6.25 IN
Package Dimensions (L x W x H)
20.955 cm x 18.1102 cm x 15.875 cm
Package Weight (Imperial)
0.8900 L
Package Weight (Metric)
0.4040 kg
U-Type Die 500Cu
