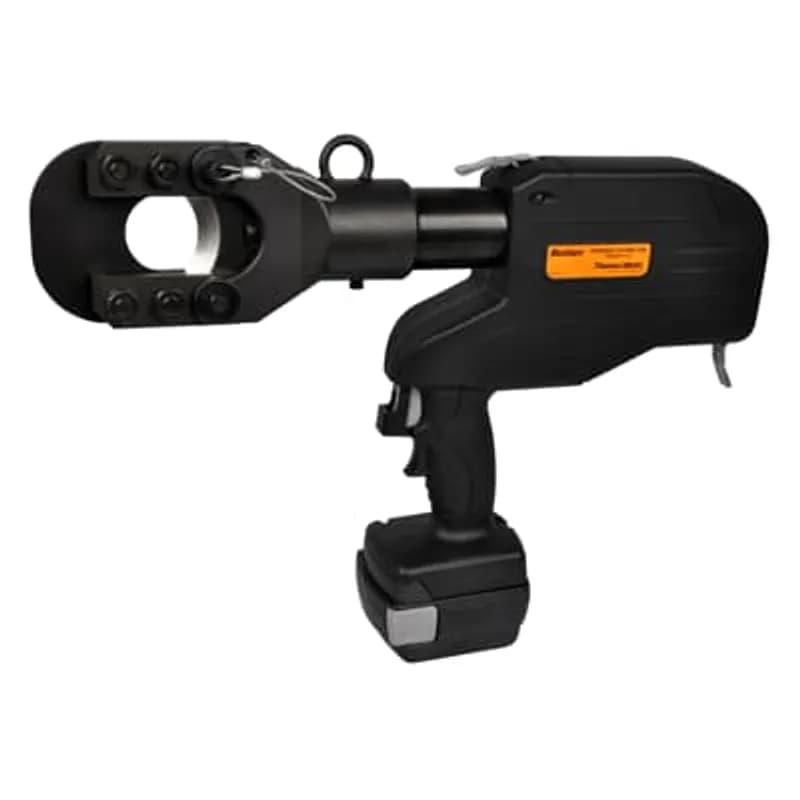

ABB Installation Products TBM58PCTS-LI Lithium-Ion Battery Powered Cutting Tool for Cutting Up to 1 1/2 inch O.D. Copper…
UPC: 783786529698
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 14.4V lithium-ion battery-powered hydraulic cutting tool
- Cuts copper, aluminum, and ASCR conductors up to 1.5" O.D.
- Handles rebar and ground rods up to 5/8" diameter
- Cuts wire rope up to 3/4" diameter
- Compact 17.5 x 2.5 x 13" dimensions, 14.6 lbs with battery
- Rotating head for maximum flexibility in tight spaces
- Two-stage rapid advance ram with overload bypass protection
- Includes two battery cartridges, charger, and carrying case
Specifications
Battery Type | Lithium-Ion |
Cutting Capacity | 1/2 in |
Depth | 13 in , 330.2 mm |
Includes | Cutting Tool, 2 Battery Cartridges, Battery Charger, Carrying Case |
Length | 17.5 in |
Special Features | 14.4V lithium-ion battery offers lighter weight, longer run time, no memory effect, minimal discharge and rapid recharge |
Type | Battery Power Cutting Tool |
Width | 2.5 in , 63.5 mm |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 26.5000 L |
Package Weight (Metric) | 12.0200 kg |
TBM54CT-LI
Lithium-Ion Battery Powered Cutting tool for cutting up to 1000 kcmil Copper or 1500 kcmil Aluminum, not for ACSR. 16 x 4.5 x 5 inch. 14.4 VDC, 3.0 Ah. Designed for one-handed control of blade advancement and retractionTBM54CTS-LI
Lithium-Ion Battery Powered Cutting tool for cutting 750 kcmil Copper, 1500 kcmil Aluminum, 636 kcmil ASCR. 16 x 4.5 x 5 inch, 5.8 pounds with Battery.Frequently Asked Questions
What materials can the TBM58PCTS-LI tool cut?
The TBM58PCTS-LI is designed for cutting copper cable, aluminum cable, ACSR cable, ground rod, rebar, and wire rope.
What is the maximum cutting capacity for different materials?
The tool can cut 3/4 in wire rope, 5/8 in rebar, 5/8 in ground rod, 1 1/2 in ACSR, and 1 1/2 in Cu/Al cable.
What is the input voltage for the battery charger?
The battery charger requires a 120V-240V AC input.
What are the specifications of the battery?
The tool uses a 14.4V, 3.0 Ah, Lithium-ion battery.
What are the dimensions of the TBM58PCTS-LI tool?
The dimensions of the cutting tool are 17.5 inches L x 2.5 inches W x 13 inches H.
What is the weight of the cutting tool with its battery?
The TBM58PCTS-LI cutting tool weighs 14.6 lbs when equipped with its battery.
What items are included in the TBM58PCTS-LI tool kit?
The tool kit includes the cutting tool, two battery cartridges, a battery charger, operation instructions, and a carrying case.
What is the motor voltage of the tool?
The cutting tool is equipped with a 14.4V DC motor.
What safety features does the cutting tool have?
It features overload bypass protection that activates if the material exceeds the cutter's capacity. It also has a two-stage rapid advance ram for reduced cycles.
What safety features does the cutting tool have?
It features overload bypass protection that activates if the material exceeds the cutter's capacity. It also has a two-stage rapid advance ram for reduced cycles.
How to Install and Operate the TBM58PCTS-LI Battery Charger
Guide for setting up and using the TBM58PCTS-LI battery charger to charge compatible battery packs.
Estimated time: 1h
Tools needed:
Screwdriver, Qualified electrician (if outlet needs modification)
Supplies needed:
TBM58PCTS-LI Battery Charger, AC Power Cord, Thomas & Betts 144-BAT-LI battery pack
- Prepare the Power Outlet
Ensure you have a properly grounded three-prong outlet. If only a two-prong outlet is available, use a temporary adapter with a grounding pin, but have a qualified electrician install a proper outlet as soon as possible. WARNING: Ensure the outlet box is grounded before using an adapter. If unsure, have it checked by a qualified electrician.
- Connect the Power Cord
Connect the AC power cord to the TBM58PCTS-LI battery charger and plug it into the prepared AC outlet. The indicator lamp should blink red, indicating stand-by mode. WARNING: Never alter an AC cord or its plug. An improper connection can cause electric shock. The charger must be grounded.
- Prepare the Battery
Ensure the battery pack is at room temperature (68°F -77°F or 20°C - 25°C). CAUTION: Do not charge a battery that has been stored below 32°F (0°C). Allow it to warm up to room temperature before charging.
- Insert the Battery
Insert the Thomas & Betts 144-BAT-LI battery pack into the TBM58PCTS-LI charger. The charging system will begin, and the indicator lamp should turn solid green.
- Monitor Charging Status
Observe the indicator lamp for charging status: SOLID GREEN (charging), RAPID BLINKING GREEN (80% complete), SOLID ORANGE (100% complete). If the lamp lights red, the battery temperature is too high or low; remove and allow it to reach room temperature. If the lamp blinks red rapidly, the battery is defective and must be replaced.
- Verify Completion
Once the indicator lamp turns solid orange, the battery is fully charged. A charged battery can be stored in the charger indefinitely.
