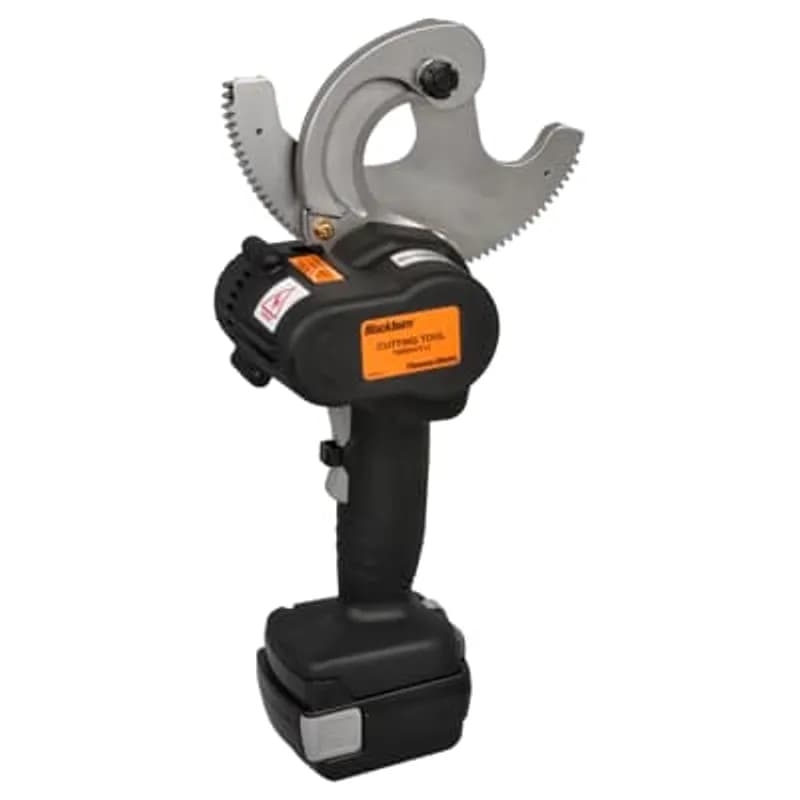

ABB - Installation Products TBM54CTS-LI - Lithium-Ion Battery Powered Cutting tool for cutting 750 kcmil Copper, 1500 kcmil Aluminum, 636 kcmil ASCR. 16 x 4.5 x 5 inch, 5.8 pounds with Battery.
More images

ABB Installation Products TBM54CTS-LI Lithium-Ion Battery Powered Cutting tool for cutting 750 kcmil Copper, 1500 kcmil…

UPC: 783786529667


Documents & Media
BrochureInstallation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB TBM54CTS-LI is a high-capacity, lithium-ion battery-powered cutting tool engineered for precision termination of large-gauge conductors. This tool delivers 6 tons of parallel-action crimping force, enabling clean cuts through copper conductors up to 750 kcmil, aluminum conductors up to 1500 kcmil, and 636 kcmil ASCR (Aluminum Conductor Steel Reinforced). Designed for electrical contractors, utility workers, and maintenance professionals, the TBM54CTS-LI combines portability with robust performance, weighing just 5.8 pounds (including battery) and measuring 16 x 4.5 x 5 inches. Its rotating 180° head and integrated LED work lights provide exceptional maneuverability in tight spaces, while the rapid-advance ram feature reduces cycle times for increased productivity. The tool accepts W-style dies and is compatible with Makita® LXT® 18V lithium-ion batteries, ensuring compatibility with existing tool platforms. With overload bypass protection, the TBM54CTS-LI automatically disengages if the material exceeds its capacity, preventing damage and enhancing safety. Ideal for field applications requiring reliable, high-force cutting and crimping, this tool minimizes conductor deformation and ensures proper fit for subsequent terminations. The TBM54CTS-LI is part of ABB’s Installation Products line, delivering durable, field-ready performance for demanding electrical and utility work.
  • Cuts copper up to 750 kcmil, aluminum up to 1500 kcmil, and 636 kcmil ASCR
  • 6-ton parallel-action crimping force with rotating 180° head for maneuverability
  • Integrated LED work lights and rapid-advance ram for reduced cycle times
  • Weighs 5.8 lbs (with battery) and measures 16 x 4.5 x 5 inches
  • Compatible with Makita® LXT® 18V lithium-ion batteries and W-style dies

Specifications

Battery Type
Lithium-Ion
Cutting Capacity
CU 750 kcmil , AL 1000 kcmil
Depth
5 in , 127 mm
Includes
Cutting Tool, 2 Battery Cartridges, Battery Charger, Carrying Case
Length
16 in
Series
TBM54CTS-LI
Size
16 x 4.5 x 5 inch
Special Features
14.4V lithium-ion battery offers lighter weight, longer run time, no memory effect, minimal discharge and rapid recharge
Type
Battery Power Cutting Tool
Width
4.5 in , 114.3 mm
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
24.1200 L
Package Weight (Metric)
10.9410 kg
PowerTap Cleaning Tool

PT-CLEANING TOOL

PowerTap Cleaning Tool
Lithium-Ion Battery Powered Cutting Tool for Cutting Up to 1 1/2 inch O.D. Copper, Aluminum and ASCR. Cuts Rebar and Ground Rod Up to 5/8 inch and Wire Rope Up to 3/4 inch. 17.5 x 2.5 x 13 inch. Weight 14.6 pounds with Battery

TBM58PCTS-LI

Lithium-Ion Battery Powered Cutting Tool for Cutting Up to 1 1/2 inch O.D. Copper, Aluminum and ASCR. Cuts Rebar and Ground Rod Up to 5/8 inch and Wire Rope Up to 3/4 inch. 17.5 x 2.5 x 13 inch. Weight 14.6 pounds with Battery

Frequently Asked Questions

What is the copper cutting capacity of TBM54CTS-LI?

The TBM54CTS-LI cutter can cut up to 750 kcmil copper.

What is the weight of the TBM54CTS-LI cutter?

The TBM54CTS-LI cutter weighs 5.8 lbs. with the battery installed.

What are the dimensions of the TBM54CTS-LI cutter?

The TBM54CTS-LI cutter measures 16 inches L x 4.5 inches W x 5 inches H.

What is the ACSR cutting capacity of TBM54CTS-LI?

The TBM54CTS-LI cutter can cut up to 636 kcmil ACSR.

What is the aluminum cutting capacity of TBM54CTS-LI?

The TBM54CTS-LI cutter can cut up to 1500 kcmil aluminum.

What are the dimensions of the TBM54CTS-LI cutter?

The TBM54CTS-LI cutter measures 16 inches L x 4.5 inches W x 5 inches H.

What is the weight of the TBM54CTS-LI cutter?

The TBM54CTS-LI cutter weighs 5.8 lbs. with the battery installed.

What is the copper cutting capacity of TBM54CTS-LI?

The TBM54CTS-LI cutter can cut up to 750 kcmil copper.

What is the ACSR cutting capacity of TBM54CTS-LI?

The TBM54CTS-LI cutter can cut up to 636 kcmil ACSR.

What is the aluminum cutting capacity of TBM54CTS-LI?

The TBM54CTS-LI cutter can cut up to 1500 kcmil aluminum.

How to Operate and Maintain the TBM54CTS-LI Cutting Tool

This guide provides instructions for charging, attaching the battery, and safely operating the TBM54CTS-LI cutting tool, along with essential maintenance tips to ensure optimal performance and longevity.

Estimated time: 45m

Tools needed:

144-CHR-LI Charger, Soft soaped cloth, Solvents

Supplies needed:

Power Cord

  1. Charge the Battery Pack

    Connect the power cord to the 144-CHR-LI Charger and then to an AC outlet. The LED Lamp will blink red (STAND BY). Firmly insert the 144-BAT-LI Battery into the charger; the LED Lamp will light green (CHARGING). Allow approximately 45 minutes for a full charge (100% capacity), indicated by the LED Lamp lighting orange (COMPLETION). WARNING: Do not short-circuit the charger contacts. Do not use voltages over 260V. Do not power the charger with a portable generator.

  2. Attach the Battery Pack

    Slide the charged 144-BAT-LI Battery into the base of the TBM54CTS-LI Cutting Tool until it stops and the latches on both sides engage. Gently pull on the battery without pressing the latches to ensure it is securely in place before operation.

  3. Cut a Cable

    First, open the Moving Blade by pressing the Switch Lock and then the Reverse mode switch until the Moving Blade disengages. Place the cable to be cut onto the Stationary Blade, then manually close the Moving Blade around the cable so its gear teeth engage the drive mechanism. To cut, press the Switch Lock and then the Forward mode switch, keeping it pressed until the cable is completely cut. WARNING: Keep fingers and other body parts away from cutting blades and moving parts. NEVER attempt to cut a "hot" line.

  4. Maintain and Store the Tool

    Always remove the battery pack from the unit before performing any maintenance. Clean the plastic housing with a soft soaped cloth. Keep the cutting blades clean and free of debris; solvents can be used on the blades, but not on the plastic body. Lubricate moving parts regularly to ensure smooth operation. Store the tool in a cool, dry area. If the tool has been stored below 25 degrees F (-5 degrees C), allow it to return to room temperature for at least 1 hour before use.
