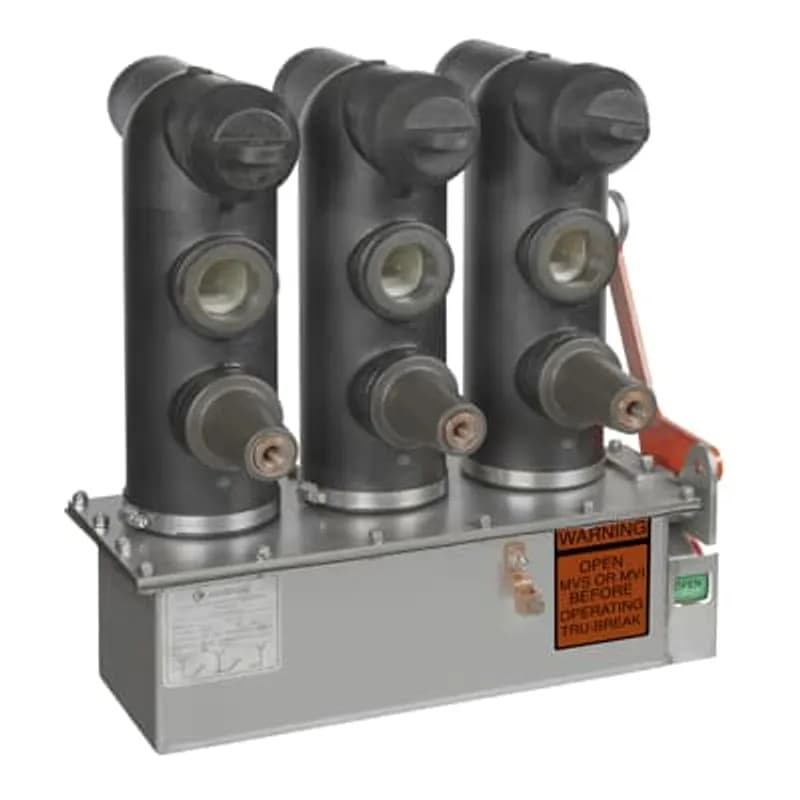

ABB - Installation Products TB15-20-6-R-I-AC - TRU-BREAK Interlock Linkage Kit for MVI, Nominal Voltage: 15kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amps, Handle Position: Right, Mating Device: MVI3, Electrical Interlock: AC Interlock

ABB Installation Products TB15-20-6-R-I-AC TRU-BREAK Interlock Linkage Kit for MVI, Nominal Voltage: 15kV, Withstand Current: 20kA…

UPC: 075114379755


Documents & Media
BrochureManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB TRU-BREAK Interlock Linkage Kit, SKU TB15-20-6-R-I-AC, is a critical safety and operational component designed for medium voltage switchgear systems. This kit is specifically engineered for use with ABB MVI3 mating devices, ensuring seamless integration and reliable performance in medium voltage distribution applications. The kit features a nominal voltage rating of 15kV, making it suitable for standard medium voltage systems. With a withstand current rating of 20kA (SYM), it provides robust protection against short-circuit conditions, while a continuous current rating of 600 Amps supports a wide range of power distribution needs. The right-hand handle position is optimized for ergonomic operation and proper installation alignment within MVI3 systems. A key feature is the AC Electrical Interlock, which enforces safe switching sequences by ensuring electrical devices are in a de-energized state before mechanical operations can proceed. This interlock mechanism significantly enhances operational safety, reduces the risk of equipment damage, and minimizes personnel hazards. The TRU-BREAK Interlock Linkage Kit is a proven solution for medium voltage switchgear applications, including industrial power distribution, commercial facilities, and utility substations. The UNSPSC code for this product is 39121115.
  • Designed for ABB MVI3 mating devices in medium voltage switchgear
  • Nominal voltage rating: 15kV for standard medium voltage systems
  • Withstand current rating: 20kA (SYM) for short-circuit protection
  • Continuous current rating: 600 Amps for power distribution applications
  • Right-hand handle position with AC Electrical Interlock for safety
  • Handle Position: Right
  • Mating Device: MVI3
  • Electrical Interlock: AC Interlock

Specifications

Amperage Rating
600A
Current Rating
600 A
Series
Tru-Break
Special Features
Right Handle Position
Type
Interlock Linkage Kit
Voltage Rating
15kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
Tru-Break Interlock Linkage Kit for MVI, Nominal Voltage: 15kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amp, Handle Position: Right, Mating Device: MVI3, Electrical Interlock: None

TB15-20-6-R-I-N

Tru-Break Interlock Linkage Kit for MVI, Nominal Voltage: 15kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amp, Handle Position: Right, Mating Device: MVI3, Electrical Interlock: None
Tru-Break Interlock Linkage Kit for MVS, Nominal Voltage: 15kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amp, Handle Position: Right, Mating Device: MVS3, Electrical Interlock: DC

TB15-20-6-R-S-DC

Tru-Break Interlock Linkage Kit for MVS, Nominal Voltage: 15kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amp, Handle Position: Right, Mating Device: MVS3, Electrical Interlock: DC
Tru-Break for Single Phase Switch, 27kV/20kA, MVS1 Compatible, No Motor, includes Tru-Break RetroFit Kit for MVS1. 27 kV, Single Phase Tru-Break Retrofit, Submersible, Corrosion Resistant, Fully Shielded, Temperature range -40 to +65 Degrees C. 28.8 inch tall x 19.5 inch deep. Indicator - Red/Closed

TB1-27-20-6-R-S-N

Tru-Break for Single Phase Switch, 27kV/20kA, MVS1 Compatible, No Motor, includes Tru-Break RetroFit Kit for MVS1. 27 kV, Single Phase Tru-Break Retrofit, Submersible, Corrosion Resistant, Fully Shielded, Temperature range -40 to +65 Degrees C. 28.8 inch tall x 19.5 inch deep. Indicator - Red/Closed
Tru-Break, Single-Phase, Retrofit, 15kV/20kA, 600 Amp Bushing, Right Handle Position, MVI1 Compatible, No Motor. Construction: Submersible, Corrosion Resistant, Fully Shielded. Ambient Temperature Range -40 to +65 Degrees C. IEEE C37.74, IEEE 386. Included items: Ground Cable, Linkage Kit, Mounting Kit, Interrupter Handle, Interrupter Locking Arm, Insulating Plug with Cap and Stud.

TB1-15-20-6-R-I-N

Tru-Break, Single-Phase, Retrofit, 15kV/20kA, 600 Amp Bushing, Right Handle Position, MVI1 Compatible, No Motor. Construction: Submersible, Corrosion Resistant, Fully Shielded. Ambient Temperature Range -40 to +65 Degrees C. IEEE C37.74, IEEE 386. Included items: Ground Cable, Linkage Kit, Mounting Kit, Interrupter Handle, Interrupter Locking Arm, Insulating Plug with Cap and Stud.
Tru-Break, Single-Phase, Retrofit, 27kV/12.5kA, 600 Amp Bushing, Right Handle Position, MVI1 Compatible, No Motor. Construction: Submersible, Corrosion Resistant, Fully Shielded. Ambient Temperature Range -40 to +65 Degrees C. IEEE C37.74, IEEE 386. Included items: Ground Cable, Linkage Kit, Mounting Kit, Interrupter Handle, Interrupter Locking Arm, Insulating Plug with Cap and Stud.

TB1-27-12-6-R-I-N

Tru-Break, Single-Phase, Retrofit, 27kV/12.5kA, 600 Amp Bushing, Right Handle Position, MVI1 Compatible, No Motor. Construction: Submersible, Corrosion Resistant, Fully Shielded. Ambient Temperature Range -40 to +65 Degrees C. IEEE C37.74, IEEE 386. Included items: Ground Cable, Linkage Kit, Mounting Kit, Interrupter Handle, Interrupter Locking Arm, Insulating Plug with Cap and Stud.
Tru-Break Interlock Linkage Kit for MVI, Nominal Voltage: 15kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amps, Handle Position: Right, Mating Device: MVI3, Electrical Interlock: DC

TB15-20-6-R-I-DC

Tru-Break Interlock Linkage Kit for MVI, Nominal Voltage: 15kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amps, Handle Position: Right, Mating Device: MVI3, Electrical Interlock: DC
Tru-Break Interlock Linkage Kit for MVI, Nominal Voltage: 27kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amps, Handle Position: Right, Mating Device: MVI3, Electrical Interlock : None, Spanish Labels and Instructions

TB27-20-6-R-I-N-S

Tru-Break Interlock Linkage Kit for MVI, Nominal Voltage: 27kV, Withstand Current: 20kA (SYM), Continuous Current: 600 Amps, Handle Position: Right, Mating Device: MVI3, Electrical Interlock : None, Spanish Labels and Instructions
Tru-Break Module, 27 kV/20 kA, 125 KV BIL, 50/60 Hz, MVS3 Compatible, No Electronic Interlock, No Motor, 600 Amp Interfaces, Included: (1) Ground Connector, (1) Ground Cable, (1) Linkage Kit, (1) Mounting Clips Kit, (1) Switch Handle, (3) Basic Insulating Plug with Caps, (3) Studs. Depth 21 inch, Width 20-1/4 inch, Height 28 inch approx. Temperature Range -40 to +65 Decrees C. Construction Submersible, Corrosion Resistant, Fully Shielded. Meets Standards IEEE C37.74, IEEE 386.

TB27-20-6-R-S-N

Tru-Break Module, 27 kV/20 kA, 125 KV BIL, 50/60 Hz, MVS3 Compatible, No Electronic Interlock, No Motor, 600 Amp Interfaces, Included: (1) Ground Connector, (1) Ground Cable, (1) Linkage Kit, (1) Mounting Clips Kit, (1) Switch Handle, (3) Basic Insulating Plug with Caps, (3) Studs. Depth 21 inch, Width 20-1/4 inch, Height 28 inch approx. Temperature Range -40 to +65 Decrees C. Construction Submersible, Corrosion Resistant, Fully Shielded. Meets Standards IEEE C37.74, IEEE 386.

Frequently Asked Questions

What are the dimensions of the single-phase module?

The single-phase module is 20 inches high, 6.44 inches wide, and 11.27 inches deep, weighing 25 lb.

What are the dimensions of the three-phase module?

The three-phase module is 20 inches high, 20.28 inches wide, and 16.12 inches deep, weighing 97 lb.

What is the impulse voltage withstand rating?

It is capable of withstanding a full 125 kV basic insulation level (BIL) impulse voltage without needing vacuum bottle support.

What are the voltage and current ratings?

The module is rated for 15–29.3 kV systems with a continuous load current of 800 A and a short circuit withstand current of 20 kA.

Can the module be retrofitted to existing switchgear?

Yes, retrofittable options are available for existing Elastimold three-phase and single-phase MVS switches or MVI interrupters.

Is the module maintenance-free?

Yes, the module is considered maintenance-free because it contains no oil or gas to monitor or maintain.

Is the module maintenance-free?

Yes, the module is considered maintenance-free because it contains no oil or gas to monitor or maintain.

What are the dimensions of the single-phase module?

The single-phase module is 20 inches high, 6.44 inches wide, and 11.27 inches deep, weighing 25 lb.

What are the dimensions of the three-phase module?

The three-phase module is 20 inches high, 20.28 inches wide, and 16.12 inches deep, weighing 97 lb.

Can the module be retrofitted to existing switchgear?

Yes, retrofittable options are available for existing Elastimold three-phase and single-phase MVS switches or MVI interrupters.
