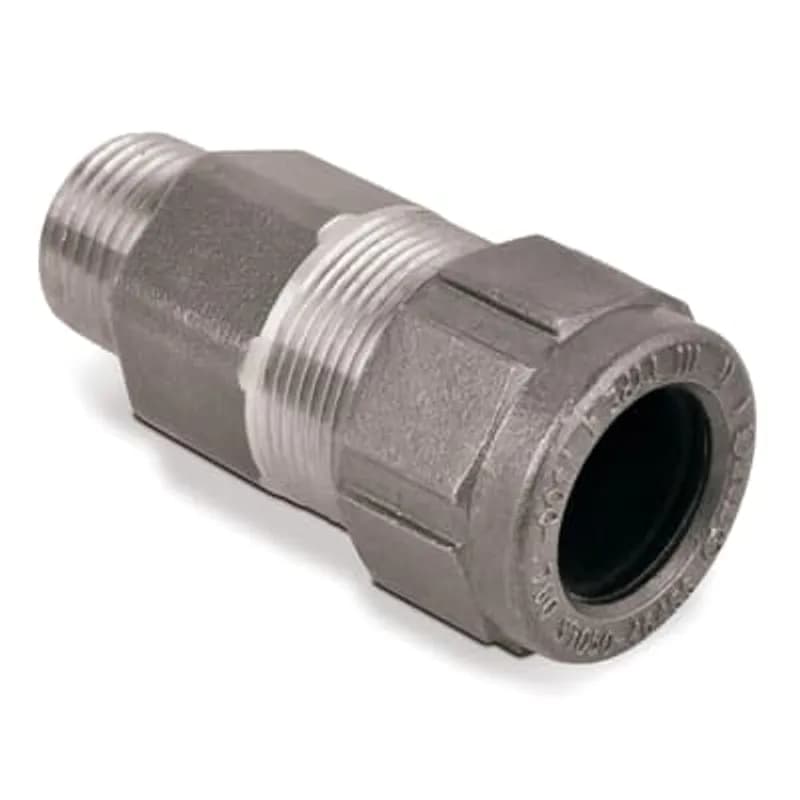

ABB - Installation Products ST075-468SS - Star Teck stainless steel jacketed cable fitting. Hub size of 3/4 inch. Range over jacket from 1.025 - 1.205 inch.

ABB Installation Products ST075-468SS Star Teck stainless steel jacketed cable fitting. Hub size of 3/4 inch. Range over…

UPC: 786210571331


Documents & Media
Installation InstructionsSpecification SheetVideo ClipManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB Star Teck ST075-468SS stainless steel jacketed cable fitting delivers secure, reliable terminations for Teck and ACWU cables in industrial environments. Designed for hub sizes of 3/4 inch NPT, this fitting accommodates cable jacket diameters from 1.025 to 1.205 inches, ensuring compatibility with a wide range of armored and metal-clad cables. Its stainless steel construction provides superior corrosion resistance and non-magnetic properties, making it ideal for harsh, corrosive, or hazardous locations where exposure to moisture, chemicals, or extreme conditions is a concern. Key features include a splined gland for enhanced grip, a robust stainless steel retaining ring for dependable service, and a power-grip grounding ring that ensures 360° long-term contact with the cable armor. The tapered bushing design eliminates cupping and water ingress in vertical installations, providing a watertight seal. The low-profile gland nut is engineered for easy installation in tight spaces, featuring screwdriver grooves and wrench flats for tool-free tightening. Its reusable design and funnel entry simplify cable insertion, reducing labor time and streamlining termination processes. This fitting is suitable for Class 1 Division 2, Class II Division 2, and Class III hazardous locations, offering a dependable solution for power and control cable management in industrial, commercial, and utility applications. The ST075-468SS is part of the proven Star Teck series, known for its durability and performance in demanding environments.
  • A natural extension of the 10464 Series, the first STAR TECK cable fitting incorporated input from end-users in industry and was the first teck fitting to use a pop-on design requiring no disassembly.
  • Other unique features included a splined gland and gripping features.
  • The original STAR TECK fitting for teck and ACWU cable set the standard for ease of installation, quality engineering and safe, reliable terminations in challenging industrial environments.
  • Power-grip grounding ring ensures 360° long-term contact with cable armor
  • Tapered bushing design prevents water ingress in vertical installations

Specifications

Color
Silver
Material
Stainless Steel
Size
3/4 Inch
Size
3/4 Inch Hub
Standard
UL E38947, CSA 23086, CSA 4484
Type
Teck Cable Fittings
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.7200 L
Package Weight (Metric)
0.3270 kg
Single Piece Conduit Fitting for Food and Beverage, Straight, Nominal Conduit Size 25mm, 3/4 Inch NPT Thread, 316 Stainless Steel

SPL25/075/SAM

Single Piece Conduit Fitting for Food and Beverage, Straight, Nominal Conduit Size 25mm, 3/4 Inch NPT Thread, 316 Stainless Steel
KIT GREASE FITTING WITH EXTENSION

GF 280 ODE

KIT GREASE FITTING WITH EXTENSION
Entrance Cap, Set Screw, One Screw, Aluminum, Size 2 Inch

1256-S

Entrance Cap, Set Screw, One Screw, Aluminum, Size 2 Inch
Star Teck steel jacketed fitting. Hub size of 3/4 inch & Range over jacket from 1.025 - 1.205 inch.

ST075-468S

Star Teck steel jacketed fitting. Hub size of 3/4 inch & Range over jacket from 1.025 - 1.205 inch.
Star Teck aluminum jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 1.350 - 1.625 inch.

ST125-470

Star Teck aluminum jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 1.350 - 1.625 inch.
Star Teck steel jacketed fitting PVC coated. Hub size of 1-1/4 inch. Range over jacket from 1.350 - 1.625 inch.

ST125-470SPVC

Star Teck steel jacketed fitting PVC coated. Hub size of 1-1/4 inch. Range over jacket from 1.350 - 1.625 inch.
Star Teck steel jacketed fitting. Hub size of 1-1/4 inch. Range over jacket from 1.350 - 1.625 inch.

ST125-470S

Star Teck steel jacketed fitting. Hub size of 1-1/4 inch. Range over jacket from 1.350 - 1.625 inch.
Star Teck aluminum jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 1.600 - 1.875 inch.

ST125-471

Star Teck aluminum jacketed cable fitting. Hub size of 1-1/4 inch. Range over jacket from 1.600 - 1.875 inch.

Frequently Asked Questions

What NEMA type rating does ST075-468SS have?

The ST075-468SS, with its stainless steel body, has a Type 4X rating.

What is the NPT hub size for ST075-468SS?

The NPT hub size for the ST075-468SS cable connector is 3/4-14.

What is the cable jacket range for ST075-468SS?

The range over the cable jacket for ST075-468SS is 1.025 inches minimum to 1.205 inches maximum.

What is the armor range for ST075-468SS?

The range over the armor for ST075-468SS is 0.834 inches minimum to 1.125 inches maximum.

What is the minimum throat diameter for ST075-468SS?

The minimum throat diameter for the ST075-468SS connector is 0.814 inches.

What are the overall dimensions of ST075-468SS?

The overall length ("A") is 2.45 inches, and the dimension across corners ("B") is 2 3/32 inches.

What is the NPT thread length for ST075-468SS?

The NPT thread length ("C") for the ST075-468SS cable connector is 0.630 inches.

What materials are used in ST075-468SS?

The body and gland nut are stainless steel. Grounding and retaining rings are stainless steel, the bushing is silicone, and the O-ring is nitrile.

What type of bushing does ST075-468SS use?

The ST075-468SS uses a silicone bushing.

What is the O-ring material for ST075-468SS?

The O-ring material for the ST075-468SS is Nitrile.

How to Install the ST075-468SS Star Teck Cable Fitting

This guide provides step-by-step instructions for safely installing the ST075-468SS Star Teck cable fitting, including cable preparation and securing the connection to ensure an optimal seal. Installation must be performed by a qualified electrician.

Estimated time: 20m

Tools needed:

Hacksaw, Wire strippers, Wrench or Torque Wrench

Supplies needed:

ST075-468SS Cable Fitting, Armored Cable, Enclosure or Device

  1. Prepare for Installation and Select Fitting

    WARNING: Disconnect all power before beginning installation to prevent risk of electrical shock. Ensure the product is installed by a qualified electrician in accordance with national and local electrical codes. Select the appropriate ST075-468SS fitting to accommodate your enclosure and the armored cable being used.

  2. Prepare the Armored Cable

    Determine the working length of the conductor required inside the enclosure or device. Remove a portion of the cable's outer jacket to expose the armor. Using a hacksaw, cut the armor and trim the outer jacket to achieve the exposed armor strip length of 1-1/4 inches, as indicated in the product table. CAUTION: Do not nick or cut the conductor insulation during this process.

  3. Insert Cable into Fitting

    Feed the prepared armored cable through the gland nut opening of the ST075-468SS fitting. Push the cable until its armor firmly hits the internal end stop of the fitting.

  4. Secure the Cable Fitting

    Tighten the gland nut until you obtain an appropriate seal around the cable's outer jacket, or to the maximum torque of 1200 in-lbs. Ensure the bushing seals evenly around the cable's outer jacket and that the cable remains centered within the fitting to achieve an optimal and secure seal.
