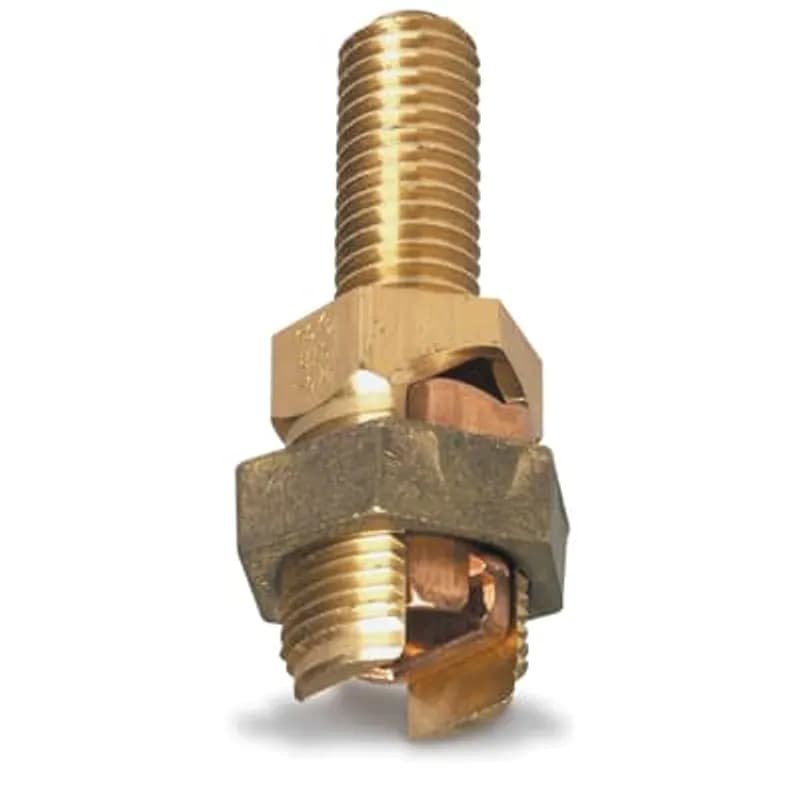

ABB - Installation Products SP3SL-WN - Long Stud Single Service Post Connectors for Conductors 3 - 10 Stranded, 2 - 10 Solid, Stud Size 3/8 - 16 x 1 1/8, with Nut and Washer
ABB - Installation Products

SP3SL-WN

UPC: 783786091898

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

ABB SP3SL-WN Long Stud Single Service Post Connectors provide a reliable mechanical and electrical connection for conductors in service entrance and distribution equipment. Designed for 3-10 AWG stranded or 2-10 AWG solid copper conductors, these connectors feature a 3/8-16 x 1 1/8 inch stud for secure attachment to bus bars or equipment terminals. The included nut and washer ensure proper torque and vibration resistance, meeting UL 486B standards for pressure wire connectors. These connectors are commonly used in commercial, industrial, and utility electrical panels where durable, long-lasting terminations are required. The extended stud length accommodates multiple conductors and provides clearance for installation tools. The single-hole design simplifies mounting while maintaining a low-profile profile in tight enclosures. ABB Installation Products, a trusted name in electrical infrastructure, manufactures the SP3SL-WN with consistent quality control to ensure reliable performance in service-rated applications. The connector’s construction supports both solid and stranded conductors, reducing the need for multiple part numbers in mixed installations. For service entrance equipment, meter sockets, and distribution panels requiring compliant, long-stud terminations, the SP3SL-WN delivers a standardized solution.
  • Fits 3-10 AWG stranded or 2-10 AWG solid conductors
  • 3/8-16 x 1 1/8 inch stud with nut and washer included
  • UL 486B compliant for pressure wire connectors
  • Single-hole design for simplified mounting
  • Suitable for service entrance and distribution equipment

Specifications

Conductor Material
Copper
Conductor Size
3 - 10 Str, 2 - 10 Sol
Series
SP3SL
Size
Stud Size 3/8 - 16 x 1 1/8
Type
Post Connector with Nut and Washer
Package Dimensions (L x W x H)
6.75 IN x 5.25 IN x 3.7 IN
Package Dimensions (L x W x H)
17.145 cm x 13.335 cm x 9.398 cm
Package Weight (Imperial)
0.1500 L
Package Weight (Metric)
0.0680 kg
