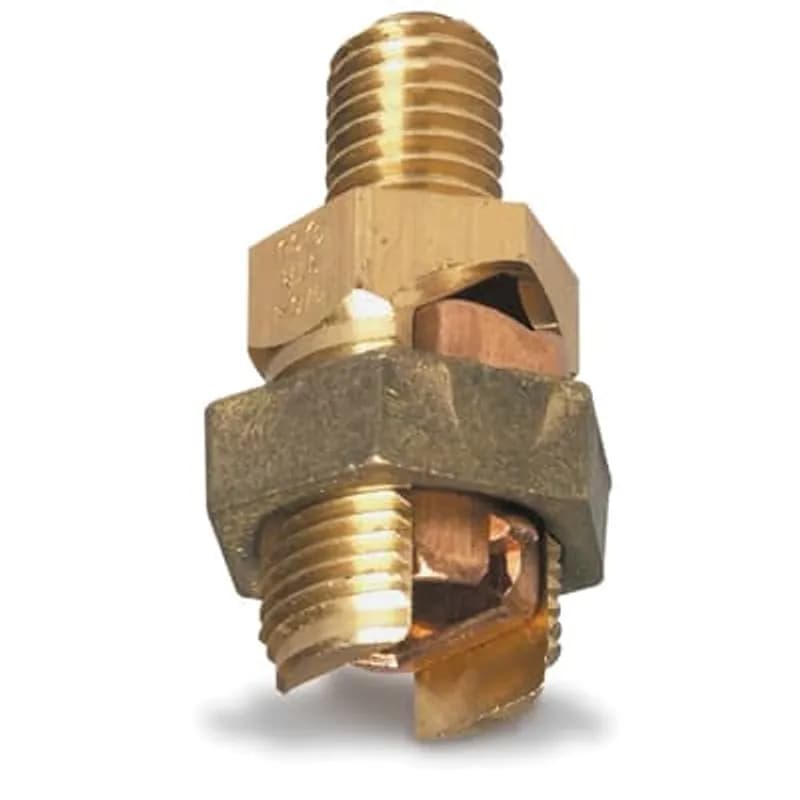

ABB - Installation Products SP3SS - Short Stud Single Service Post Connectors for Conductors 3 - 10 Stranded, 2 - 10 Solid, Stud Size 3/8 - 16 x 5/8
More images

ABB Installation Products SP3SS Short Stud Single Service Post Connectors for Conductors 3 - 10 Stranded, 2 - 10 Solid…

UPC: 783786121526

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SP3SS Short Stud Single Service Post Connector (SKU: SP3SS) is a precision-engineered electrical termination solution designed for secure, long-lasting connections in industrial power distribution and control systems. This connector accommodates stranded conductors from 3 AWG to 10 AWG and solid conductors from 2 AWG to 10 AWG, making it ideal for applications requiring reliable conductor sizing flexibility. The 3/8-16 x 5/8 stud provides a robust mounting point for secure electrical connections, ensuring consistent performance in demanding environments. Engineered by ABB - Installation Products, the SP3SS features a compact short stud design optimized for single service post applications where space efficiency and termination reliability are critical. Its construction supports efficient installation with standard tools, reducing labor time while maintaining electrical integrity. The connector's compatibility with both stranded and solid conductors eliminates the need for multiple part numbers, streamlining inventory management for maintenance teams and electricians. Key specifications include a conductor diameter range of 0.26 to 0.102 inches for stranded wires and 0.26 to 0.102 inches for solid wires, with a maximum conductor size of 25 mm². The 3/8-16 threaded stud ensures compatibility with standard hardware, while the single-service post design simplifies wiring configurations in panels, enclosures, and control cabinets. This connector is particularly well-suited for power distribution panels, motor control centers, and industrial machinery where secure terminations are essential for system reliability. The SP3SS is part of ABB's comprehensive service post connector family, offering a reliable solution for applications ranging from commercial electrical systems to heavy industrial installations.
  • Accommodates 3-10 AWG stranded conductors (max 25 mm²)
  • Supports 2-10 AWG solid conductors
  • 3/8-16 x 5/8 threaded stud for secure mounting
  • Compact short stud design for space-efficient installations
  • Compatible with standard tools for efficient installation

Specifications

Application
For copper to copper connections, for grounding of steel structures or transformers using one or two cables, for tapping one or two cables from bus bar
Conductor Material
Bronze
Connection Type
Service Post Connector
Insulation
No
Series
SP3SS
Size
Stud Size 3/8 - 16 x 5/8
Size
3/8 - 16 x 5/8
Special Features
Hex design bolts are machined from high-conductivity bronze alloy
Standard
UL E9809
Type
Mechanical Grounding
Package Dimensions (L x W x H)
6.75 IN x 5.25 IN x 3.63 IN
Package Dimensions (L x W x H)
17.145 cm x 13.335 cm x 9.2202 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
