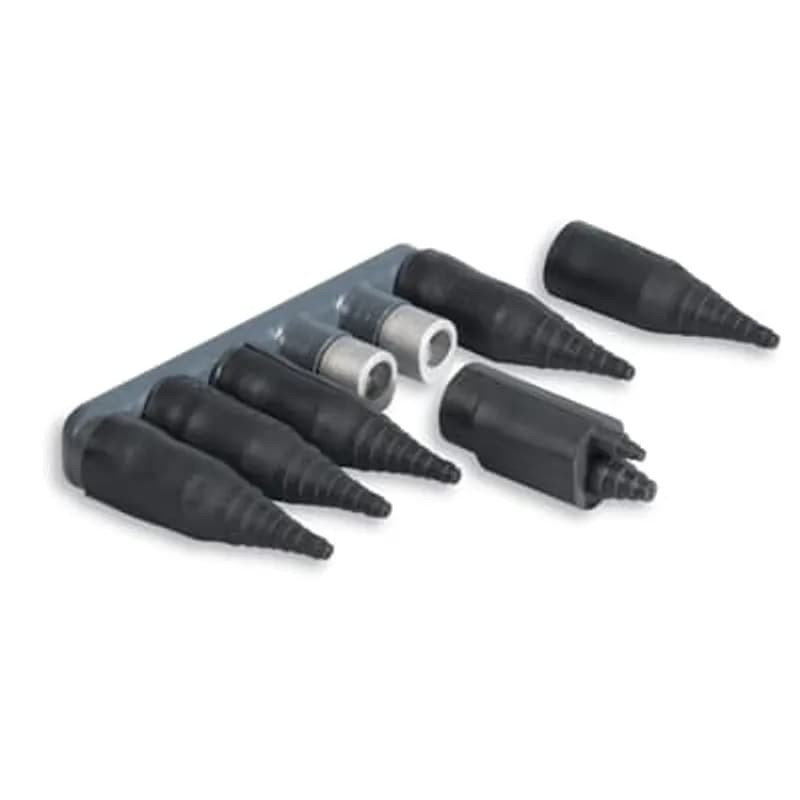

ABB - Installation Products SHC 6 CS - SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated, Black PVC insulated, cable range feeder outlet / StreetLight #6-350 kcmil, outlets 6, length 10.75 inch, Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets. Grooved Wire Ports.

ABB Installation Products SHC 6 CS SweetHeart FloodSeal Aluminum Mechanical Connectors with Streetlight option, dual rated…

UPC: 783786752058


Documents & Media
Installation InstructionsManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB SweetHeart FloodSeal Aluminum Mechanical Connector (SKU: SHC 6 CS) is engineered for reliable feeder outlet and streetlight cable connections. This dual-rated connector accommodates cable ranges from #6 to 350 kcmil, featuring six outlets for versatile distribution. Its 10.75-inch length ensures compatibility with standard installation practices. The connector is insulated with Black PVC, providing robust protection against environmental factors and electrical hazards. It includes tin-plated screws for enhanced conductivity and corrosion resistance, ensuring long-term performance. The integrated Flood Seal EPDM Rubber Rockets offer superior protection against water and dust ingress, making it suitable for outdoor and underground applications. Grooved wire ports are incorporated to improve grip and secure cable termination, minimizing the risk of slippage or poor electrical contact. This mechanical connector is ideal for utility, streetlight, and feeder distribution systems where durable, weatherproof connections are essential. Manufactured by ABB Installation Products, it meets industry standards for mechanical and electrical performance. The catalog specifies wire ranges for both service and feed cables, with specific conductor sizes indicated for optimal connection.
  • Dual-rated for feeder outlet and streetlight cable connections
  • Accommodates cable ranges from #6 to 350 kcmil
  • Six outlets for versatile distribution
  • Black PVC insulation for environmental and electrical protection
  • Flood Seal EPDM Rubber Rockets for water and dust ingress protection

Specifications

Application
Saving Outlet Space
Color
Black
Conductor Range
#6 to 350 kcmil
Connection
Mechanical
Connection Type
Mechanical Connector
Insulation
PVC Coating
Material
Aluminum
Material
Aluminum, PVC, EPDM Rubber
Material
Aluminum, PVC, EPDM Rubber, Tin Plated
Number of Conductors
6
Poles
6 Outlets
Series
SweetHeart FloodSeal
Size
10.75 inch
Size
#6-350 kcmil
Special Features
Oxide Inhibitor. Comes with Tin Plated Screws and Flood Seal EPDM Rubber Rockets. Grooved Wire Ports
Type
Insulated Multiport Bus Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
2.7300 L
Package Weight (Metric)
1.2380 kg
Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5

UH 5 R

Aluminum Flood-Seal Twin-Screw Mechanical Connectors for 350 kcmil series - one-way outlets, cable range 6-350, length 8 -7/8 inch, outlets 5
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 9-1/4 inch, boot no. SB 14, stud size 1, outlets 8, with Streetlight Outlet Option and Oxide Inhibitor

ABS 8350-1 SLC

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 9-1/4 inch, boot no. SB 14, stud size 1, outlets 8, with Streetlight Outlet Option and Oxide Inhibitor
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 9-1/2 in, boot no. SB 2160, stud size 5/8, outlets 8, with Street Light Outlet Option, Oxide Inhibitor

ABW 8350 SLC

Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, cable range 12-350, length 9-1/2 in, boot no. SB 2160, stud size 5/8, outlets 8, with Street Light Outlet Option, Oxide Inhibitor
Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, Cable range #12 to 350 kcmil, length 10-9/16 inches, Stud size 1 inch, outlets 8, with Street Light Outlet Option, includes Oxide Inhibitor and Tin Plated Screws. Dual Rated to Accept Aluminum or Copper Conductors. ANSI C119.4 Specifications.

ABW 8350-1 SLC

Aluminum Quick Disconnect Transformer Connectors - ABW In-line bar, Cable range #12 to 350 kcmil, length 10-9/16 inches, Stud size 1 inch, outlets 8, with Street Light Outlet Option, includes Oxide Inhibitor and Tin Plated Screws. Dual Rated to Accept Aluminum or Copper Conductors. ANSI C119.4 Specifications.
Aluminum Transformer Spade Connectors - ABT Double Set Screws Series - Double-Row Mounting Holes, conductor range 12-350, length 4-5/8 in, mounting holes 6, outlets 4

ABT 4350 DS

Aluminum Transformer Spade Connectors - ABT Double Set Screws Series - Double-Row Mounting Holes, conductor range 12-350, length 4-5/8 in, mounting holes 6, outlets 4
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-1/4 inch, boot no. SB 11, stud size 5/8, outlets 6, with Street Light Outlet Option and Oxide Inhibitor

ABS 6350 SLC

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-1/4 inch, boot no. SB 11, stud size 5/8, outlets 6, with Street Light Outlet Option and Oxide Inhibitor
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-1/4 inch, boot no. SB 11, stud size 1, outlets 6, with Street Light Outlet Option and Oxide Inhibitor

ABS 6350-1 SLC

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 12-350, length 7-1/4 inch, boot no. SB 11, stud size 1, outlets 6, with Street Light Outlet Option and Oxide Inhibitor
Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 7-13/16 inch, boot no. SB 2157d size 1, outlets 6, with Street Light Outlet Option

ABS 6500 SL

Aluminum Screw-On Transformer Connectors - ABS In-line, single-line bar, cable range 6-500, length 7-13/16 inch, boot no. SB 2157d size 1, outlets 6, with Street Light Outlet Option

How to Install the Sweetheart "FLOOD-SEAL"® Mechanical Connector CS 4197 ROCKET

This guide provides step-by-step instructions for installing the Sweetheart "FLOOD-SEAL"® Mechanical Connector CS 4197 ROCKET. Ensure installation is performed by trained personnel according to all applicable electrical codes and safety rules to prevent electric shock.

Estimated time: 30m

Tools needed:

Cutting tool, Wire strippers, Wire brush, Torque wrench (recommended), 5/16" Allen wrench, 3/8" drive ratchet with Allen adapter (alternative)

Supplies needed:

Silicone grease (included), Electrical compound

  1. Prepare Rocket/Cap Ring

    Identify the cable size being used. Cut the rocket/cap ring at the tip of the arrow to leave the correct wire range showing for your cable size.

  2. Prepare Insulating Sleeve

    Cut off the tip of the insulating sleeve at the arrow, ensuring the correct cable size is visible on the sleeve.

  3. Strip Cable Insulation

    Strip approximately 2 1/4 inches of insulation from the cable conductor. Penciling the edge of the insulation is recommended to ease installation, but not required.

  4. Clean and Prepare Conductor

    Thoroughly wire brush the bare conductor to break up surface oxides. Add electrical compound and brush it into the conductor strands.

  5. Apply Grease and Position Rocket

    Wipe the cable clean. Apply the silicone grease (included in each rocket) and slide the cut rocket over the prepared cable.

  6. Insert Conductor into Outlet Barrel

    Insert the prepared conductor into the outlet barrel, ensuring a maximum of 1/8 inch of bare conductor is showing.

  7. Position Rocket Sleeve

    Slide the rocket sleeve over the outlet and onto the PVC shoulder until the rocket butts against the connector bar.

  8. Tighten Setscrews to Torque

    Tighten the setscrews down on the conductor to the specified torque. For #12 to #2 wire, apply 120 in-lbs (10 ft-lbs). For 1/0 to 350 Kcmil wire, apply 360 in-lbs (30 ft-lbs). A torque wrench is recommended. If not available, use a 5/16" allen wrench or a 3/8" drive ratchet with an allen adapter. Do not use a "T" handle wrench or 1/2" drive.
