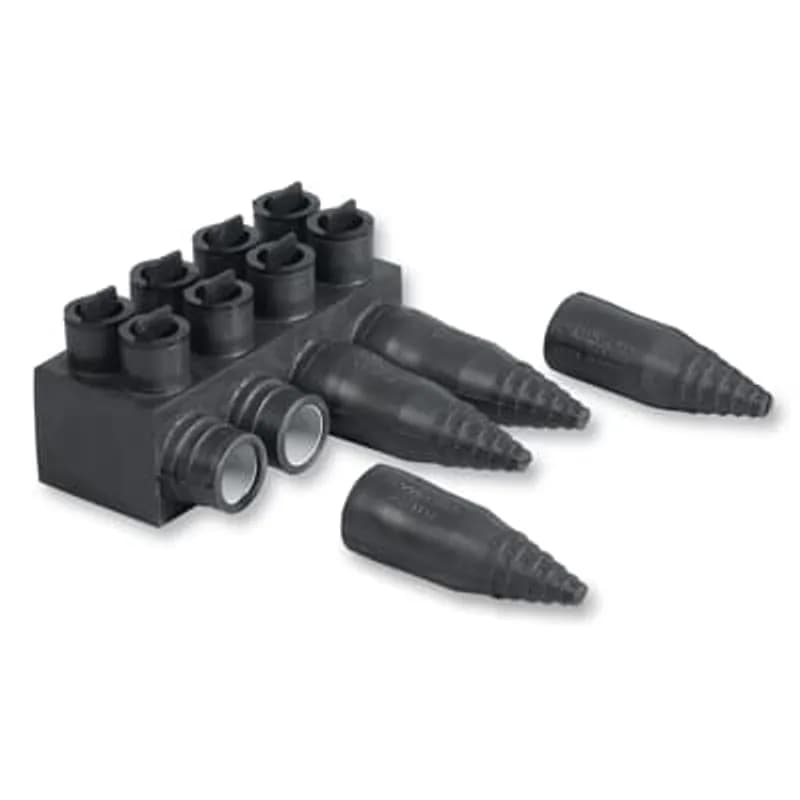

ABB - Installation Products RXM 6 - Aluminum Flood-Seal Multi-Port Connectors - RMX Series, Cable entry one side only, length 10-7/8 inch, outlets 6
ABB - Installation Products

RXM 6

UPC: 783786746910

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 12

Multiplier: 12

*Contact for lower quantities*

Overview

The ABB RMX Series Aluminum Flood-Seal Multi-Port Connector, SKU RXM 6, is engineered for reliable cable management in industrial settings. Constructed from durable aluminum, this connector features a Flood-Seal design, ensuring protection against environmental ingress. With a total length of 10-7/8 inches and six distinct outlets, it provides a structured solution for terminating multiple cables from a single entry point. The RMX Series is designed for applications where robust and secure electrical connections are paramount. This specific model, RXM 6, facilitates efficient cable distribution, minimizing clutter and enhancing safety. Its aluminum construction offers inherent corrosion resistance, making it suitable for various operational environments. The multi-port configuration streamlines installation processes, reducing labor and potential points of failure. Each of the six outlets is designed to accommodate standard industrial cabling, ensuring compatibility with existing infrastructure. This connector is ideal for use in power distribution panels, junction boxes, and control cabinets where organized and protected cable entry is required. The single-sided cable entry simplifies installation and maintenance, allowing for a clean and accessible setup. ABB's commitment to quality is evident in the robust design and material selection of the RMX Series connectors, providing a dependable solution for your electrical connectivity needs. The 6-pole configuration allows for the management of up to six individual conductors or cables, offering a compact and efficient termination point. Its 10-7/8 inch length provides ample space for secure connections and strain relief within the connector housing.
  • Durable Aluminum Construction
  • Flood-Seal Design for Environmental Protection
  • 10-7/8 Inch Length
  • 6-Pole Multi-Port Configuration
  • Single-Sided Cable Entry

Specifications

Application
Install in Direct-Burial, Handhole, Pedestal and Overhead Applications
Color
Black
Conductor Range
#2 SOL to 1000 kcmil
Connection
Mechanical
Insulation
yes
Material
Aluminum Connector, EPDM Rocket
Number of Conductors
6
Size
10-7/8 inch
Special Features
Flood Seal EPDM Insulating Rockets Field Tested in more tha 10 million Applications. 6061-T6 Aluminum Connector construction provides High Strength and High Conductivity. Dual Rated to accept a wide range of Copper or Aluminum Conductors, from #2 Solid to 1000 kcmil. Ball-bottom Screws support the widest conductor range and aid in breaking up Aluminum Oxide. EPSM Rubber Cap is easy to find, prevents accidental removal and can be easily removed with pliers. All Connectors are 100 percent Hi-Pot Tested at 4000 Volts for 60 seconds
Type
Flood Seal Multi Port Connector RXM Series
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
6.1800 L
Package Weight (Metric)
2.8030 kg
